Information Bus: Diagrams

Multiplex Control Inspection Connector:

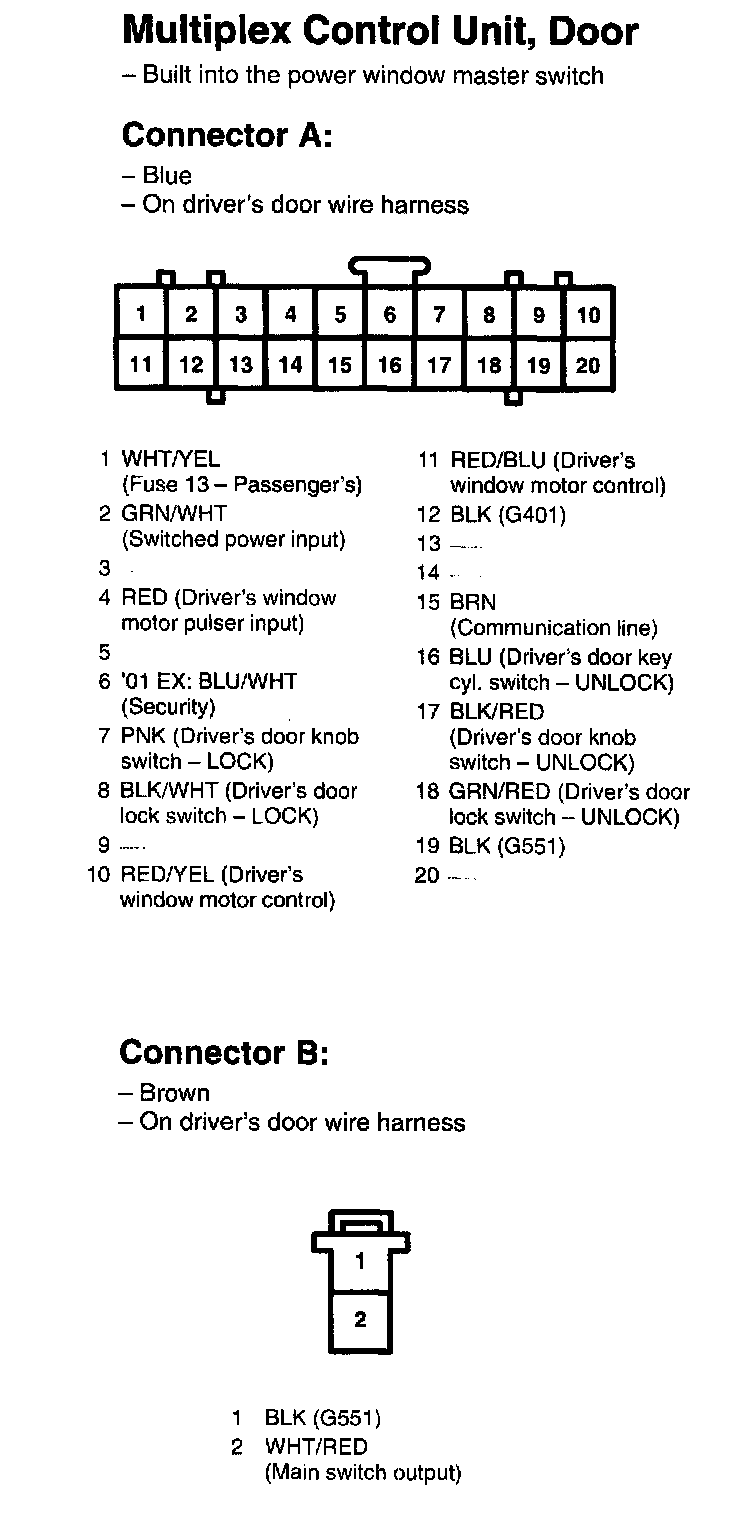

Multiplex Control Unit, Door Connectors A And B:

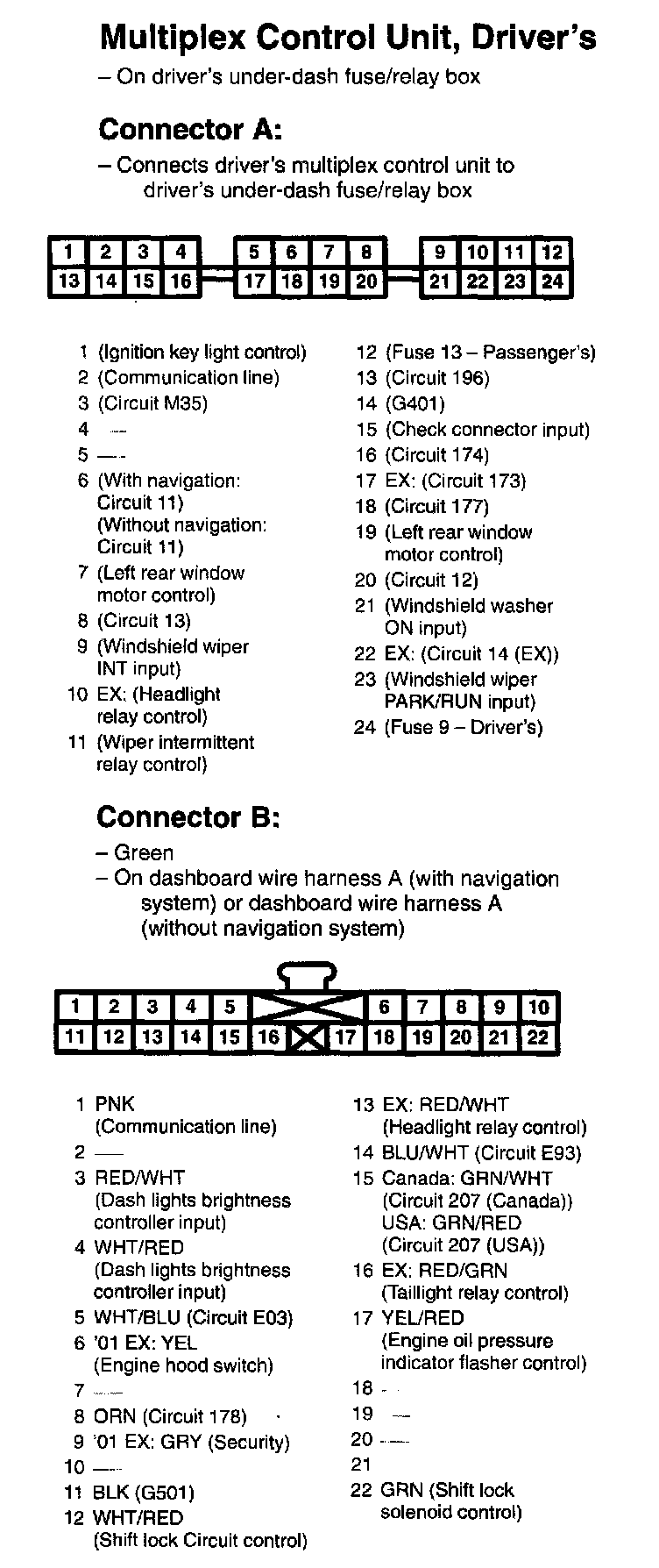

Multiplex Control Unit, Driver's Connectors A And B:

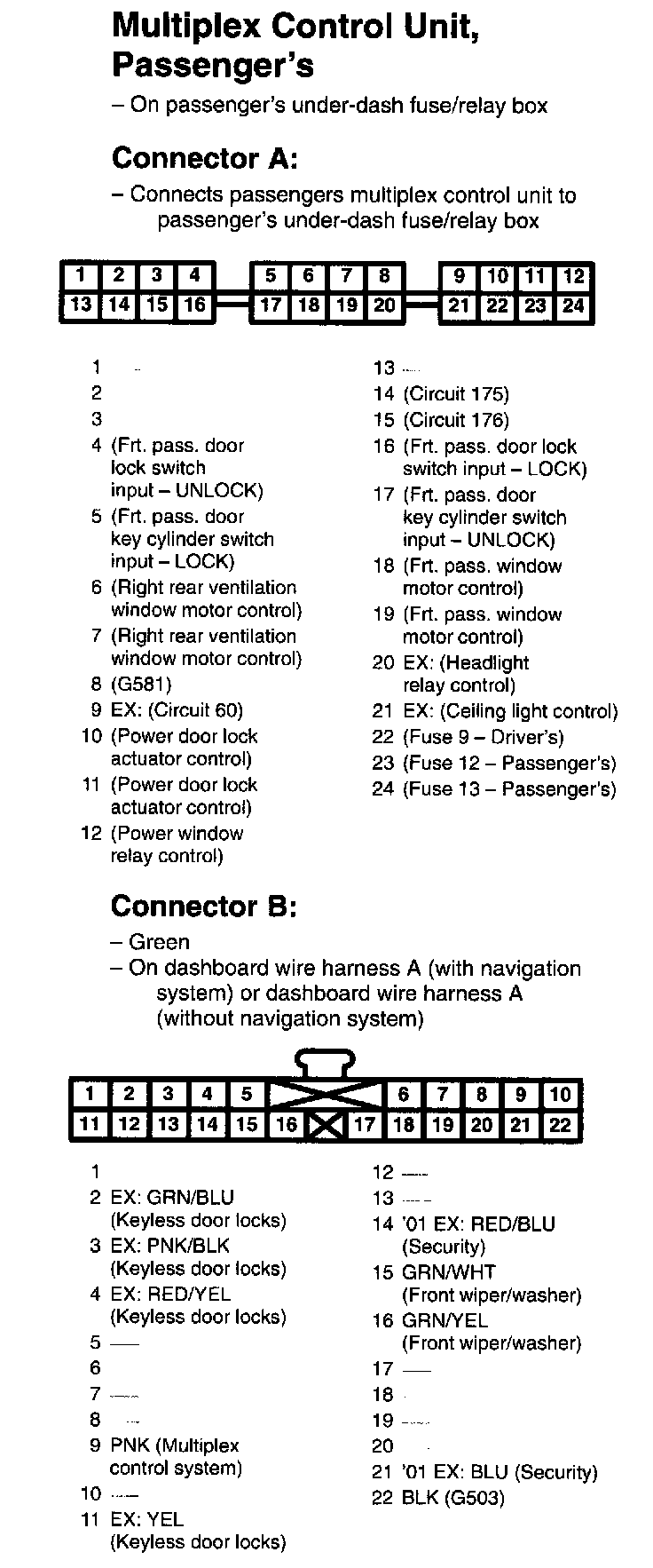

Multiplex Control Unit, Passenger's Connectors A And B:
