Locations
>>
Component Locations
Component Locations

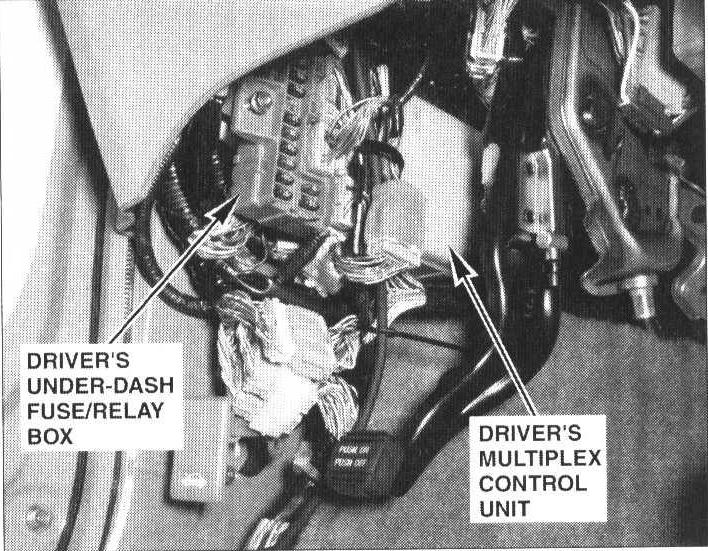

79. Below Left End of Dash:

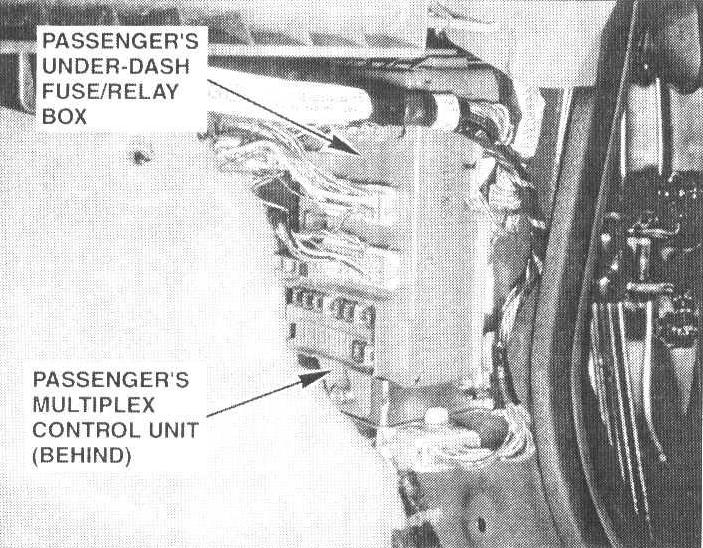

98. Behind Right Kick Panel:

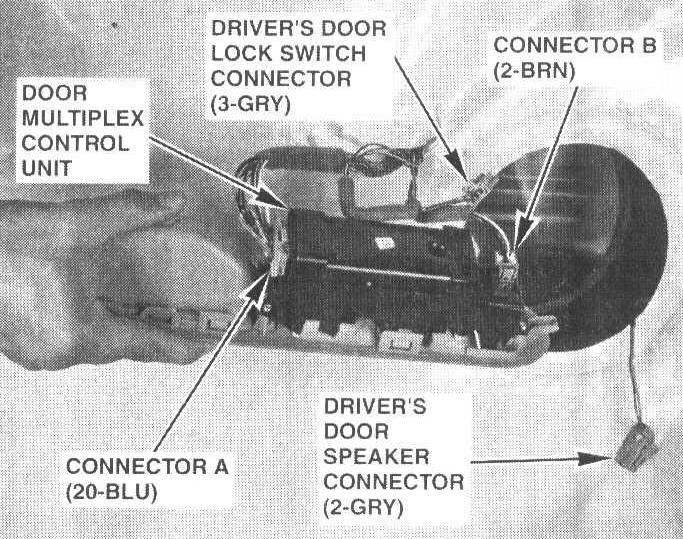

112. Driver's Door:

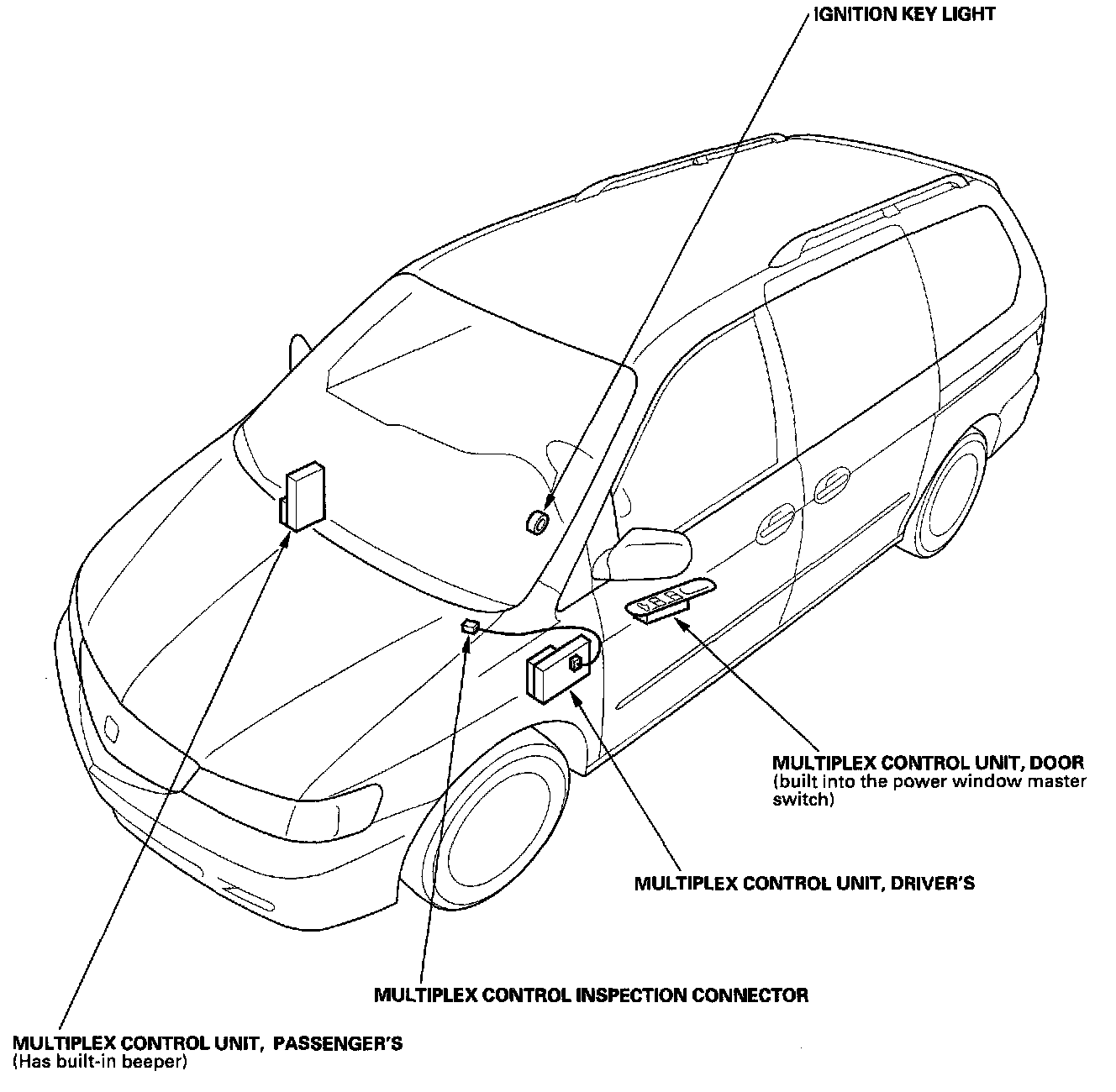

Multiplex Control System - Component Location Index:
