Refueling Control Valve: Service and Repair

Fuel Tank Vapor Control Valve Replacement

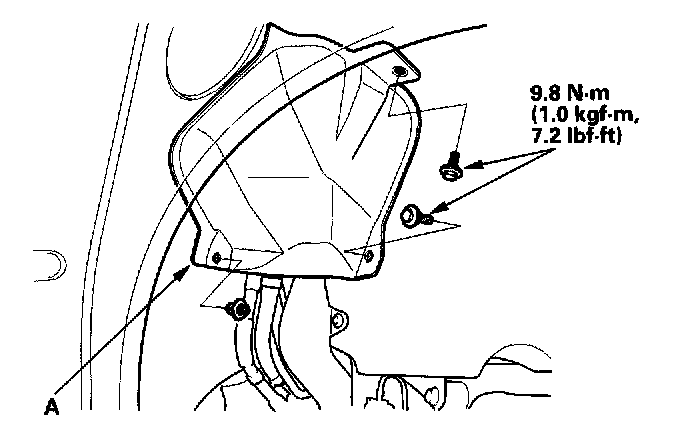

1. Remove the fuel tank vapor control valve cover (A).

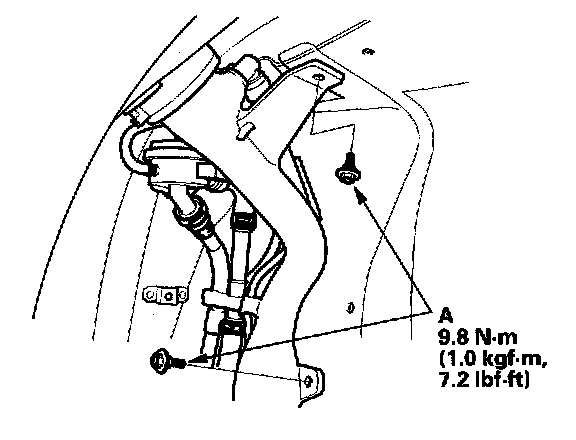

2. Remove the bolt (A).

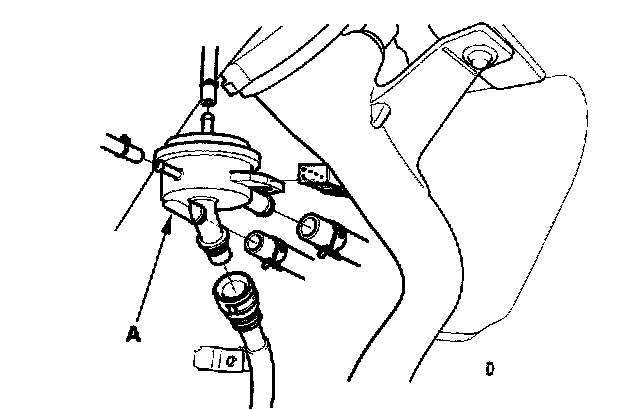

3. Remove the fuel tank vapor control valve (A).
4. Install the fuel tank vapor control valve in the reverse order of removal.
