Pinout Values and Diagnostic Parameters

PCM Inputs and Outputs





The PCM terminal voltage and measuring conditions for the A/T control system are shown.

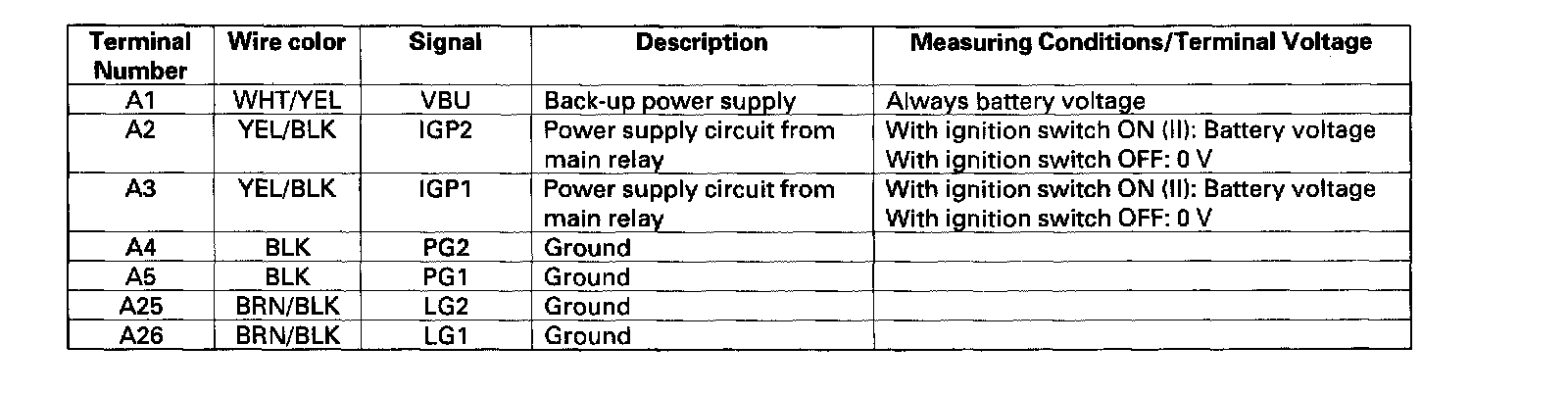

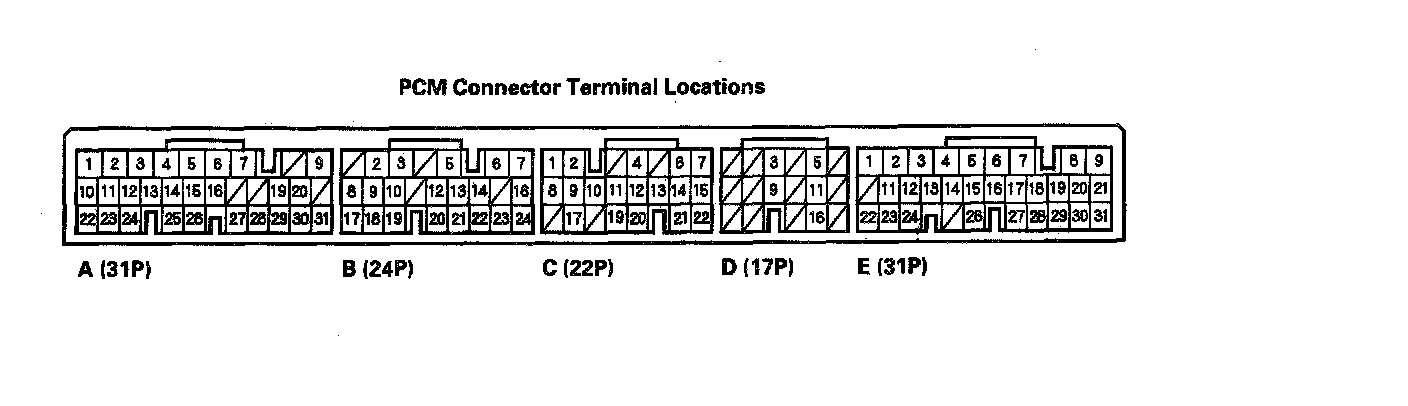

PCM CONNECTOR A (32P)

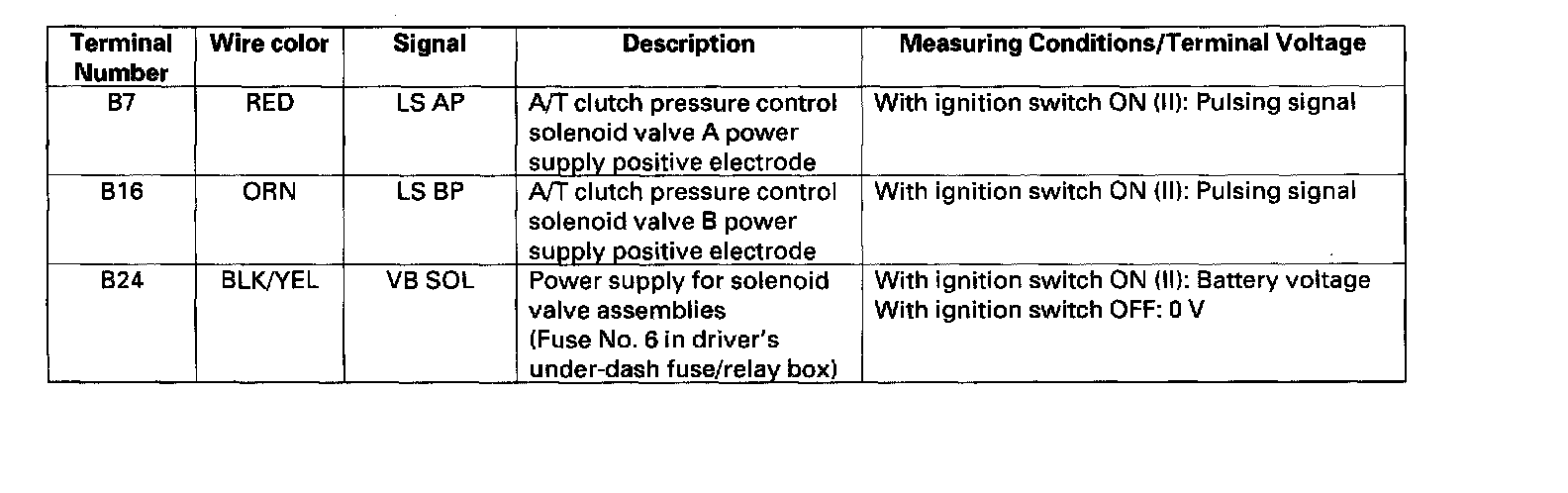

PCM CONNECTOR B (24P)





PCM Inputs and Outputs

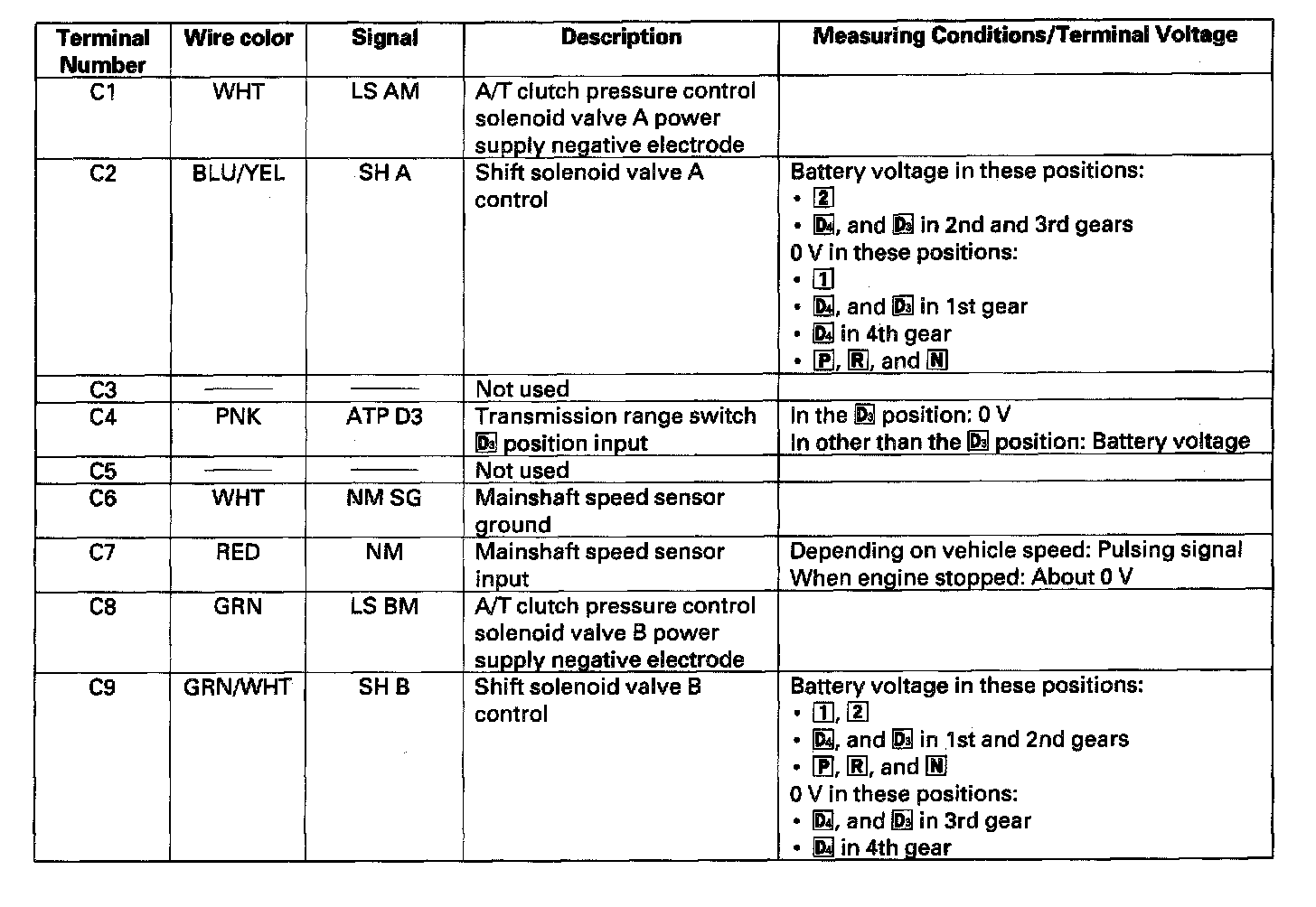

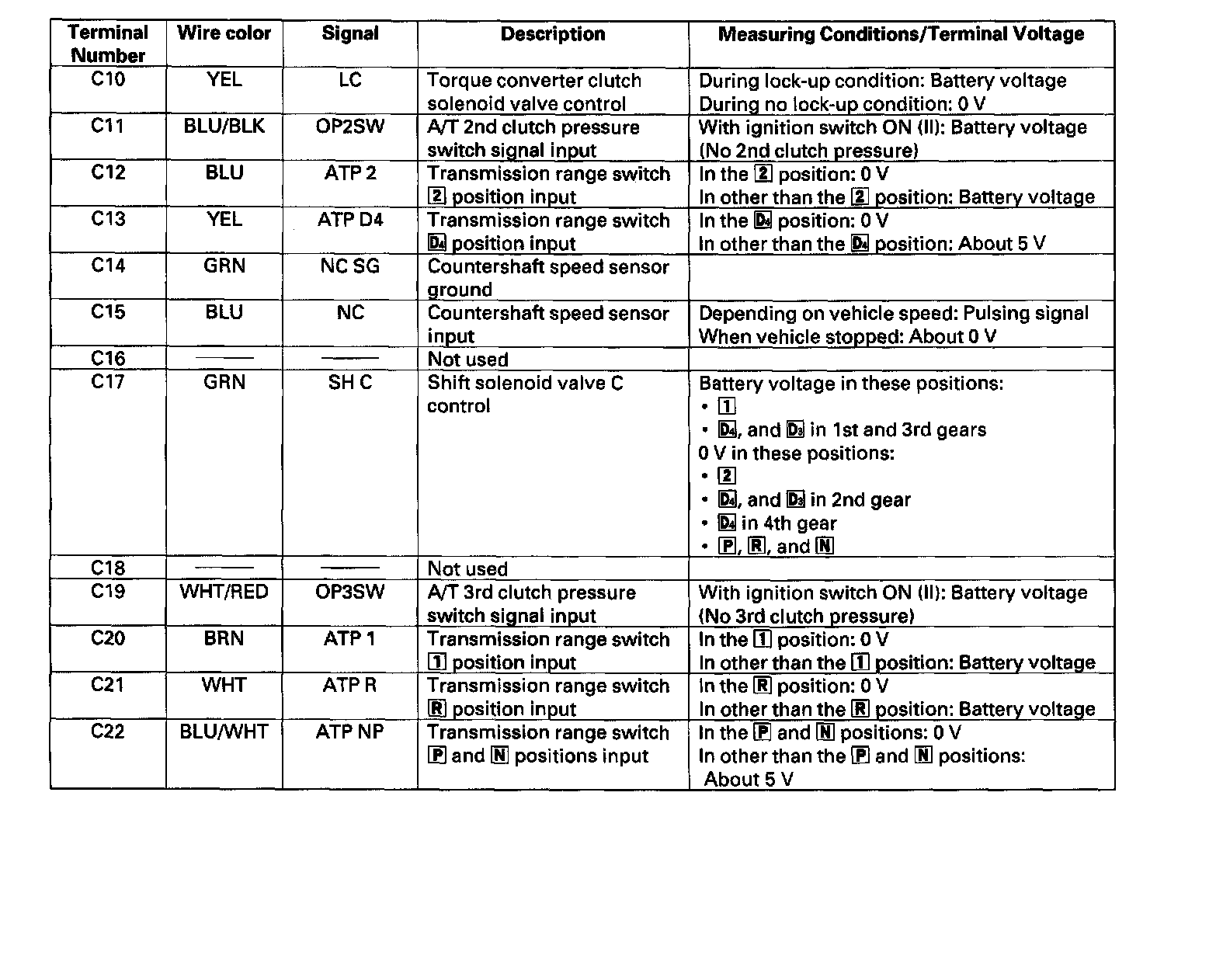

PCM CONNECTOR C (22P)





PCM Inputs and Outputs

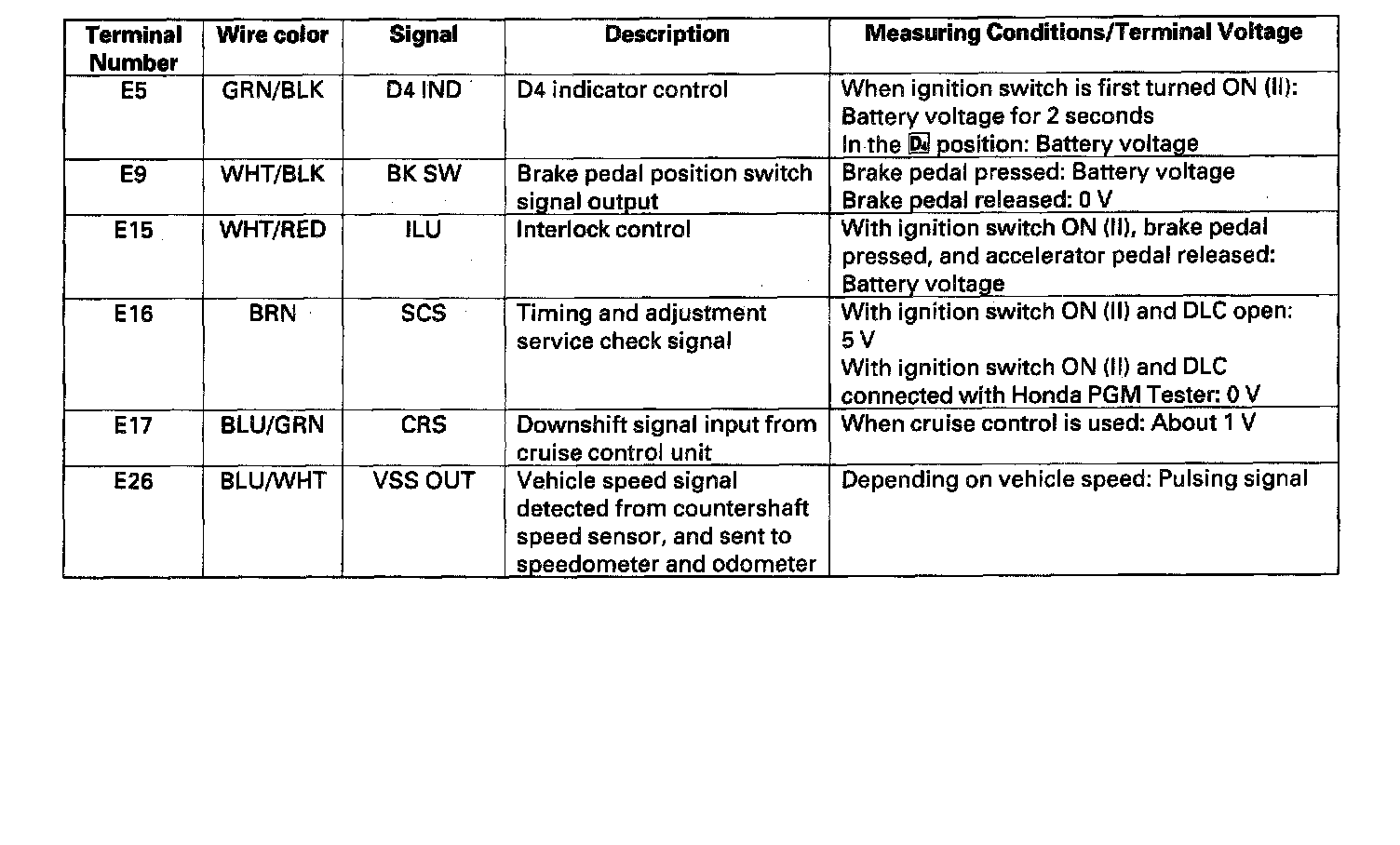

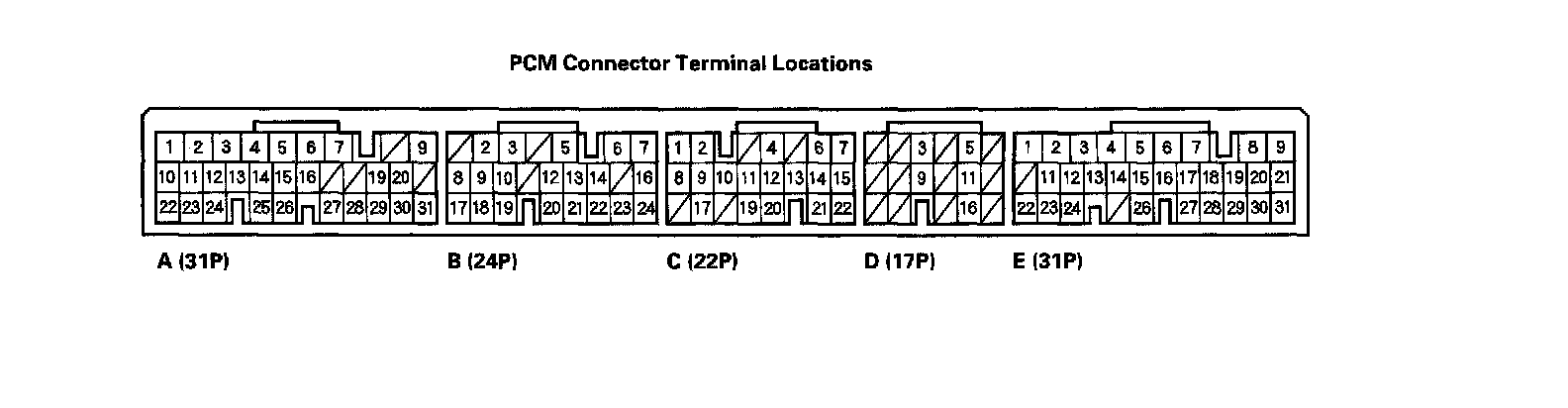

PCM CONNECTOR E (31P)
