Window Glass: Service and Repair
Glass Replacement1. Tilt the glass all the way up.
2. Slide the sunshade all the way back.

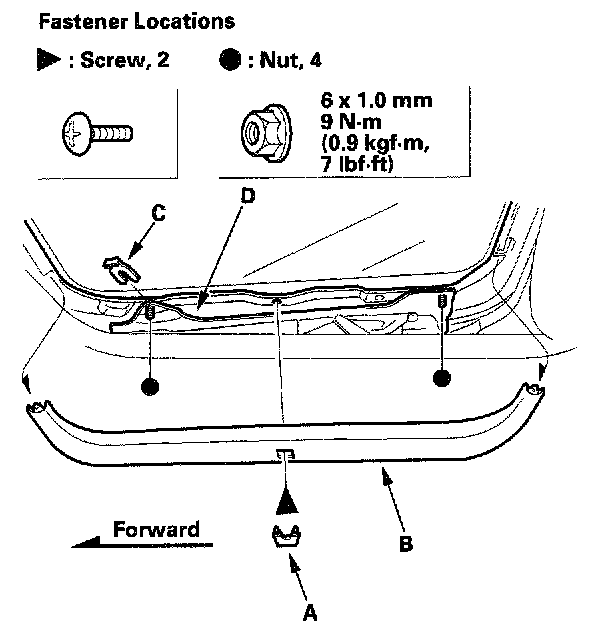

3. Remove the caps (A) and screws, then remove both bracket covers (B). Remove the nuts and shims (C) from both glass brackets (D).
4. Remove the moonroof glass by lifting it up. Do not damage the roof panel.
5. Install the glass in the reverse order of the removal, and adjust the glass height.
6. Check for water leaks. Use free flowing water from a hose without a nozzle. Do not use high-pressure water.
