Lighting and Horns: Locations

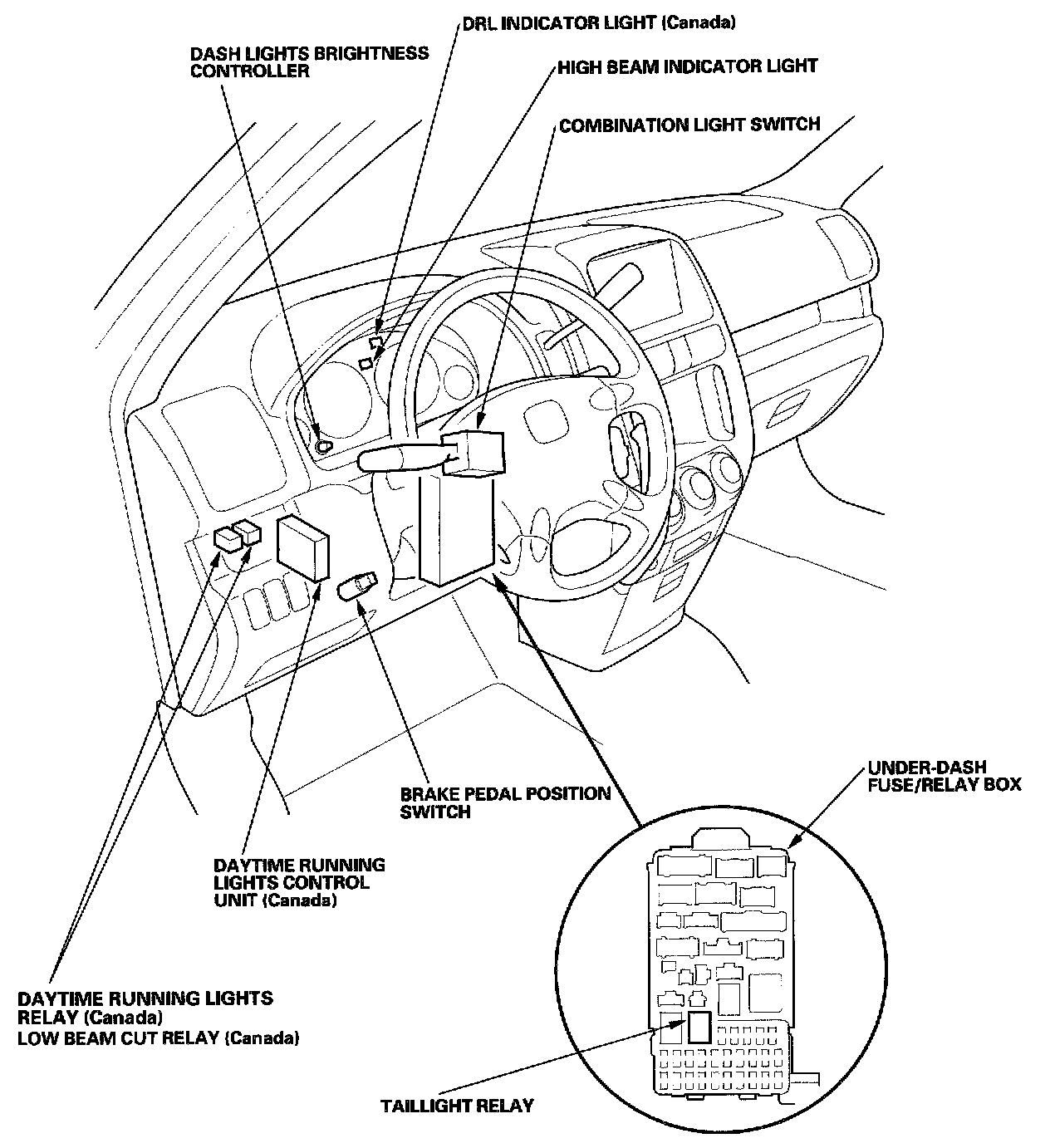

Exterior Lights - Component Location Index 1:



Exterior Lights - Component Location Index 2:



Exterior Lights - Component Location Index 3:

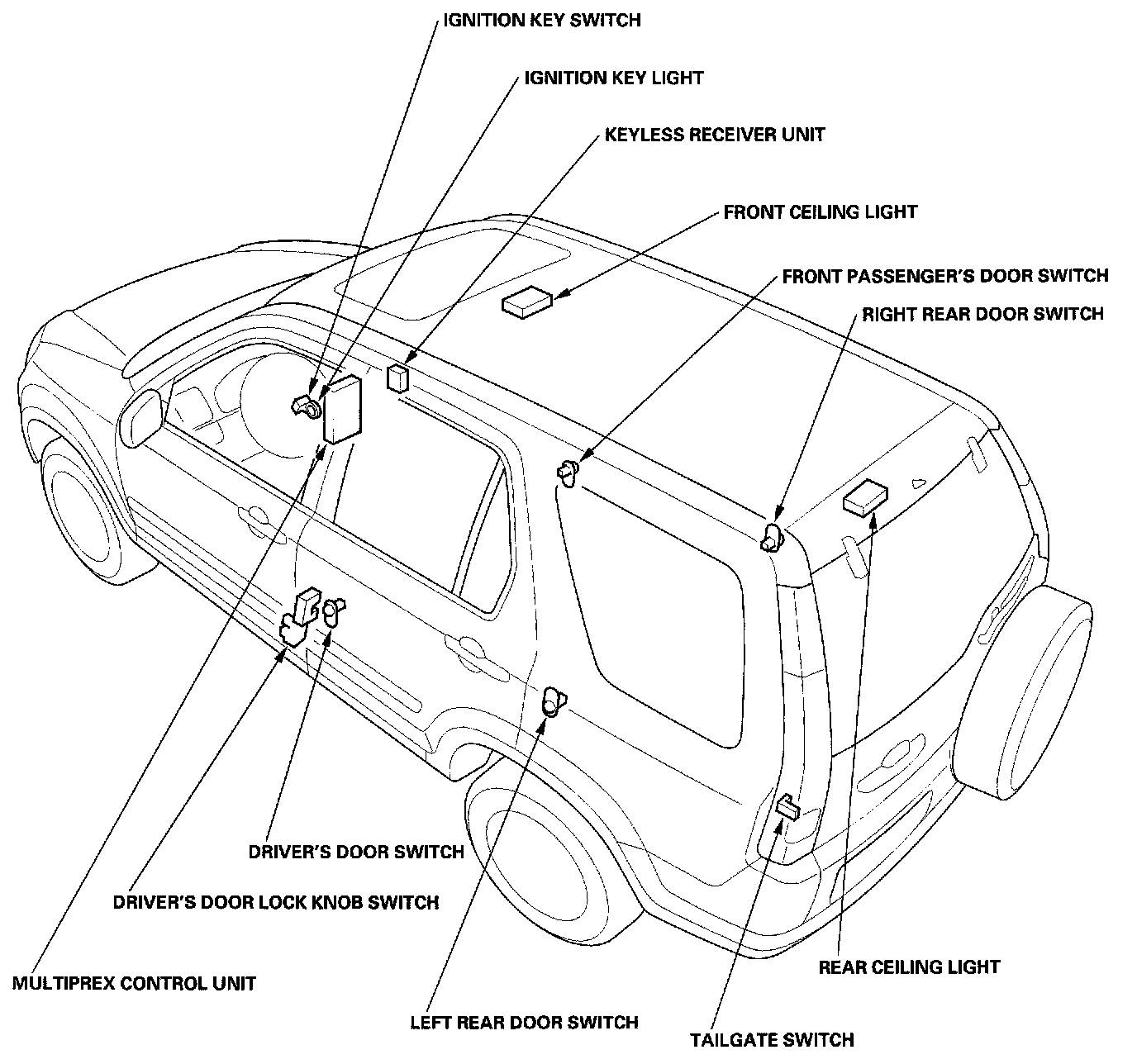

Entry Light Control System - Component Location Index:
