Cranking Signal: Description and Operation

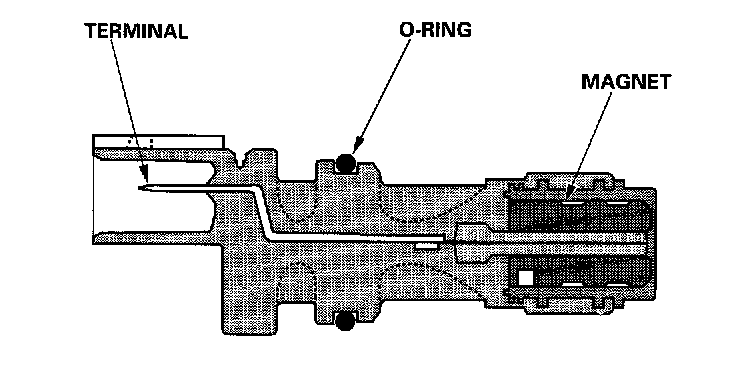

Top Dead Center (TDC) Sensor




The TDC sensor detects the position of the No.1 cylinder as a reference for sequential fuel injection to each cylinder.



Crankshaft Position (CKP) Sensor




The CKP sensor detects crankshaft speed and determines ignition timing and timing for fuel injection of each cylinder as well as detecting engine misfire.
