Power Relay Test

Power Relay Test

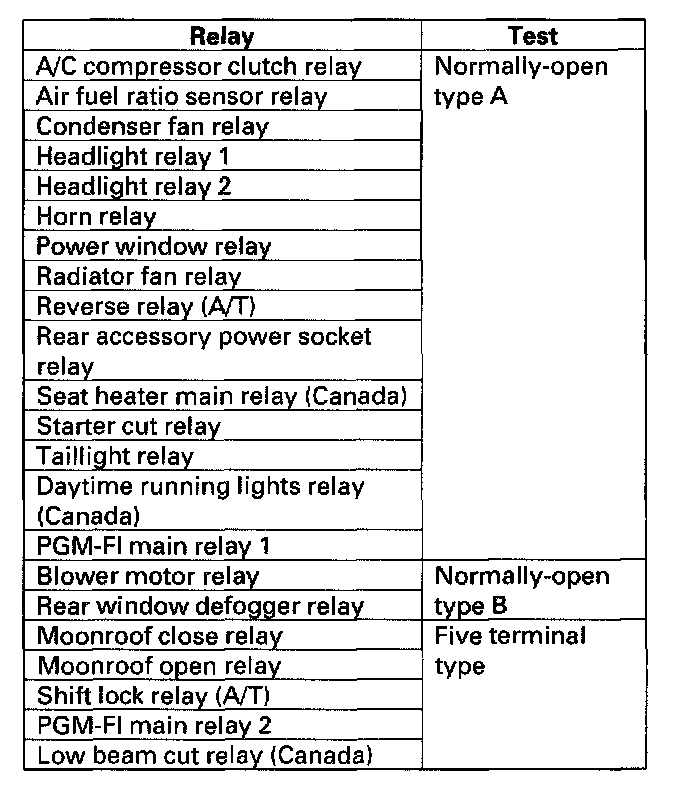

Use this chart to identify the type of relay then do the test listed for it.

NOTE: See turn signal/hazard relay input test.

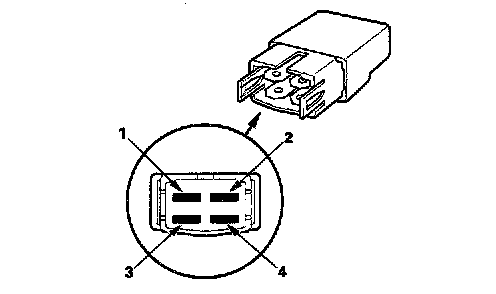

Normally-open type A:

PGM-FI Main Relay 1, 2:

Check for continuity between the terminals.
- There should be continuity between the No.1 and No.2 terminals when power and ground are connected to the No.3 and No.4 terminals.
- There should be no continuity between the No.1 and No.2 terminals when power is disconnected.

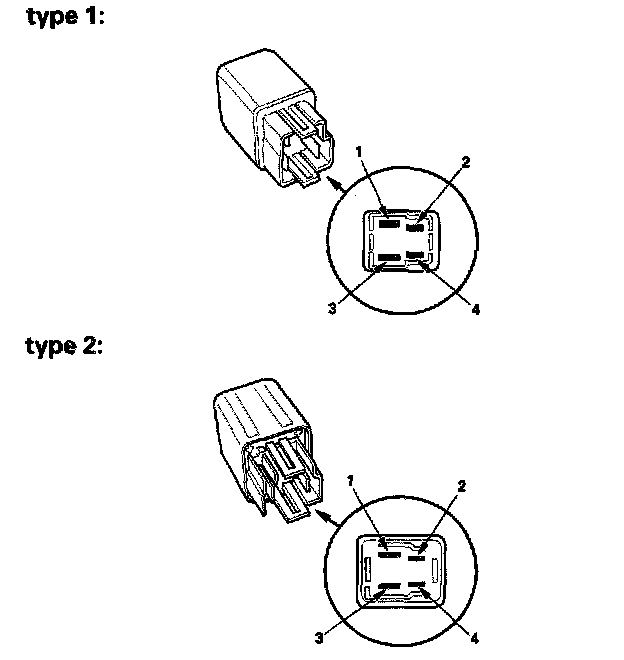

Normally-open type B:

Blower Motor Relay:

Rear Window Defogger Relay:

Check for continuity between the terminals.
- There should be continuity between the No.1 and No.3 terminals when power and ground are connected to the No.2 and No.4 terminals.
- There should be no continuity between the No.1 and No.3 terminals when power is disconnected.

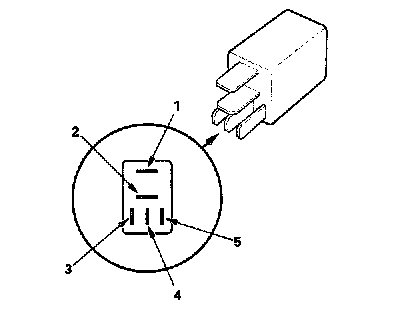

Five-terminal type:

Moonroof Open Relay/Moonroof Close Relay/Low Beam Cut Relay (Canada):

PGM-FI Main Relay 2:

Check for continuity between the terminals.
- There should be continuity between the No.1 and No.2 terminals when power and ground are connected to the No.3 and No.4 terminals.
- There should be no continuity between the No.1 and No.4 terminals when power is disconnected.
