Traction Control Switch: Testing and Inspection

TCS Switch Test

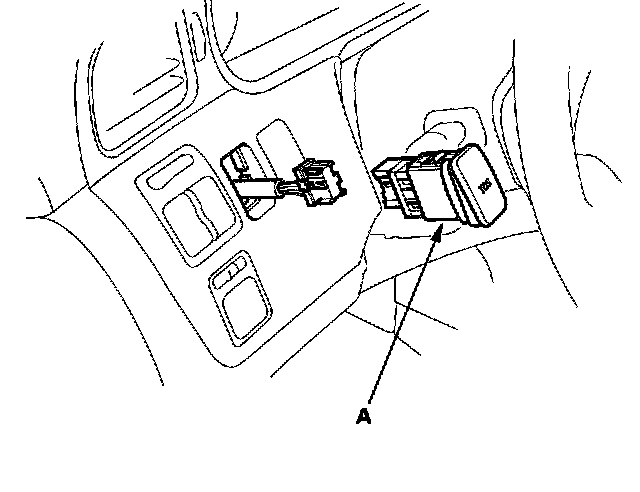

1. Remove the TCS switch (A) from the switch panel.

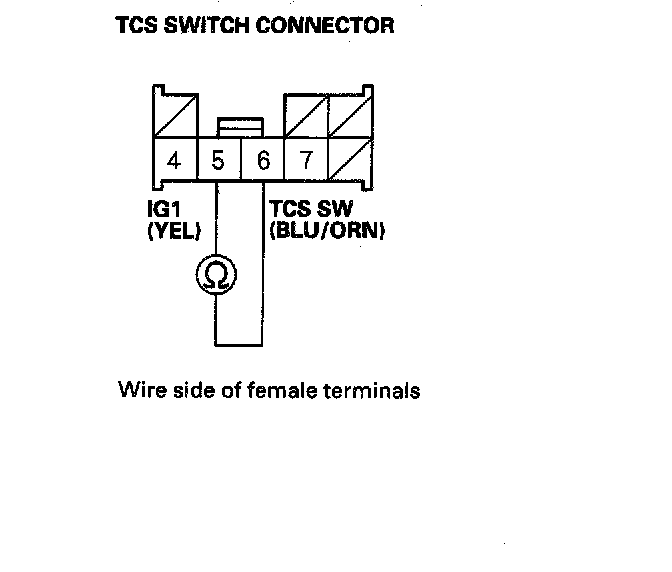

2. Check for continuity between terminal No. 5 and No. 6. There should be continuity when the TCS switch is pushed.
