Canister Purge Solenoid
Canister Purge Solenoid

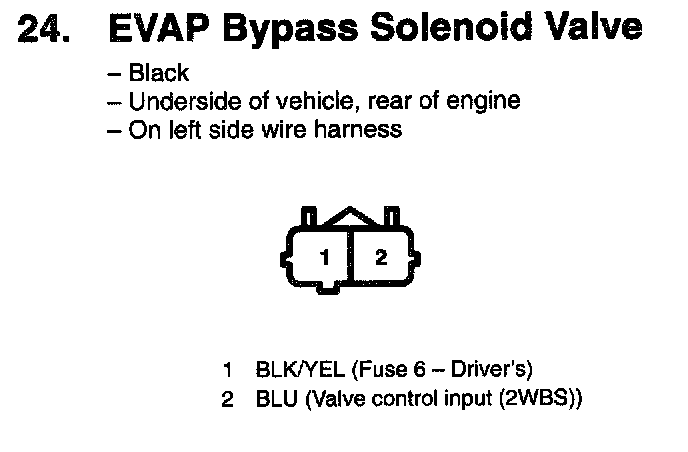

24. EVAP Bypass Solenoid Valve:

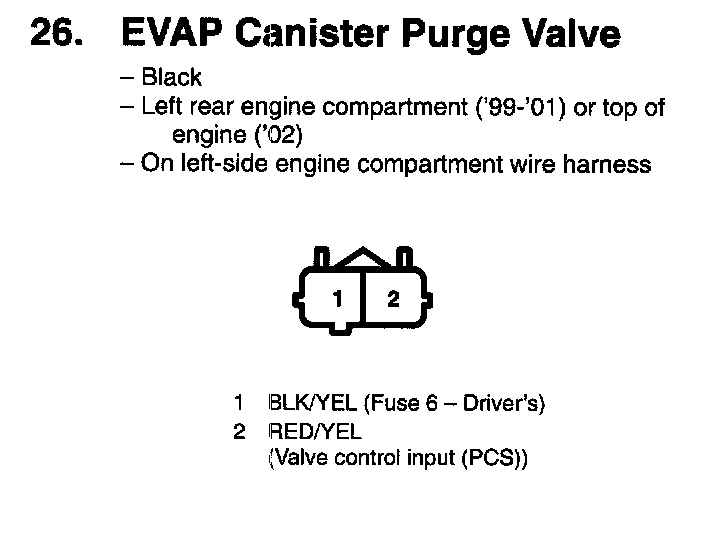

26. EVAP Canister Purge Valve:
