Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
2002
>>
Odyssey EX V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By View Number
>>
Views 1-25
>>

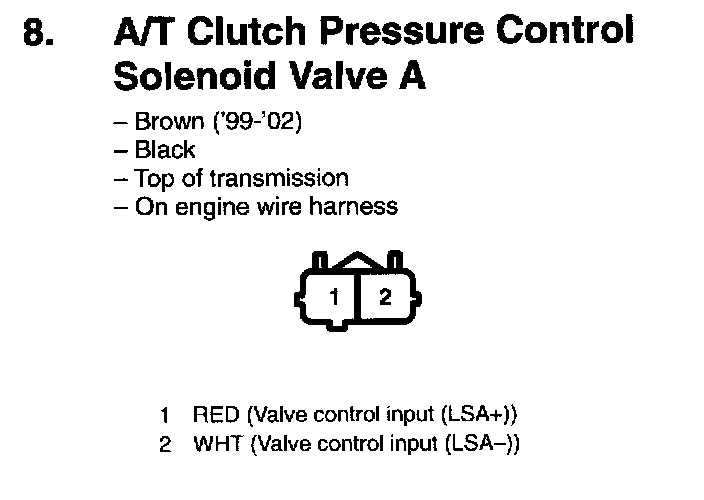

8
Views 1-25: 8
(02-03):
(02-03):
