Home >> Honda >> 2002 >> Odyssey EX V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> Views 251-275 >> 267

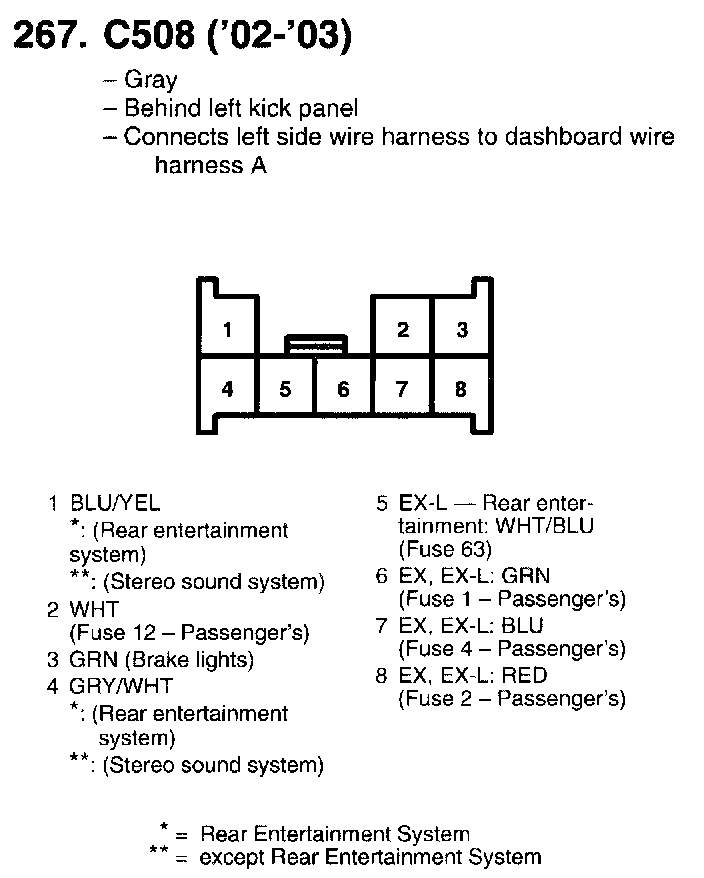

Views 251-275: 267

(02-03):
