Replacement
Starter Replacement1. Make sure you have the anti-theft code for the radio and the navigation system, then write down the frequencies for the radio's preset buttons.
2. Disconnect the negative cable from the battery first, and then disconnect the positive cable.

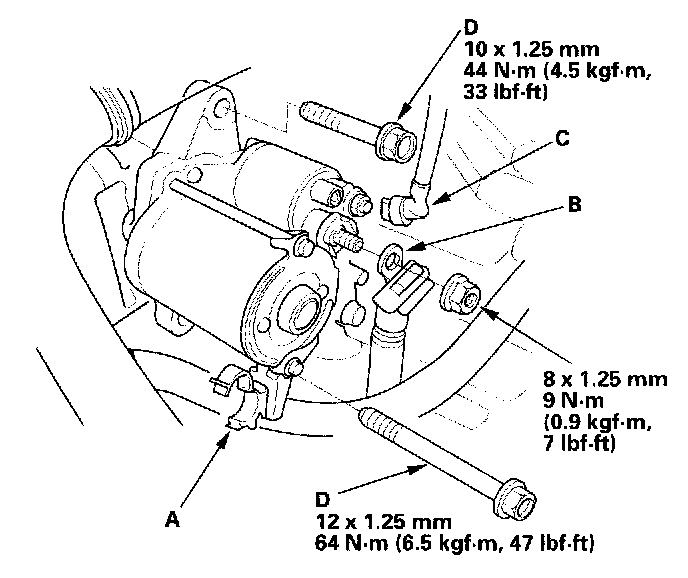

3. Unlatch the automatic transmission fluid (ATF) cooler hose clamp (A), then disconnect the starter cable (B) from the B terminal on the solenoid, then disconnect the BLK/WHT wire (C) from the S terminal.
4. Remove the two bolts (D) holding the starter, then remove the starter.

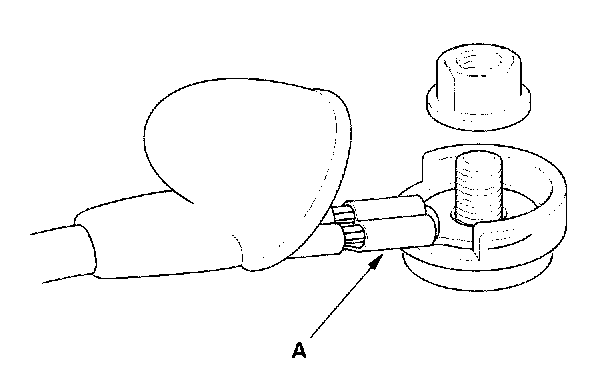

5. Install in the reverse order of removal. Make sure the crimped side of the ring terminal (A) is facing out.
6. Connect the battery positive cable and negative cable to the battery.
7. Start the engine to make sure the starter works properly.
8. Enter the anti-theft code for the radio and the navigation system, then enter the customer's radio station presets. Reset the clock.
9. Perform the powertrain control module (PCM) idle learn procedure, and power window control unit reset procedure ('03 model).
10. Set the clock.
