Front Door Window Glass Weatherstrip: Service and Repair
Front Door Glass Outer Weatherstrip ReplacementNOTE:
- Once you remove the door glass outer weatherstrip, replace it with a new one because it will bend.
- Put on gloves to protect your hands.
- Take care not to scratch the door.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
1. Remove these items:
- Door panel, 2-door, 4-door.
- Power mirror/Manual mirror.
- Door sash trim, 2-door.

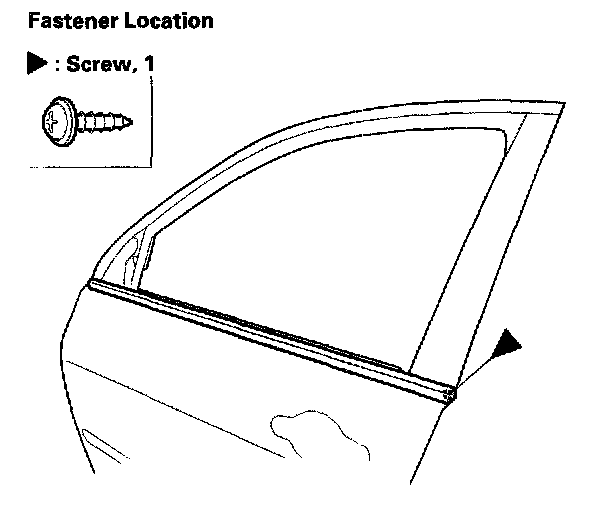

2. 4-door: Remove the screws from the rear edge of the door.

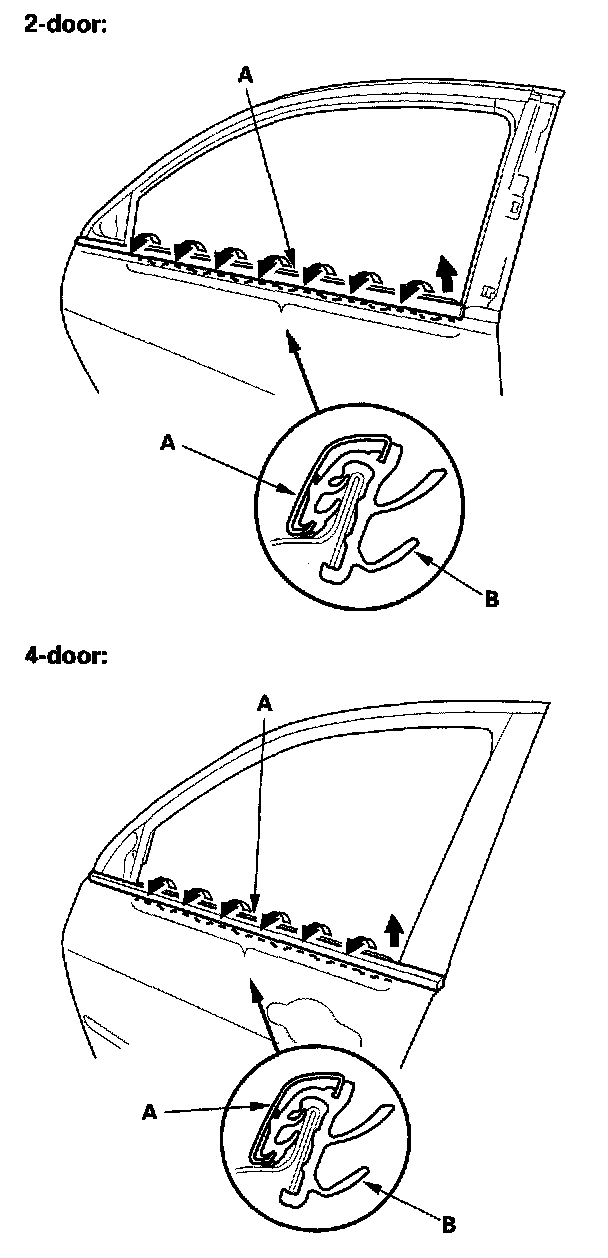

3. Starting at the rear, pull the door glass outer weatherstrip (A) up at each portion where the inner molding (B) catches the inside edge of the window slot.

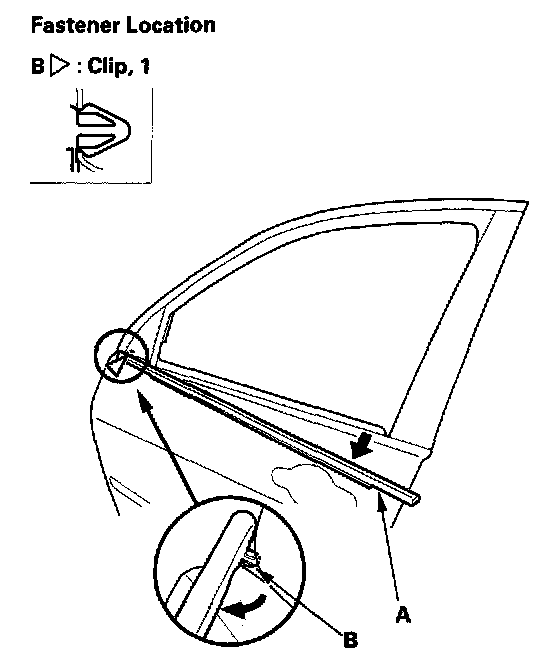

4. Pull the rear of the glass outer weatherstrip (A) away from the door, then release the front clip (B) from the mounting hole in the door. If necessary, pry the clip, then remove the weatherstrip.
5. Install new weatherstrip in the reverse order of removal.
