HVAC

Diagram 60-0 (Manual A/C L4: DX, LX, EX):

Diagram 60-1 (Manual A/C V6: LX):

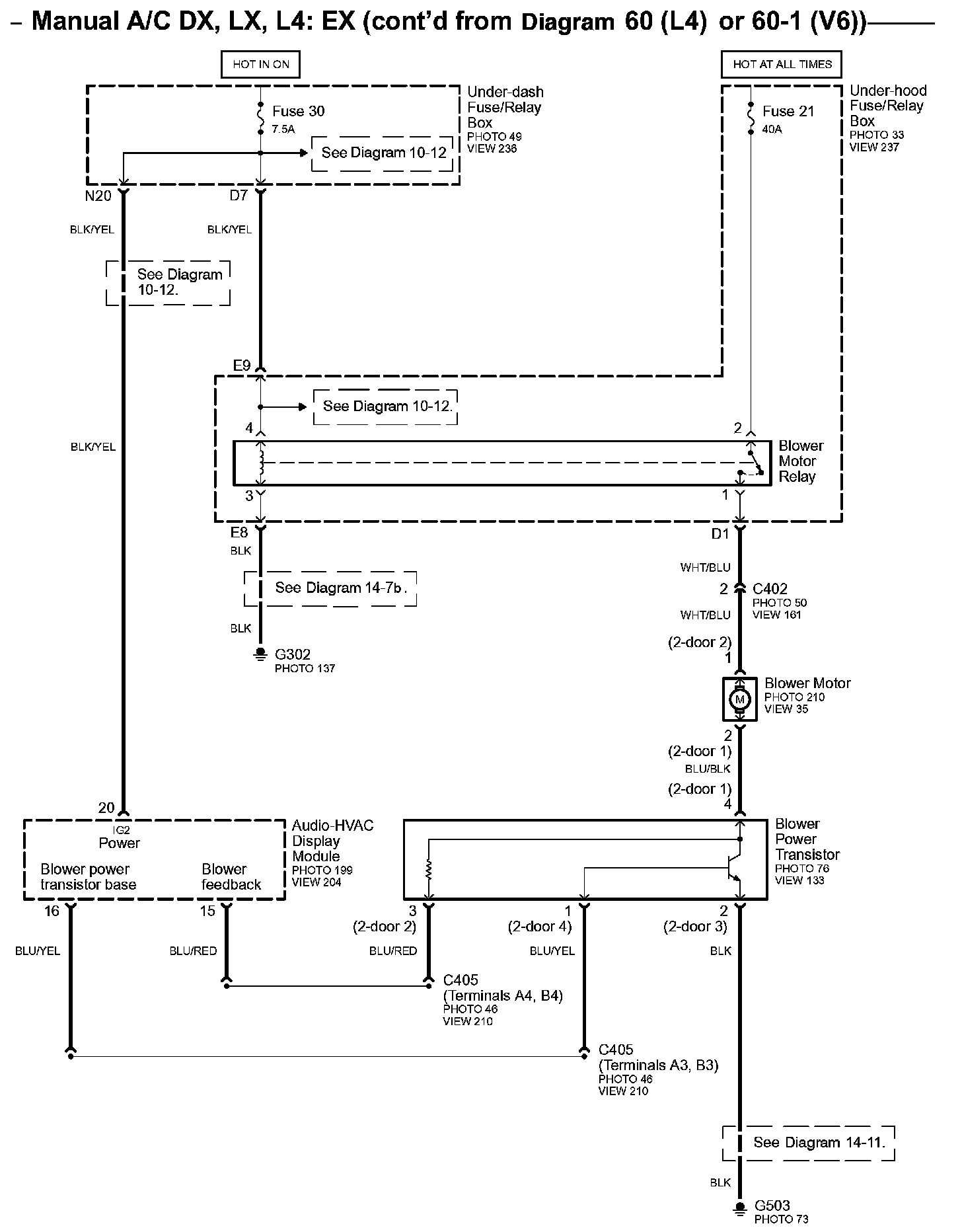

Diagram 60-2 (Manual A/C DX, LX, L4: EX):

Diagram 60-4 (Climate Control L4: EX-L):

Diagram 60-5 (Climate Control V6: EX-L):

Diagram 60-6 (Climate Control EX-L):

Diagrams: Other diagrams referred to by number (See Diagram ##-#, etc.) within these diagrams can be found at Diagrams by Number. Diagrams By Number

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found at Locations by Photo Number. Locations By Photo Number

Connector Views: Connector terminal views (references to VIEWS) referred to within these diagrams can be found at Connector Views by View Number. Connector Views By View Number
