Audio System - Audio Module Lens Comes Loose
03-071September 30, 2003
Applies To:
2003 Accord L4 EX and V6 LX/EX without Navigation System - ALL
Audio Module Lens Comes Loose
PROBLEM
The lens on the audio-HVAC display module has come loose.
CORRECTIVE ACTION
Replace the lens.
PARTS INFORMATION
WARRANTY CLAIM INFORMATION
In warranty: The normal warranty applies.
Operation Number: 010118
Flat Rate Time: 0.2 hour
Failed Part: P/N 39179-SDA-A11ZA
H/C 7137367
Defect Code: 061
Contention Code: A02
Skill Level: Repair Technician
Out of warranty:
Any repair performed after warranty expiration may be eligible for goodwill consideration by the District Parts and Service Manager or your Zone Office. You must request consideration, and get a decision, before starting work.
REPAIR PROCEDURE

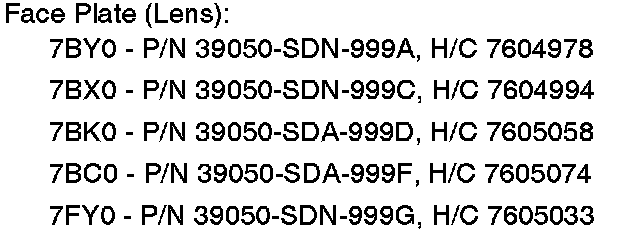

1. Check the identification number on the lens in the vehicle (7BY0, 7BK0, etc.) to make sure you have the correct replacement lens.
2. Examine the lens to see how loose it is. If you can, hook your fingernail under the edge and remove the lens. Do not use any tools; they would mar the display module.
3. If you are not able to remove the lens with your fingernail, get a 4-inch-long piece of duct tape or utility tape.

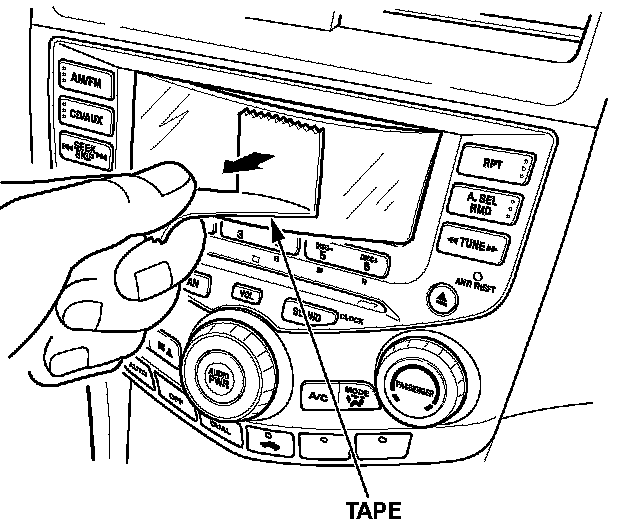

4. Stick the bottom part of the tape to the front of the lens. Pull upward on the free end of the tape to lift the bottom edge of the lens. Put your fingernails under the bottom edge, and pry the lens off.

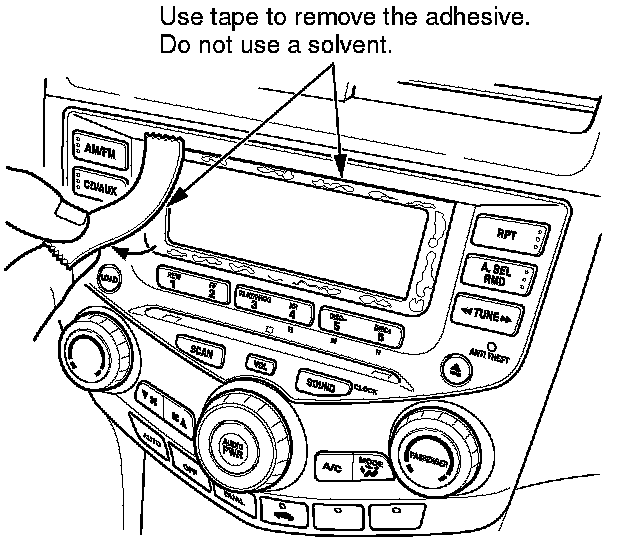

5. Use the sticky part of the duct tape or utility tape to remove the adhesive remaining on the face of the display module. Do not use any kind of liquid adhesive remover; it would damage the LCD and the face of the display module.
6. Use a can of compressed gas (such as a commercially available product to clean computer keyboards) to clean the LCD and the area around it. Do not use the shop's compressed air; it would leave a water/oil residue on the LCD.
7. Put on clean non-latex gloves to protect the new lens from fingerprints and body oils. Then carefully remove the yellow backing from the lens. Do not bend the lens.

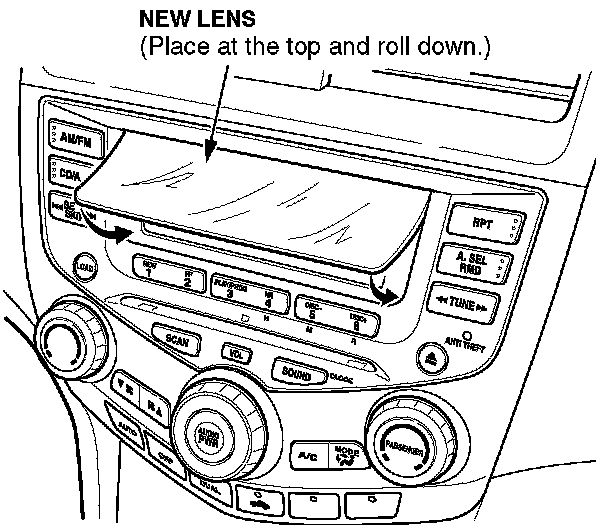

8. Fit the top of the lens into the recessed area in the face of the display module.
9. When you are sure the lens is positioned properly, install the lens fully into the recess.
10. Using a clean, soft cloth, press around the edges of the lens to make sure it adheres all the way around.
11. Remove the protective film from the front of the lens.
