Forced Starting of Display
Forced Starting of DisplaySpecial Tools Required
SCS service connector O7PAZ-OO1O1OO

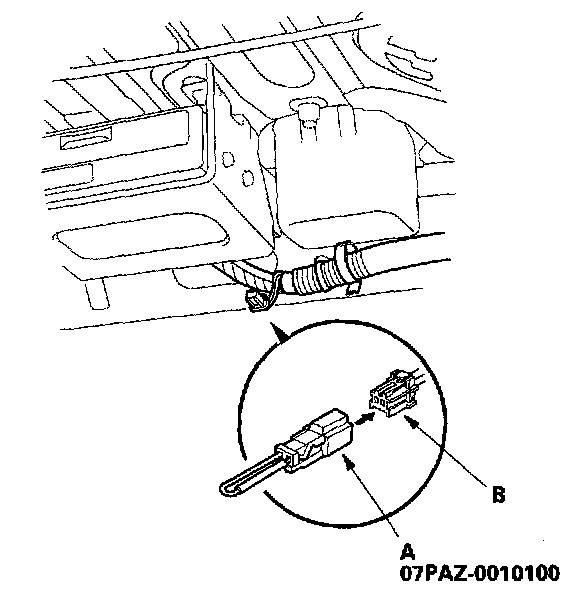

1. Connect the SCS service connector (A) to the navigation service check connector (B) located behind the navigation unit.
2. Turn the ignition switch ON (II).
3. Check that the system starts up and then changes to the "Navi System Link" screen.
NOTE: If the system fails to display the "Navi System Link" screen, refer to no picture is displayed.
