Manual Height Adjustable

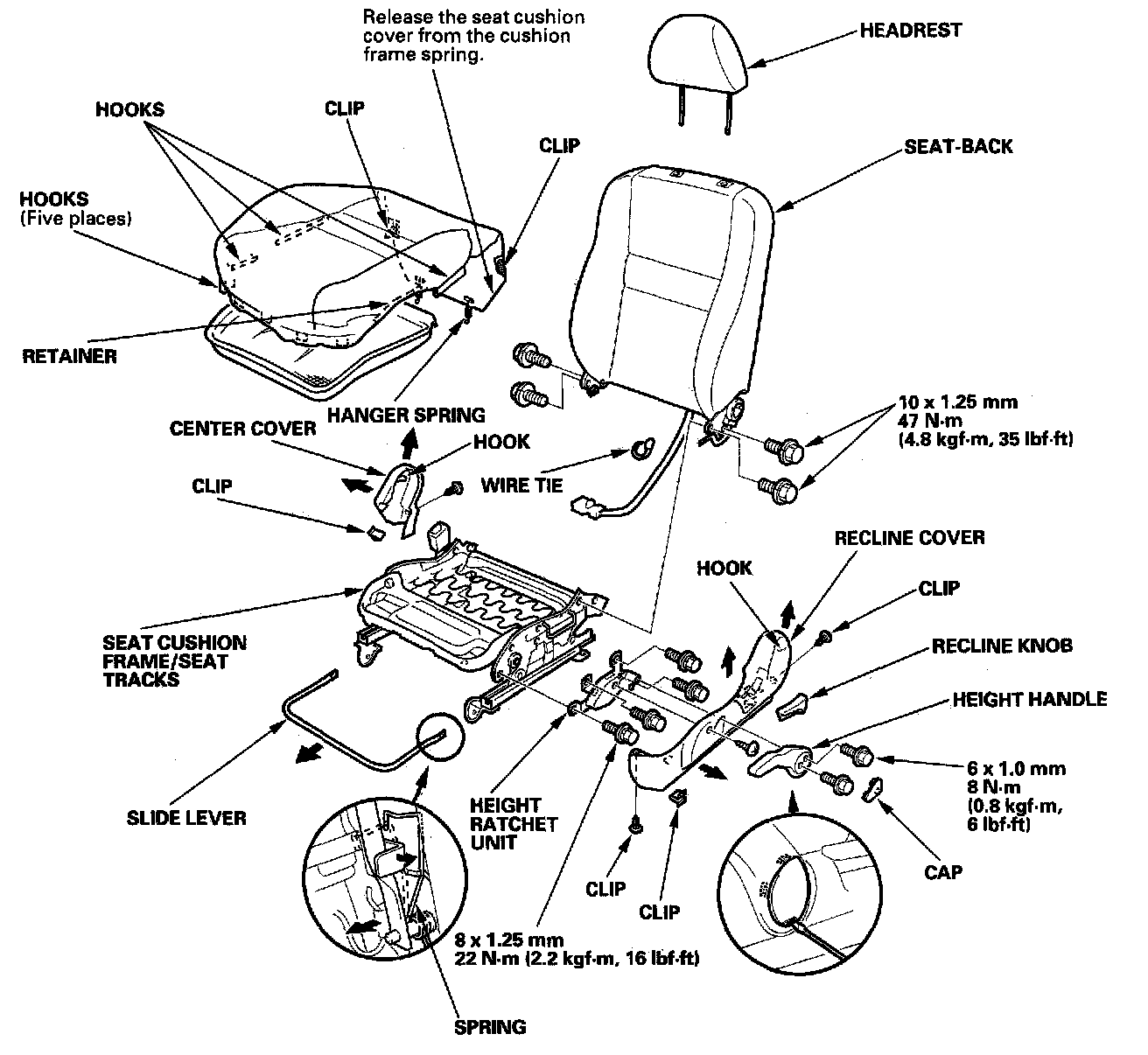

Front Seat Disassembly/Reassembly - Manual Height Adjustable

For some models: SR6 components are located in this area. Review the SRS component locations, and the precautions and procedures in the SRS section before performing repairs or service.






NOTE:
- Take care not to tear the seams or damage the seat covers.
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Apply multipurpose grease to the moving portion of the height ratchet unit and seat track.
- To prevent wrinkles in the seat cushion cover, stretch the material evenly over the pad.
