Alarm Module, (Vehicle Antitheft)
Alarm Module, (Vehicle Antitheft)

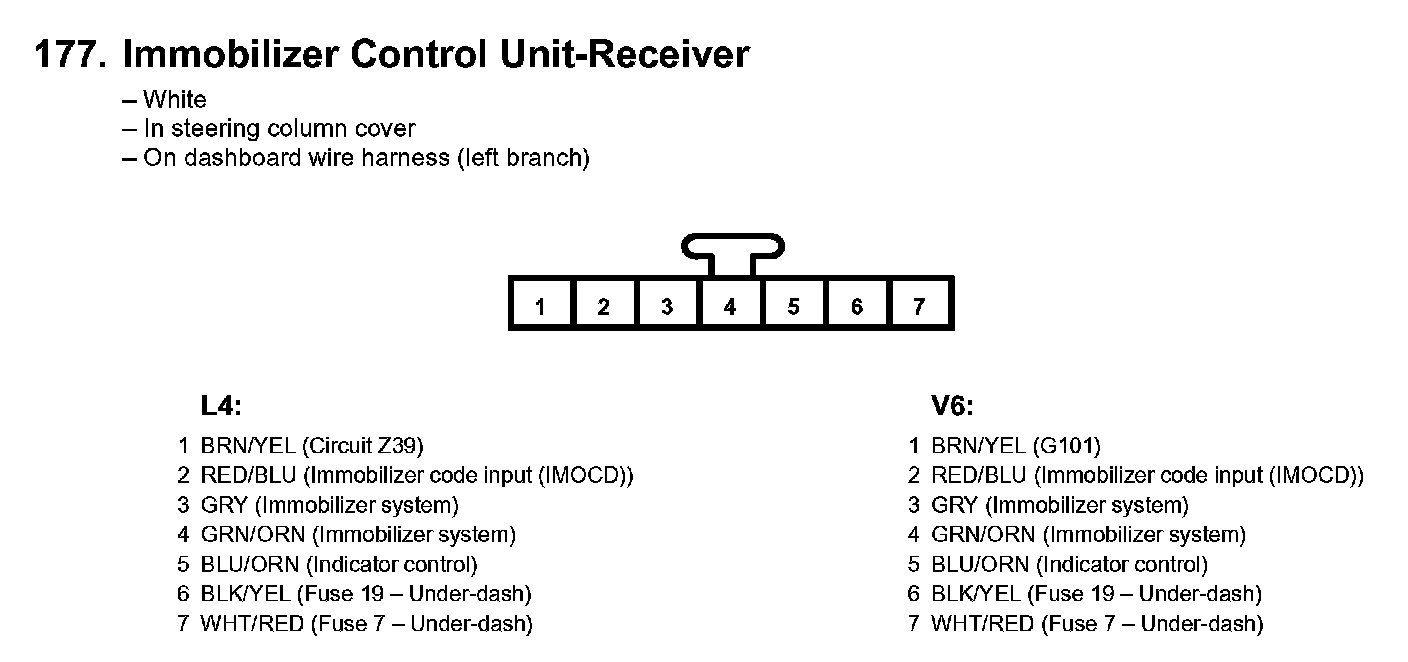

177. Immobilizer Control Unit-Receiver:

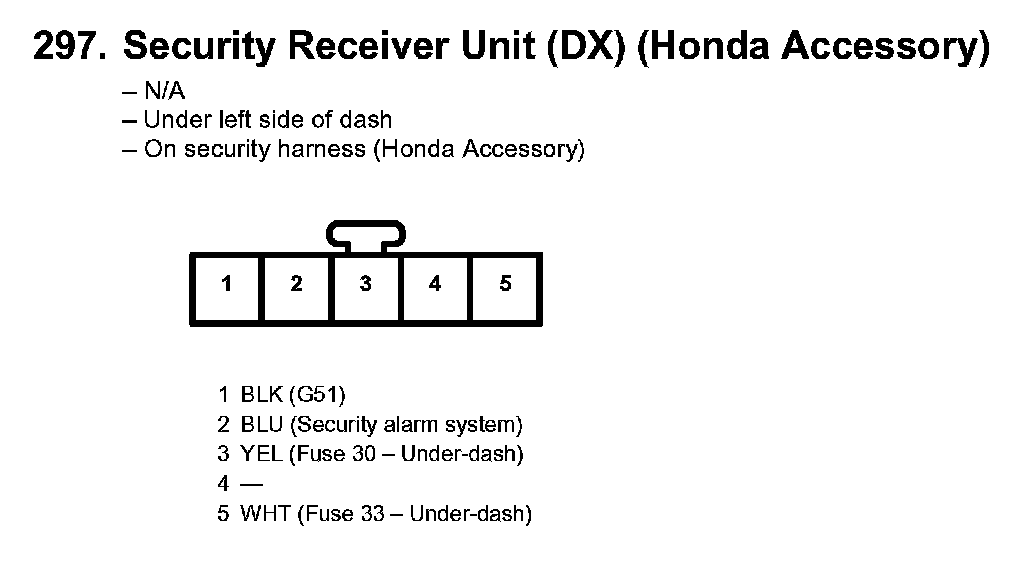

297. Security Receiver Unit (DX) (Honda Accessory):

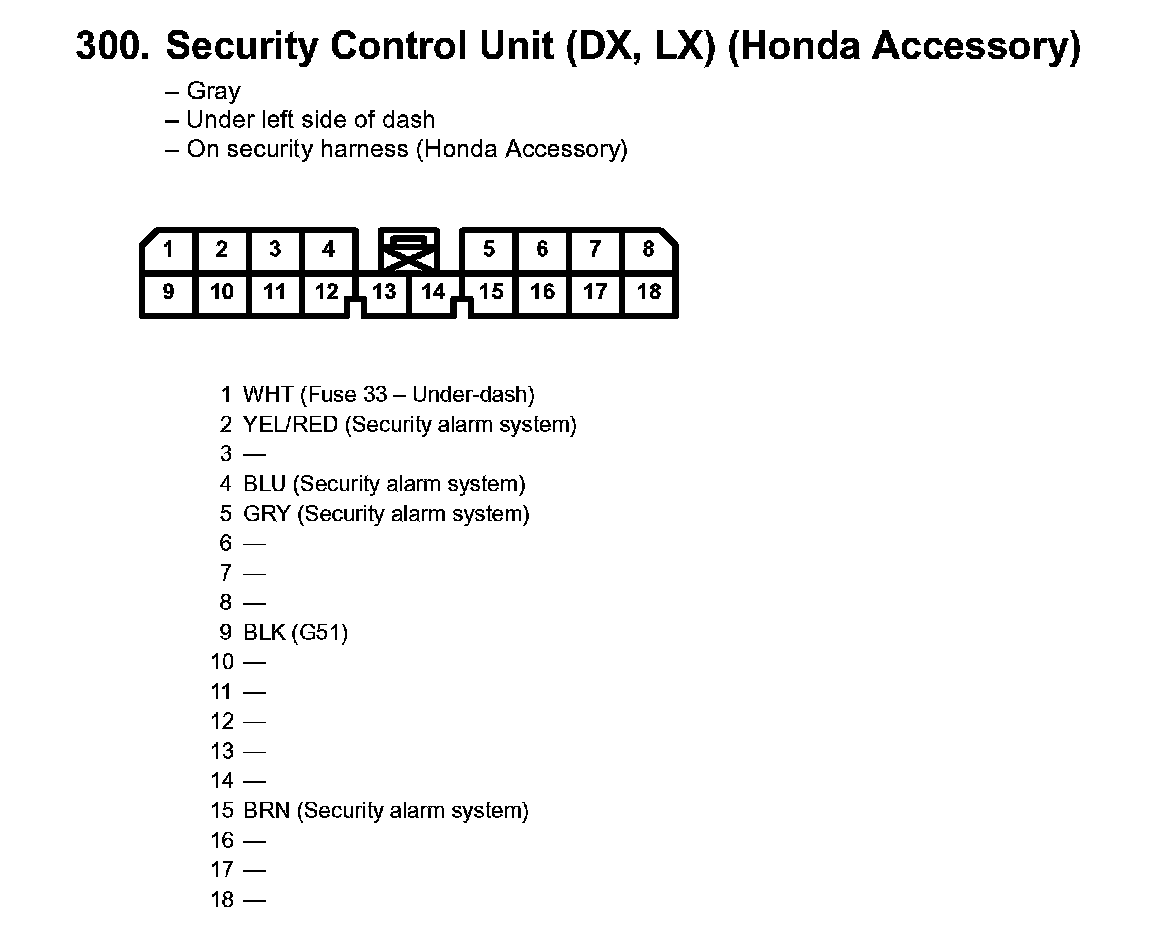

300. Security Control Unit (DX, LX) (Honda Accessory):
