253
Views 251-275: 253

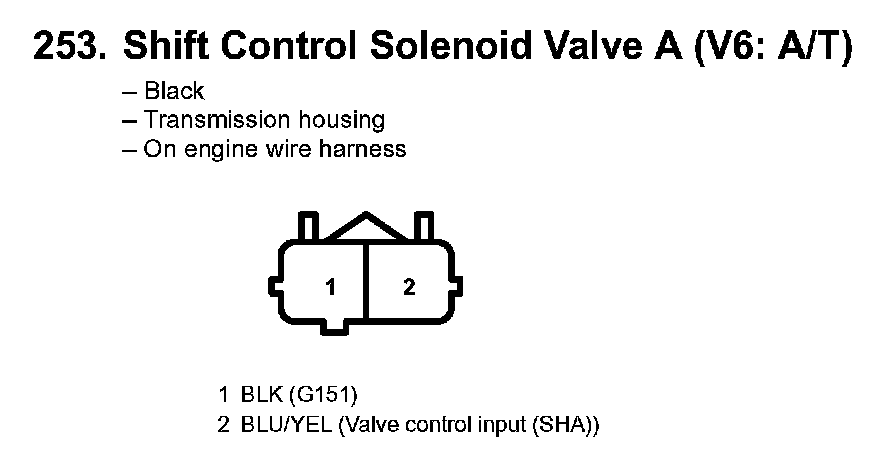

253. Shift Control Solenoid Valve A (V6: A/T):

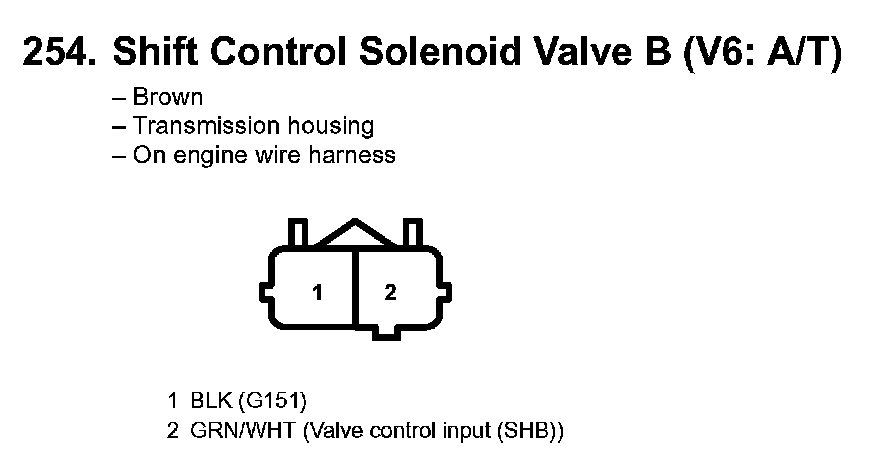

254. Shift Control Solenoid Valve B (V6: A/T):

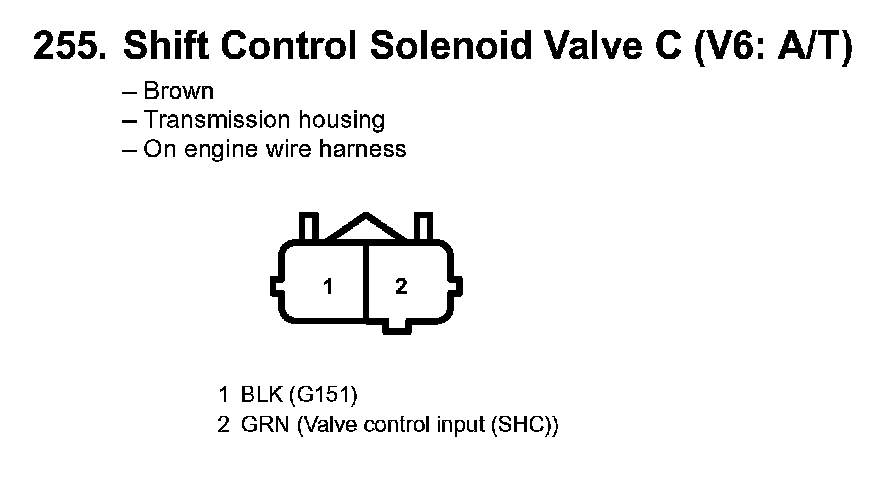

255. Shift Control Solenoid Valve C (V6: A/T):
