Home >> Honda >> 2003 >> Accord V6-3.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> Views 276-300 >> 293

Views 276-300: 293

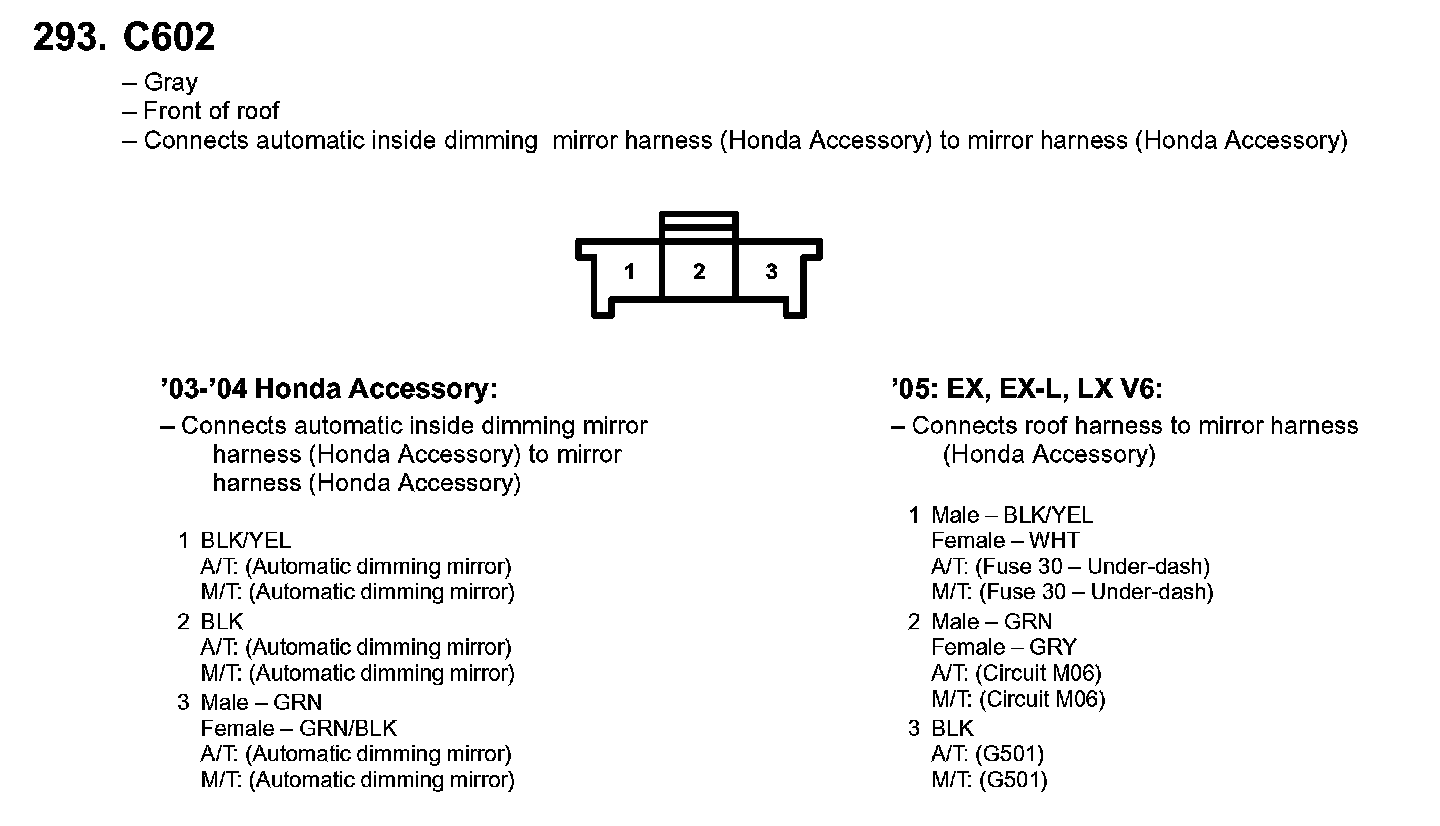

293. C602:
