Views 76-100: 100

100. Back-up Light, Left (4-door):

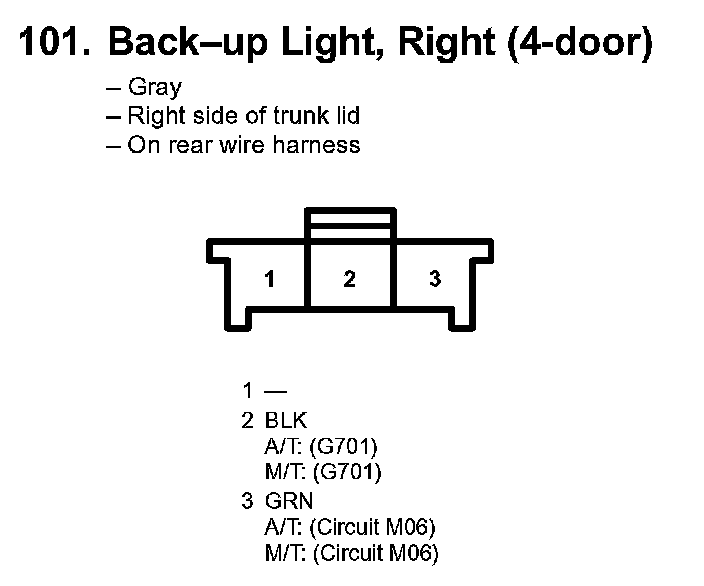

101. Back-up Light, Right (4-door):



248. Back-up Light, Left (2-door):



249. Back-up Light, Right (2-door):
