Home
>>
Honda
>>
2003
>>
Accord V6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Electronic Throttle Control Module
Electronic Throttle Control Module

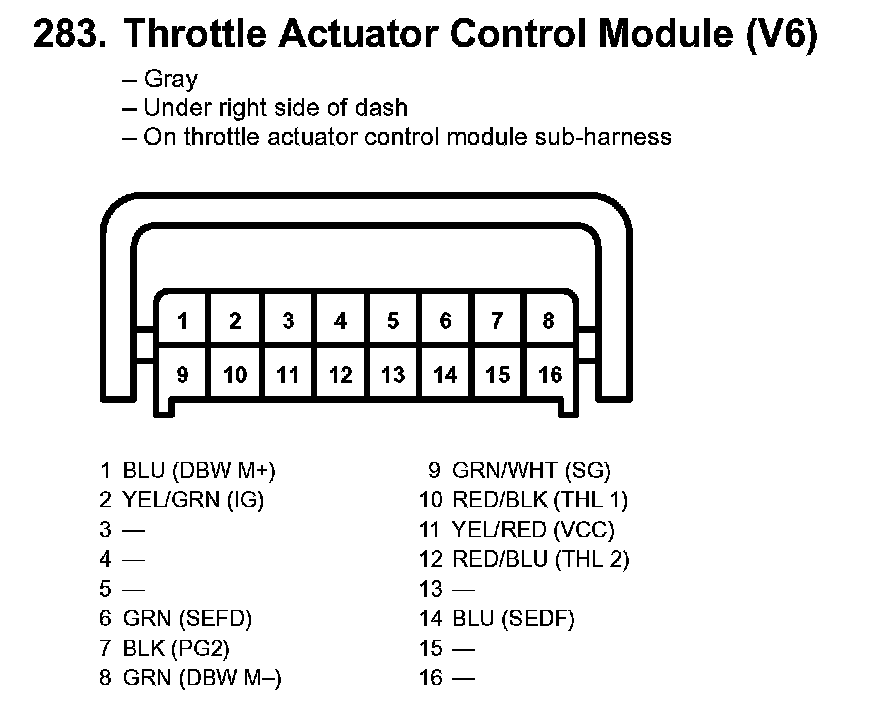

283. Throttle Actuator Control Module:
