Engine - Coolant Temperature Sensor/Switch
Engine - Coolant Temperature Sensor/Switch

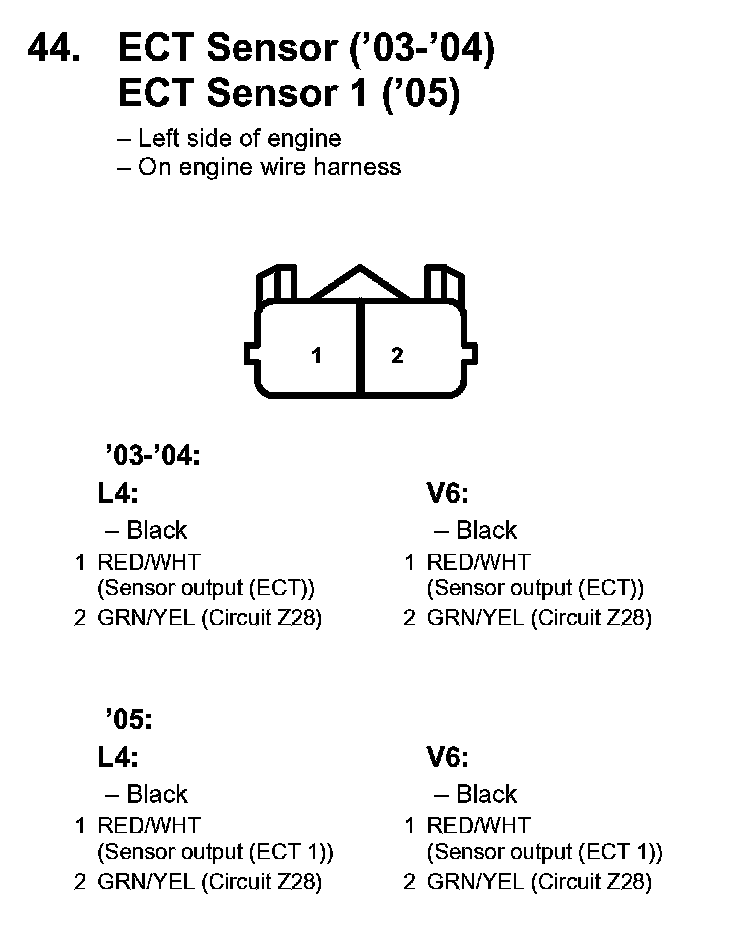

44. ECT Sensor ('03-'04) ECT Sensor 1 ('05):
