Diagram Set 60 (HVAC)

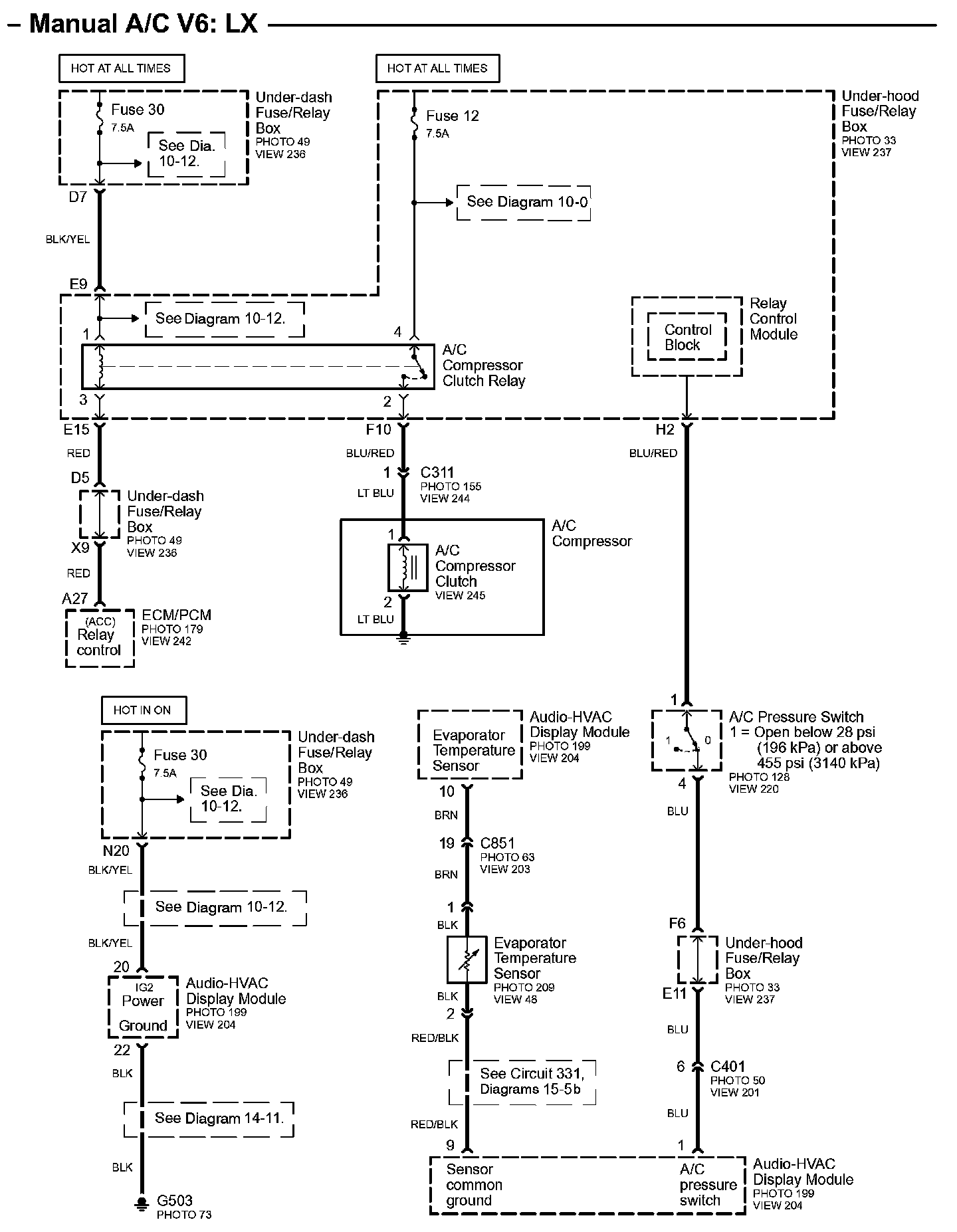

Diagram 60-1 (Manual A/C V6: LX):

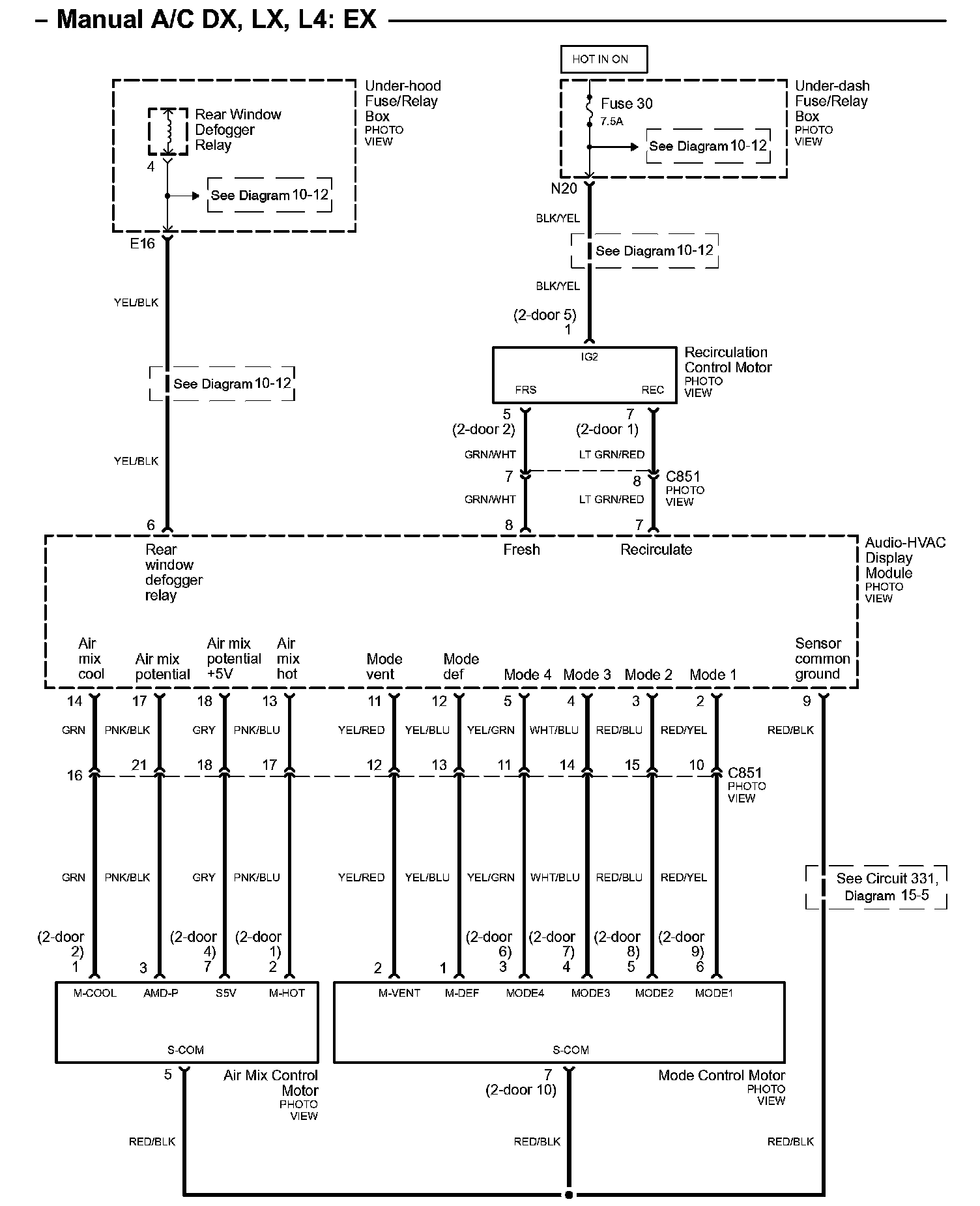

Diagram 60-2 (Manual A/C DX, LX, L4: EX):

Manual A/C DX, LX, L4: EX:

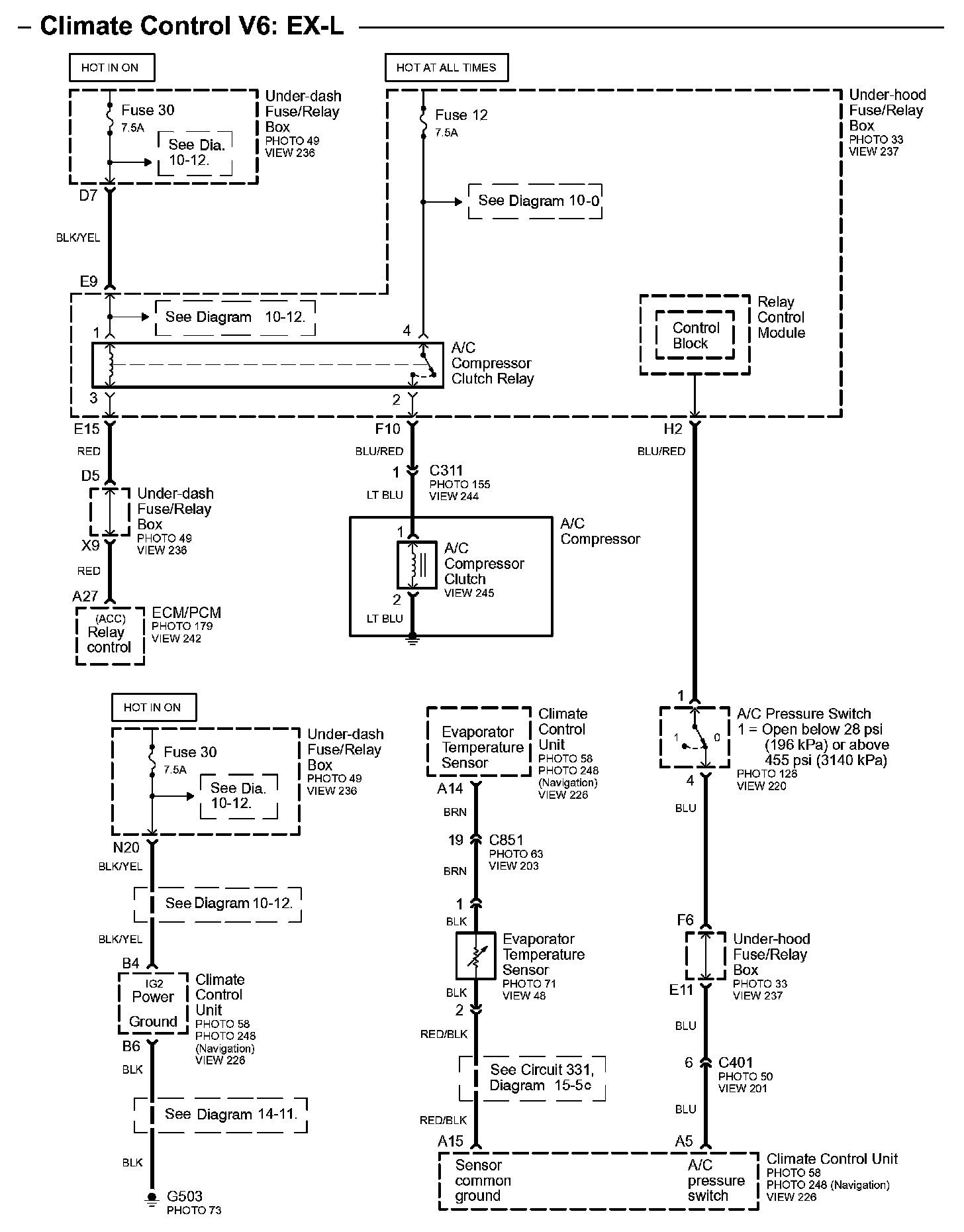

Diagram 60-5 (Climate Control V6: EX-L):

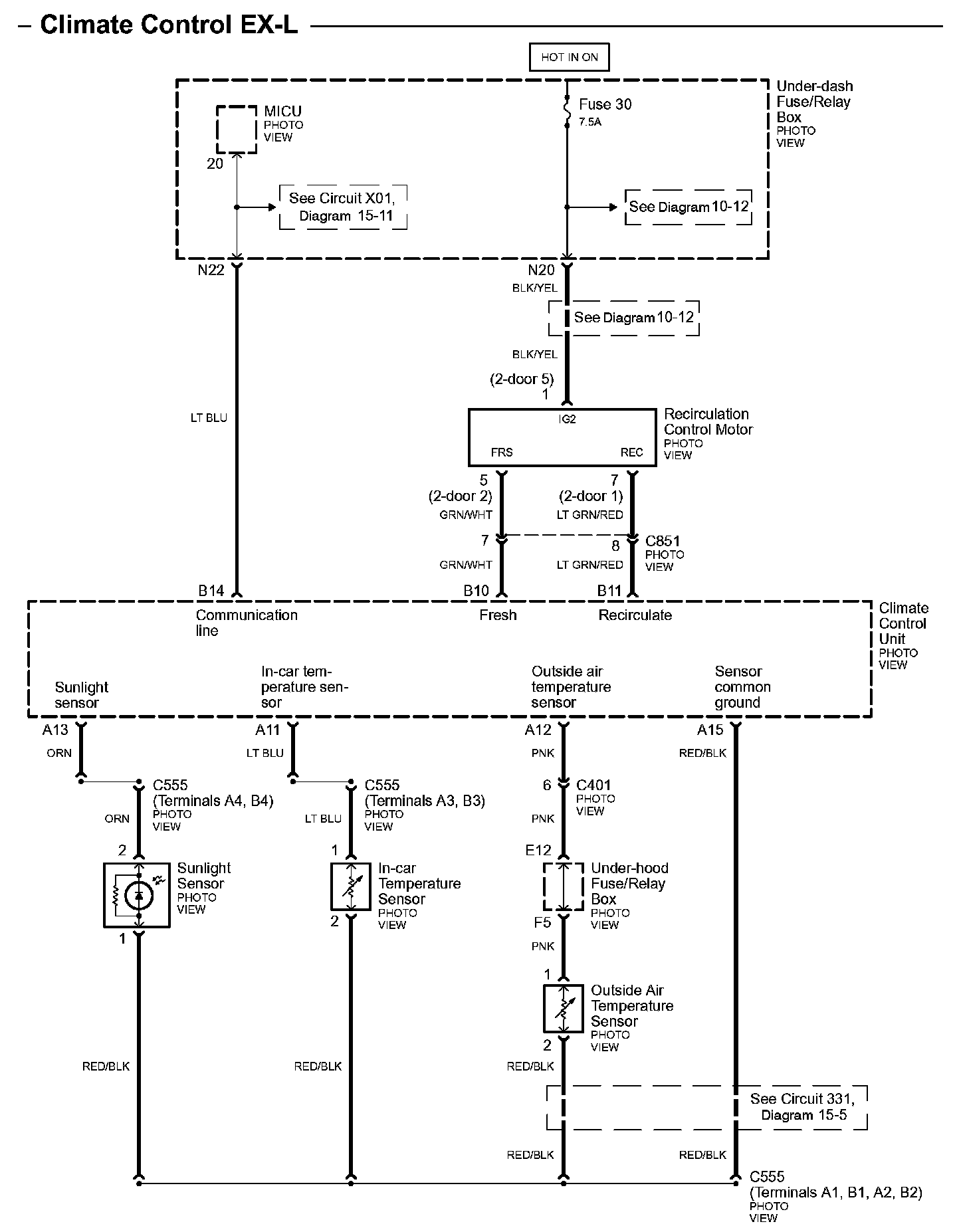

Diagram 60-6 (Climate Control EX-L):

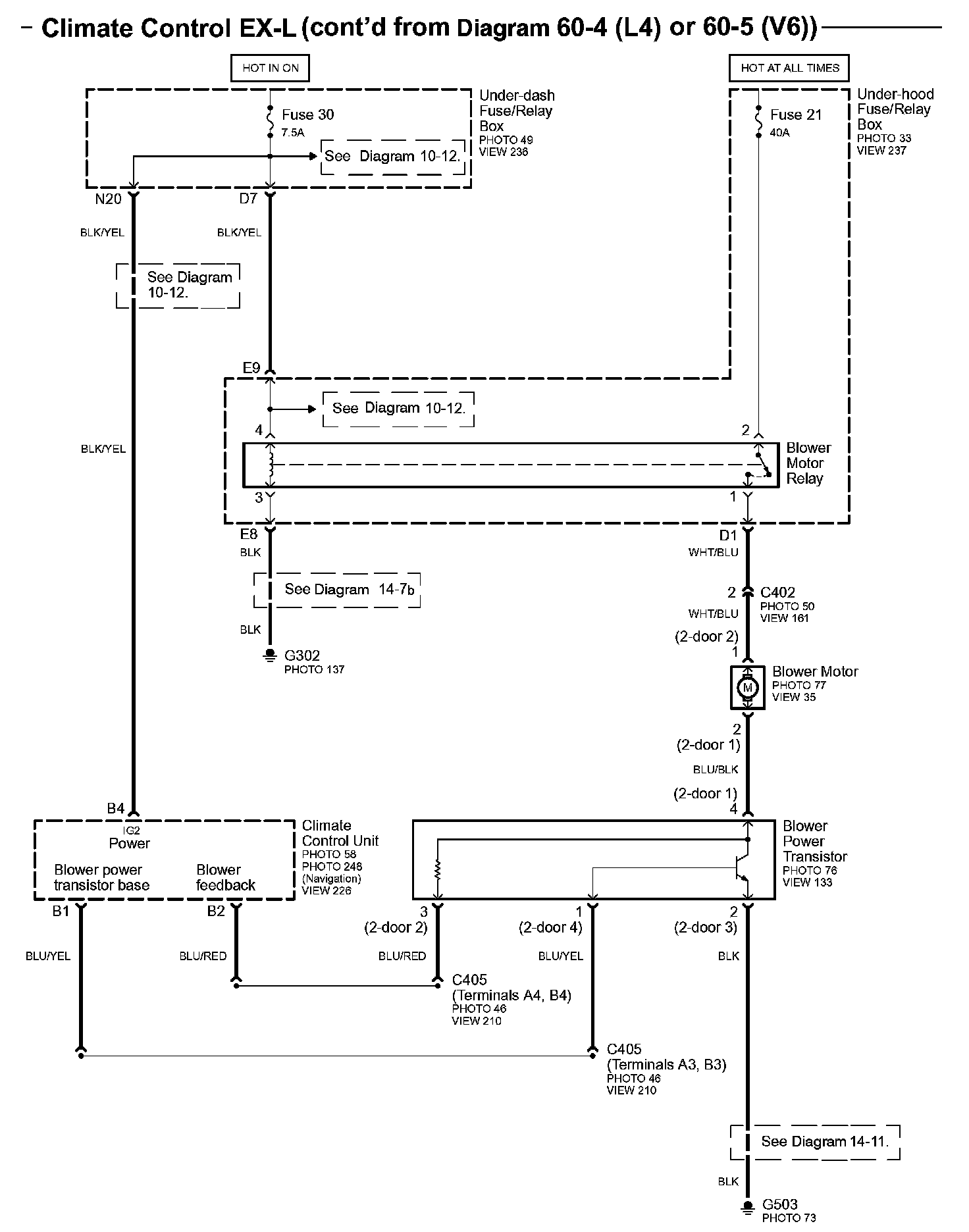

Climate Control EX-L:

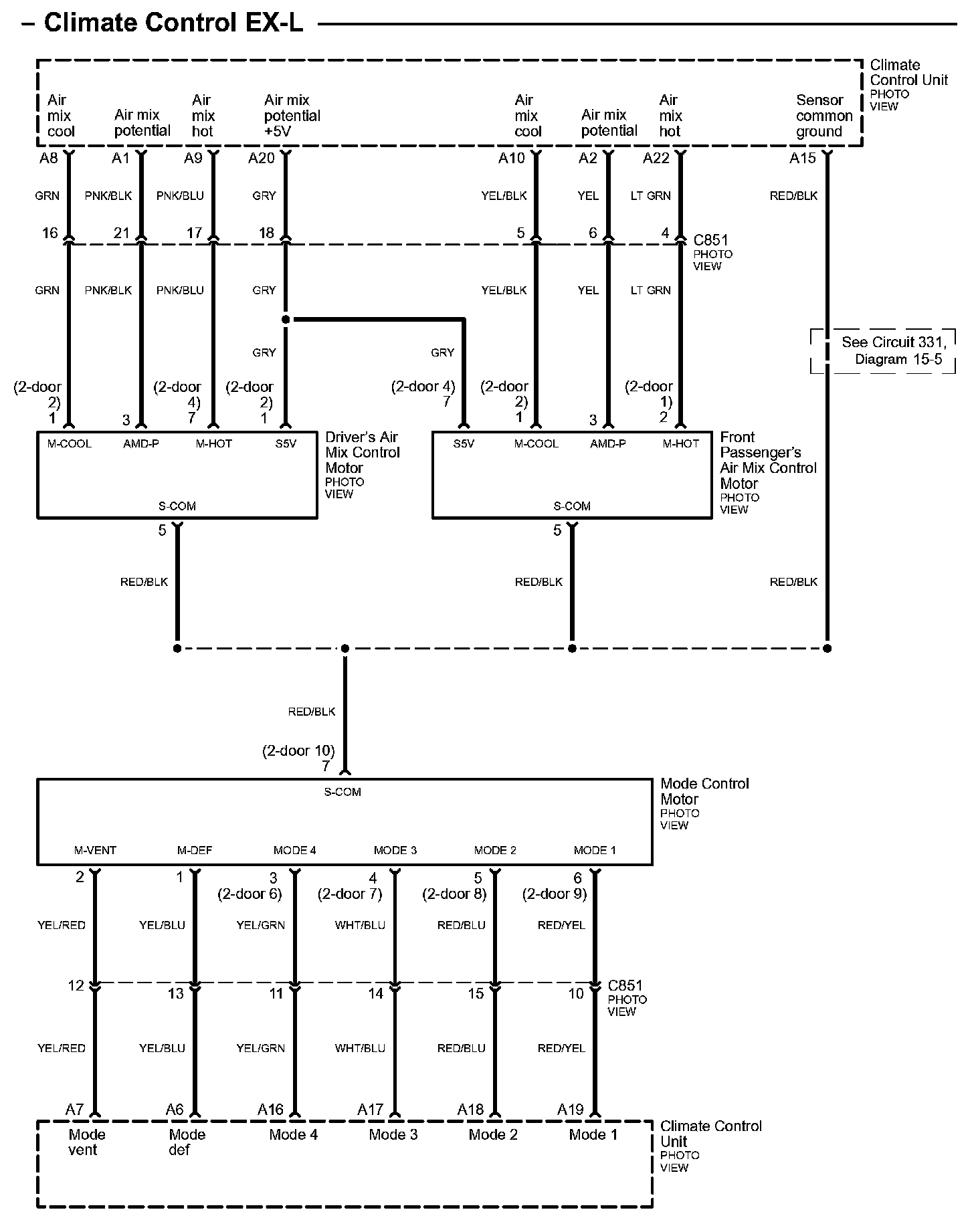

Climate Control EX-L:
