Heating and Air Conditioning: Locations

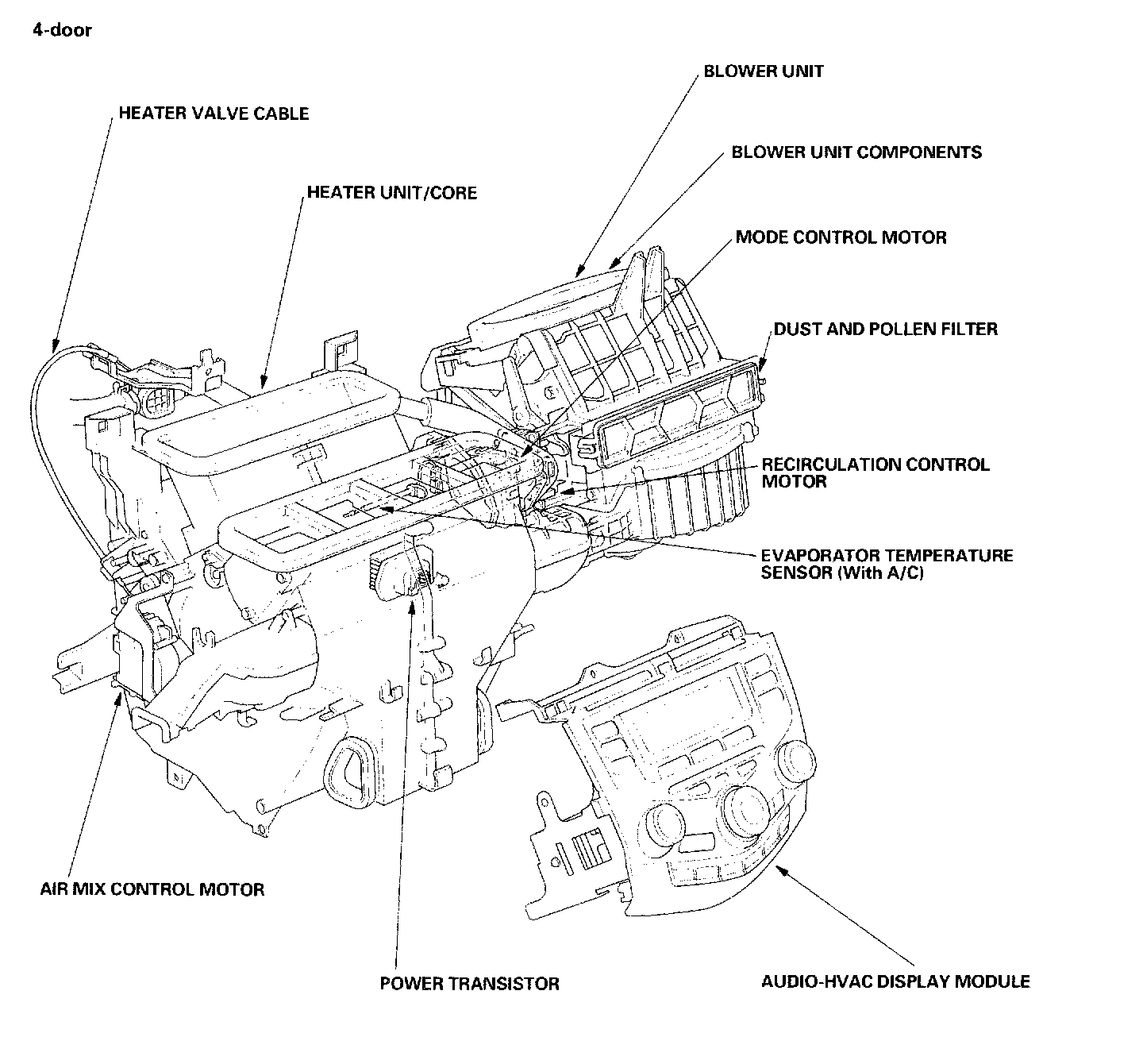

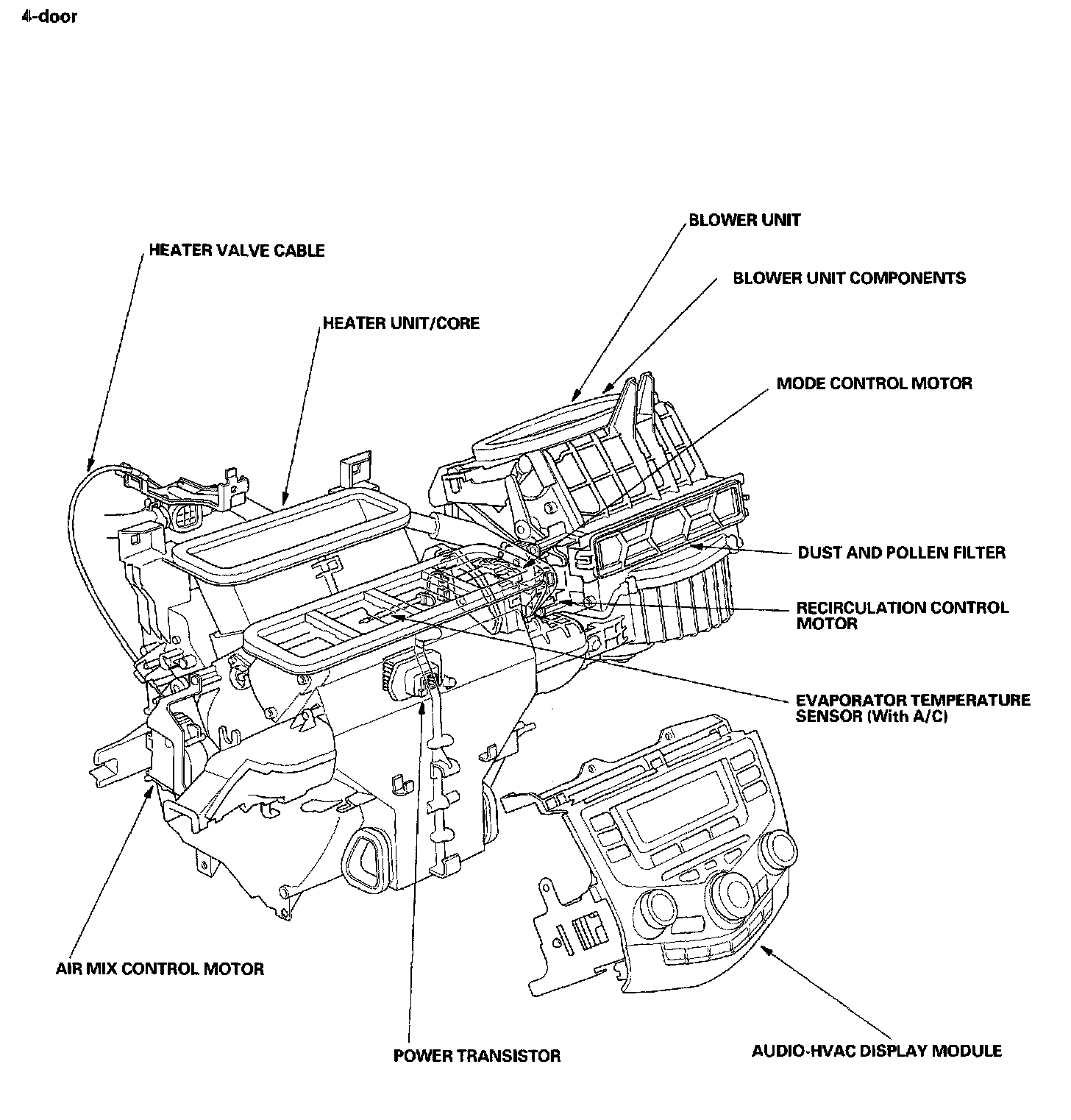

Heating/Air Conditioning Component Location Index (4-door):

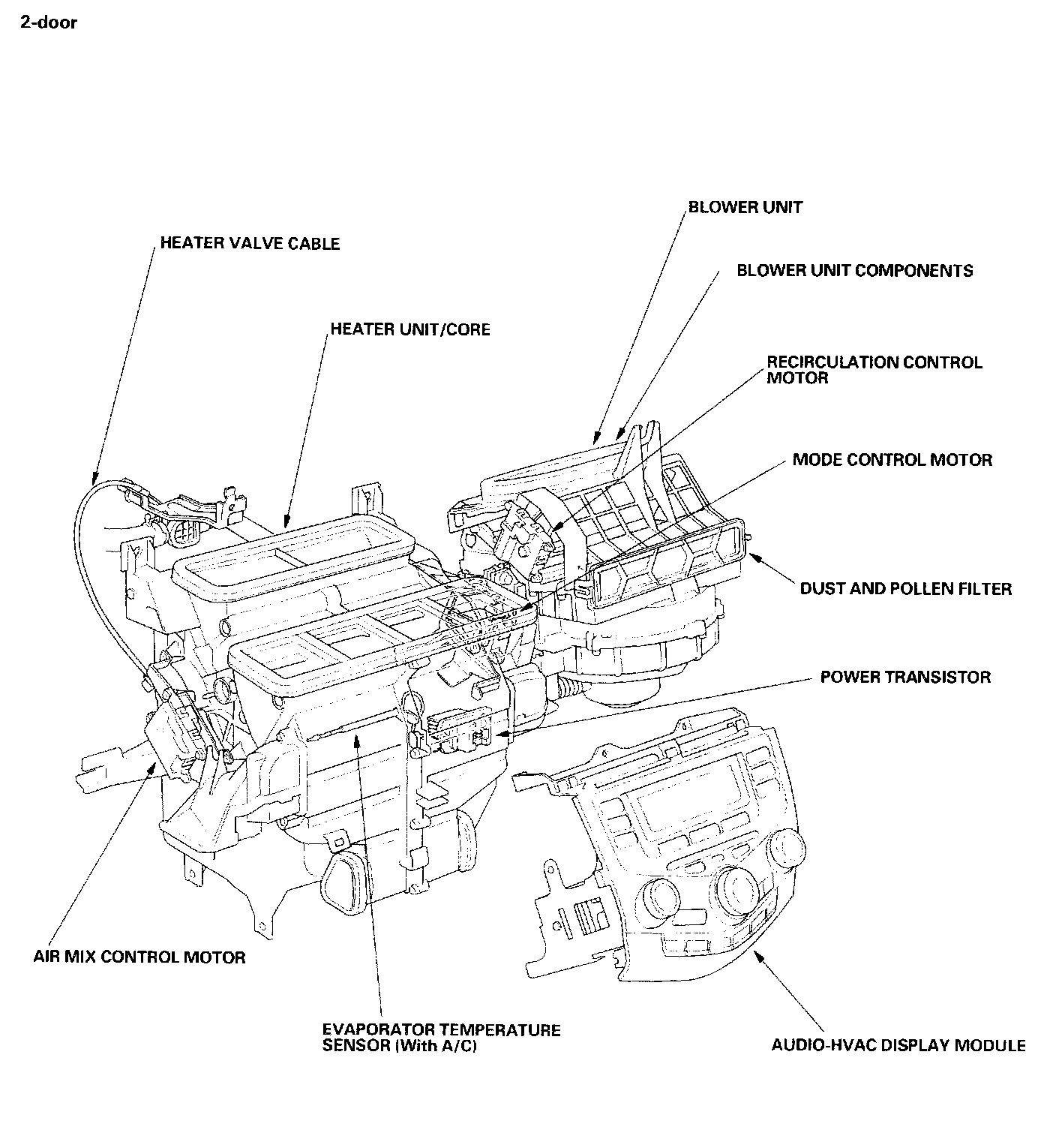

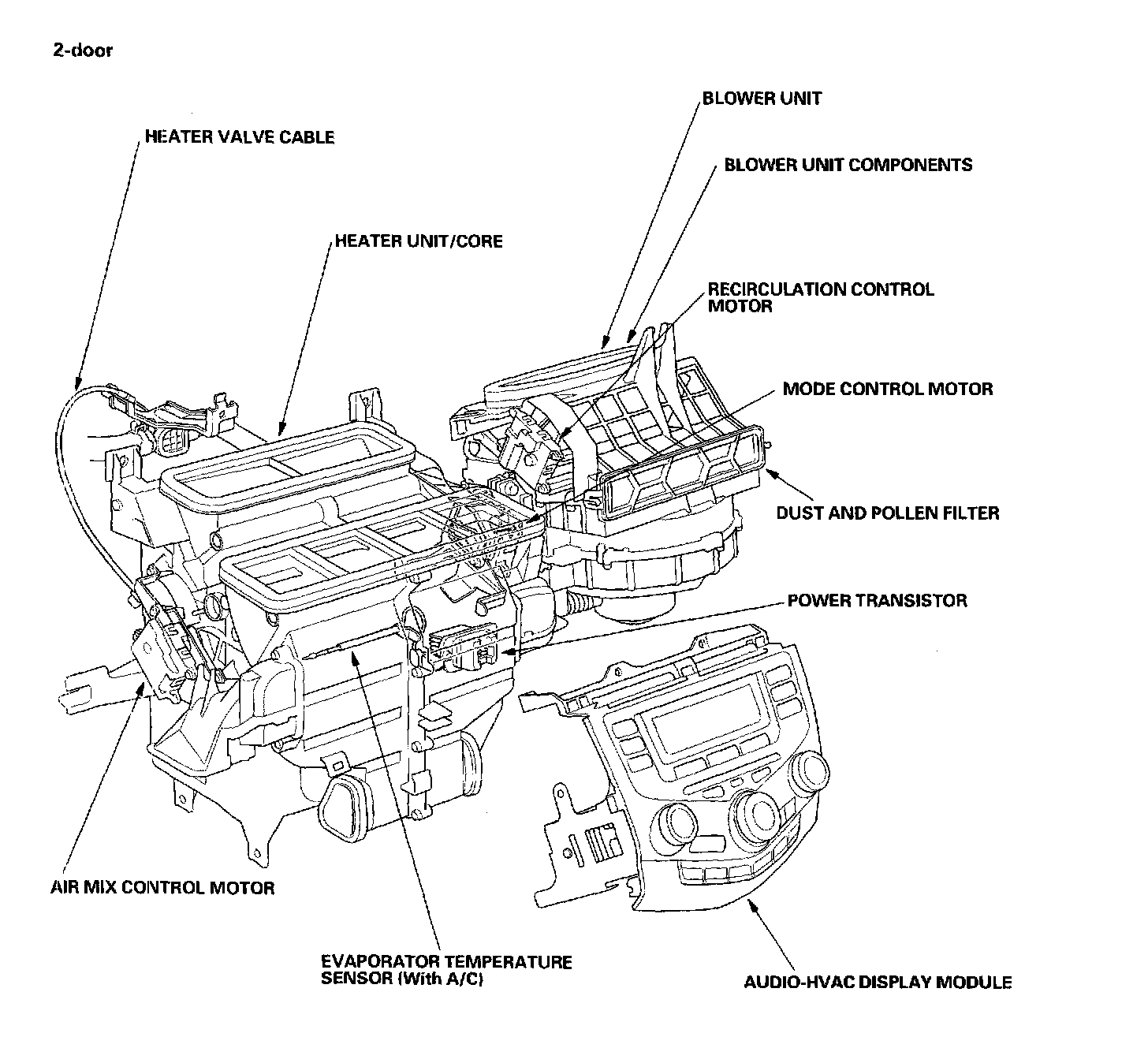

Heating/Air Conditioning Component Location Index (2-door):

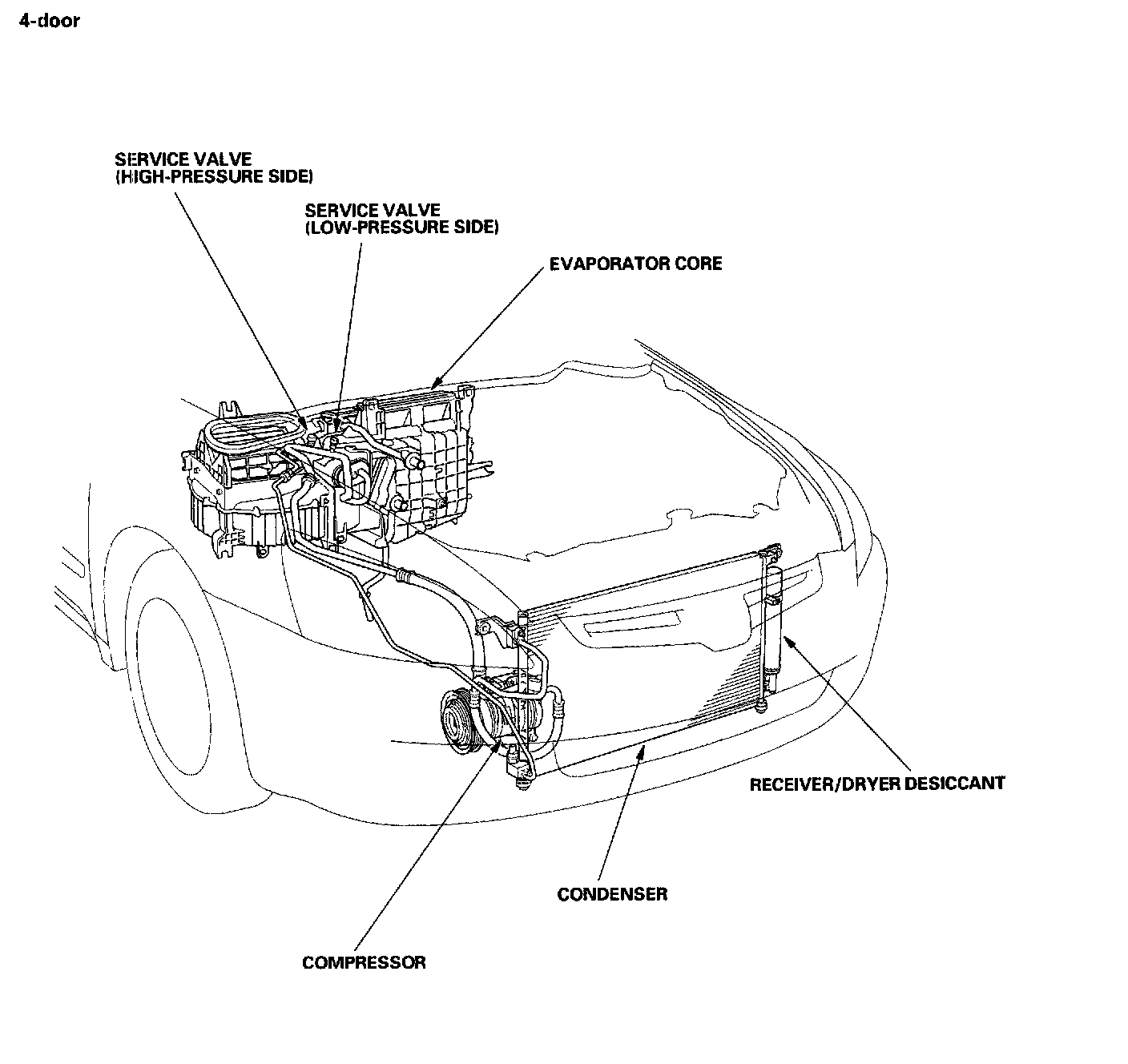

Air Conditioning Component Location Index (4-door):

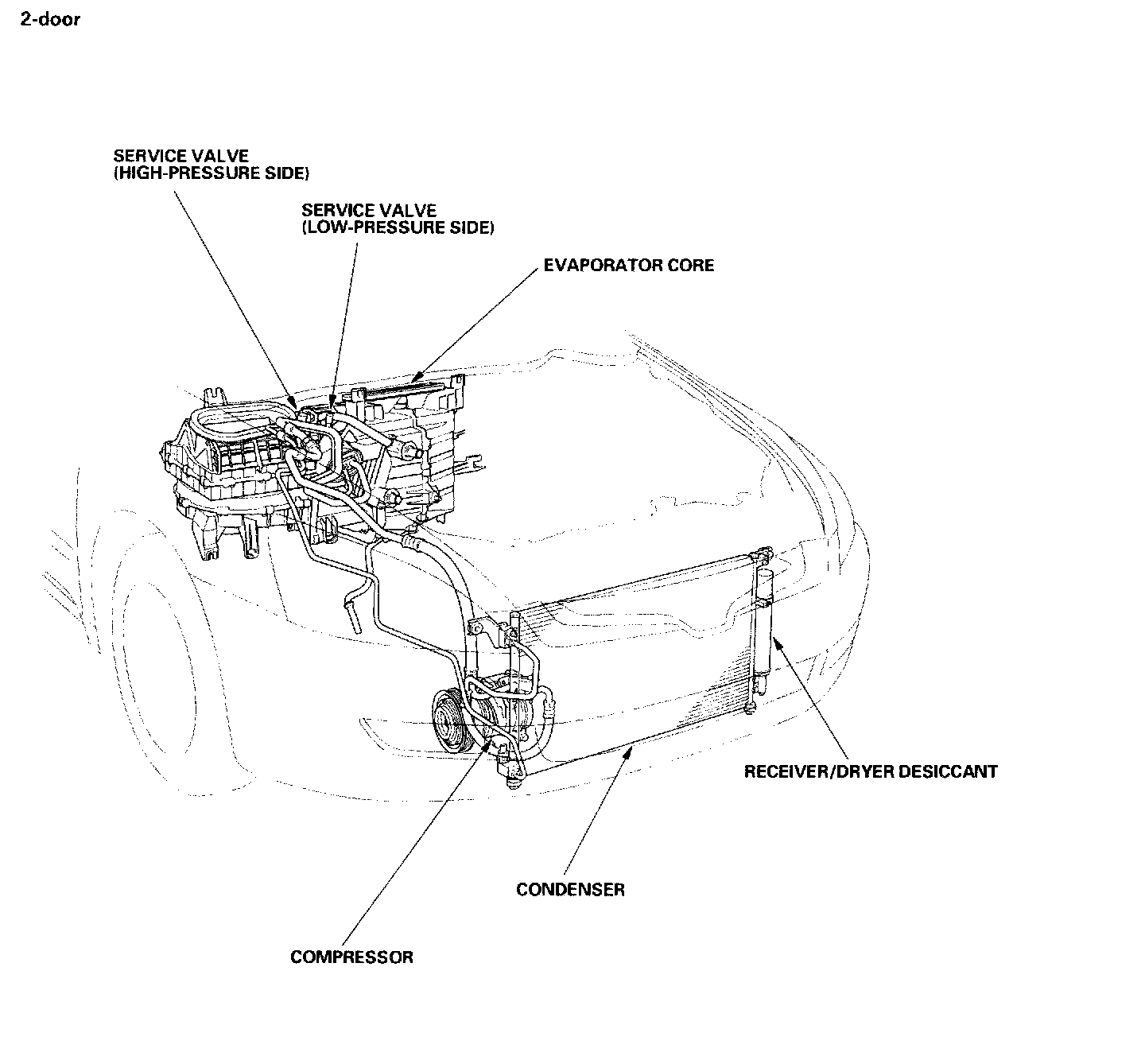

Air Conditioning Component Location Index (2-Door):

Air Conditioning Component Location Index (2-Door):

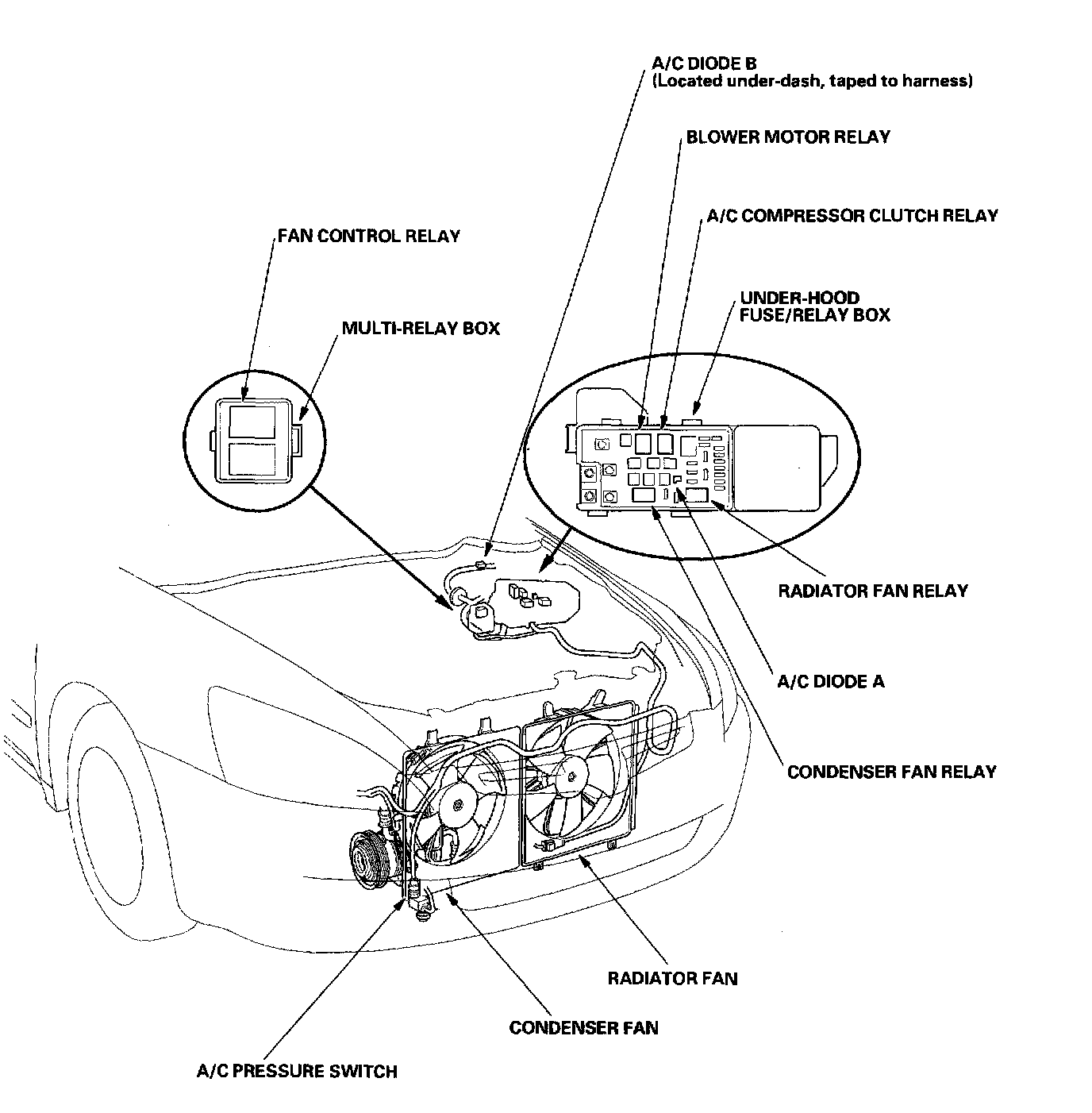

Air Conditioning Component Location Index (4-Door):

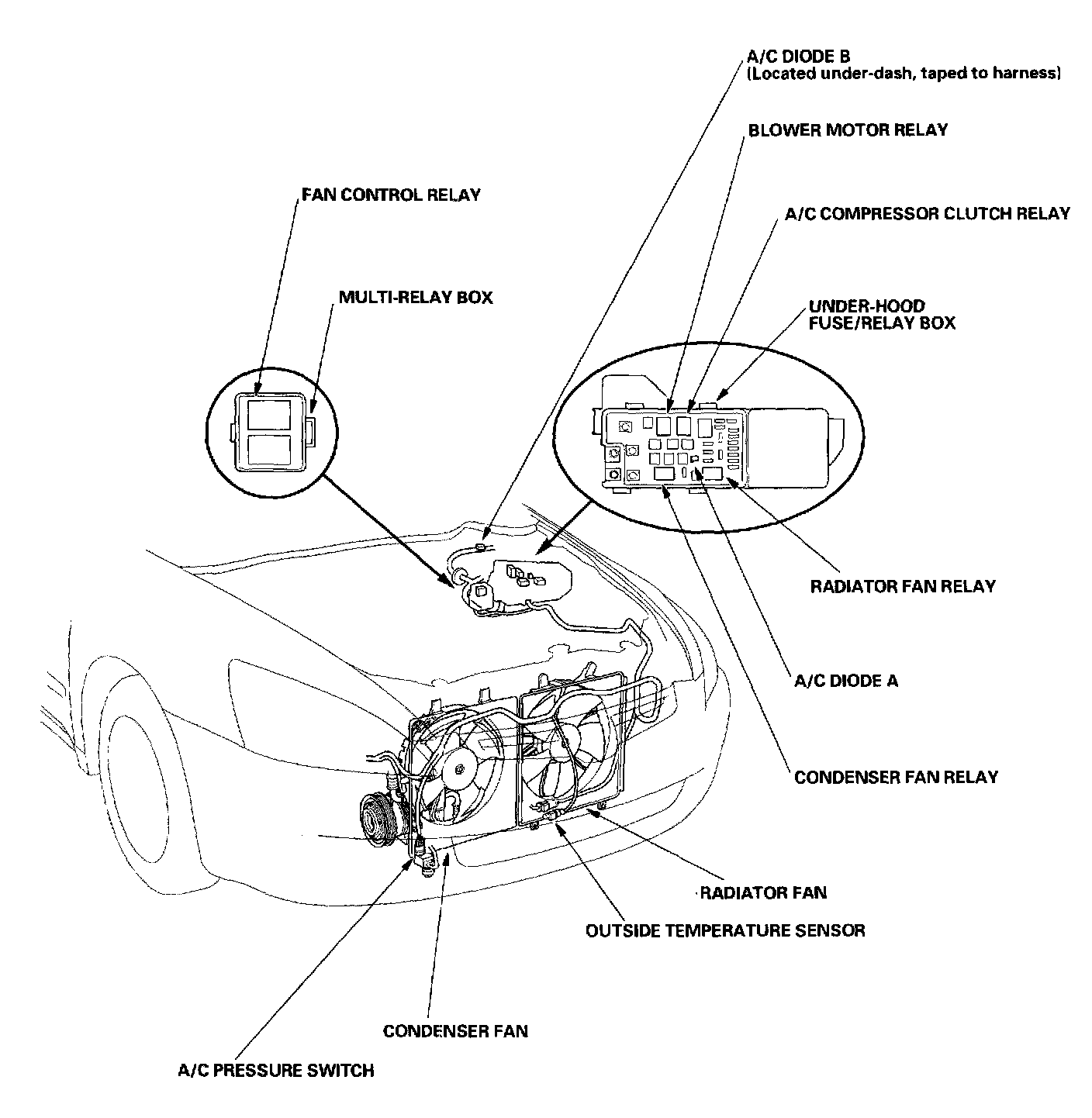

Air Conditioning Component Location Index (2-Door):

Climate Control Component Location Index:

Climate Control Component Location Index (4-door):

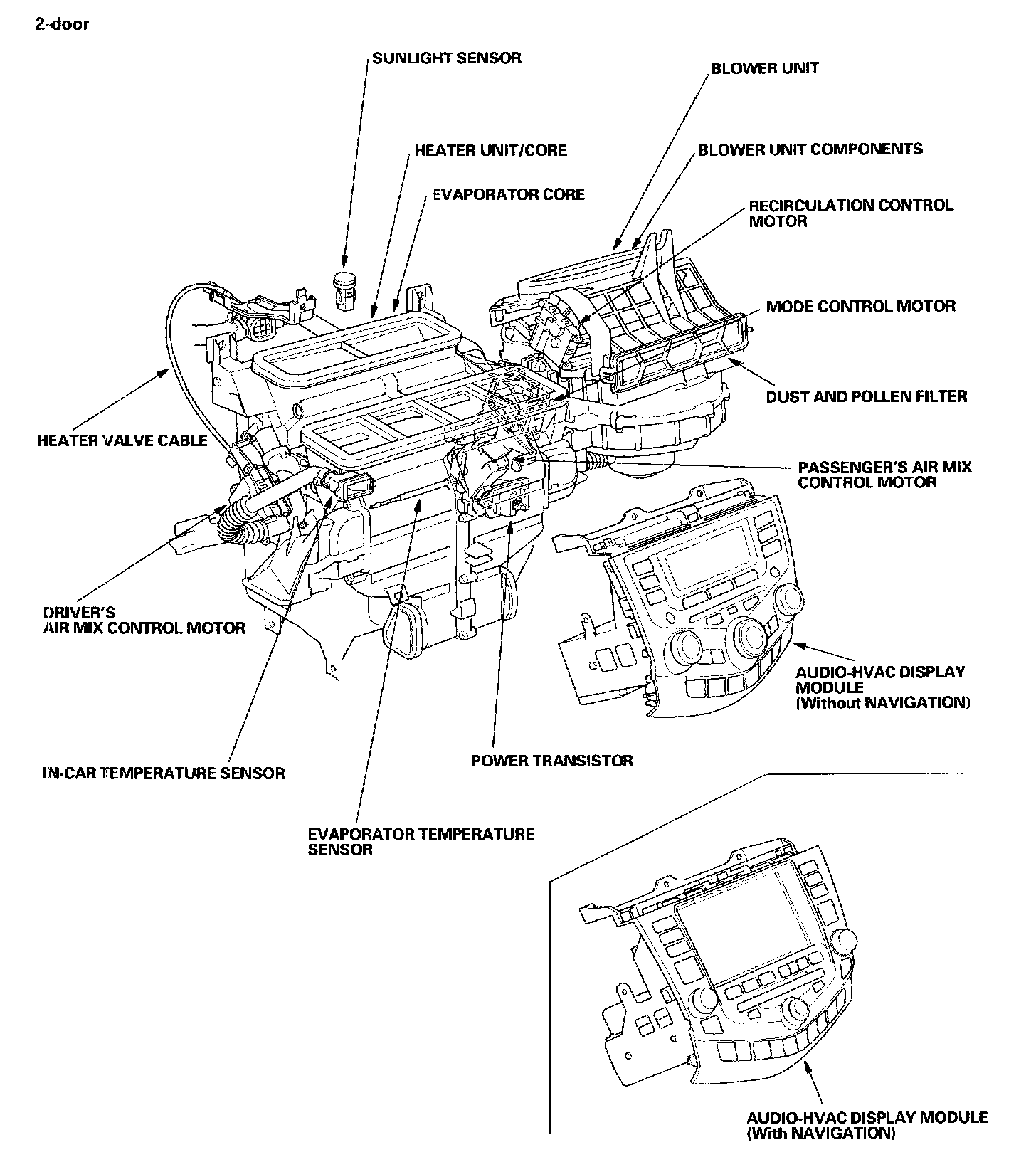

Climate Control Component Location Index (2-door):
