Trunk Lamp Switch: Testing and Inspection

Trunk Latch Switch Test

1. Open the trunk lid.

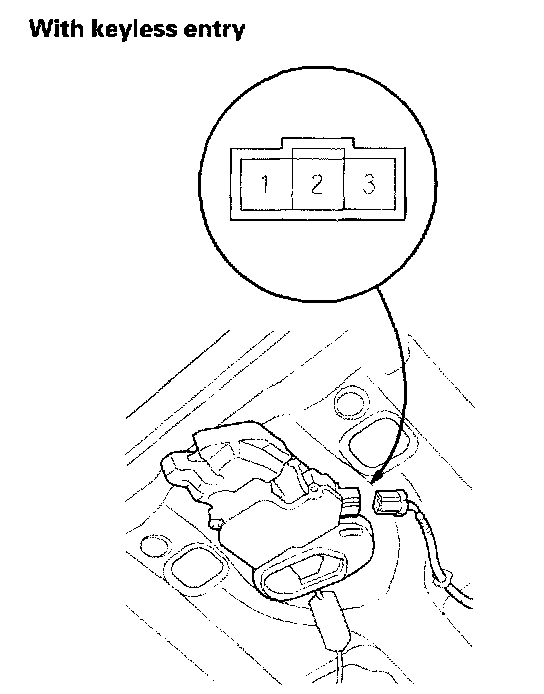

2. Disconnect the 3P (2P) connector (A) from the trunk lid latch (B).
( ):DX
3. Check for continuity between the No.2 (No.1) and No 3 (No.2) terminals.
( ):DX

- There should be continuity with the trunk lid latch unlatched (trunk open).
- There should be no continuity with the trunk lid latch latched (trunk closed).

4. If the continuity is not as specified, replace the trunk lid latch switch.
