Front Engine Compartment Wire Harness (Left Branch)

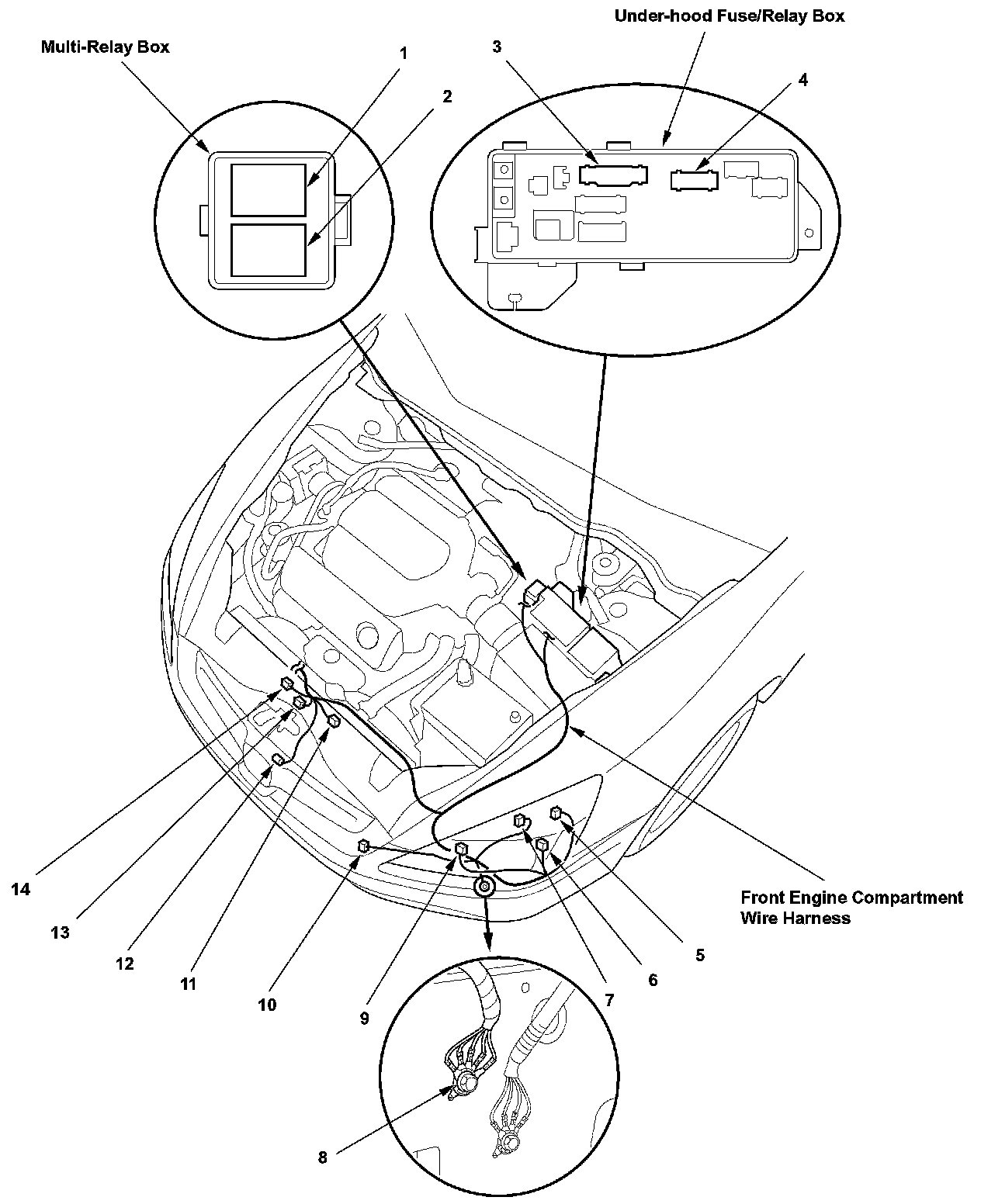

Harness Location View:

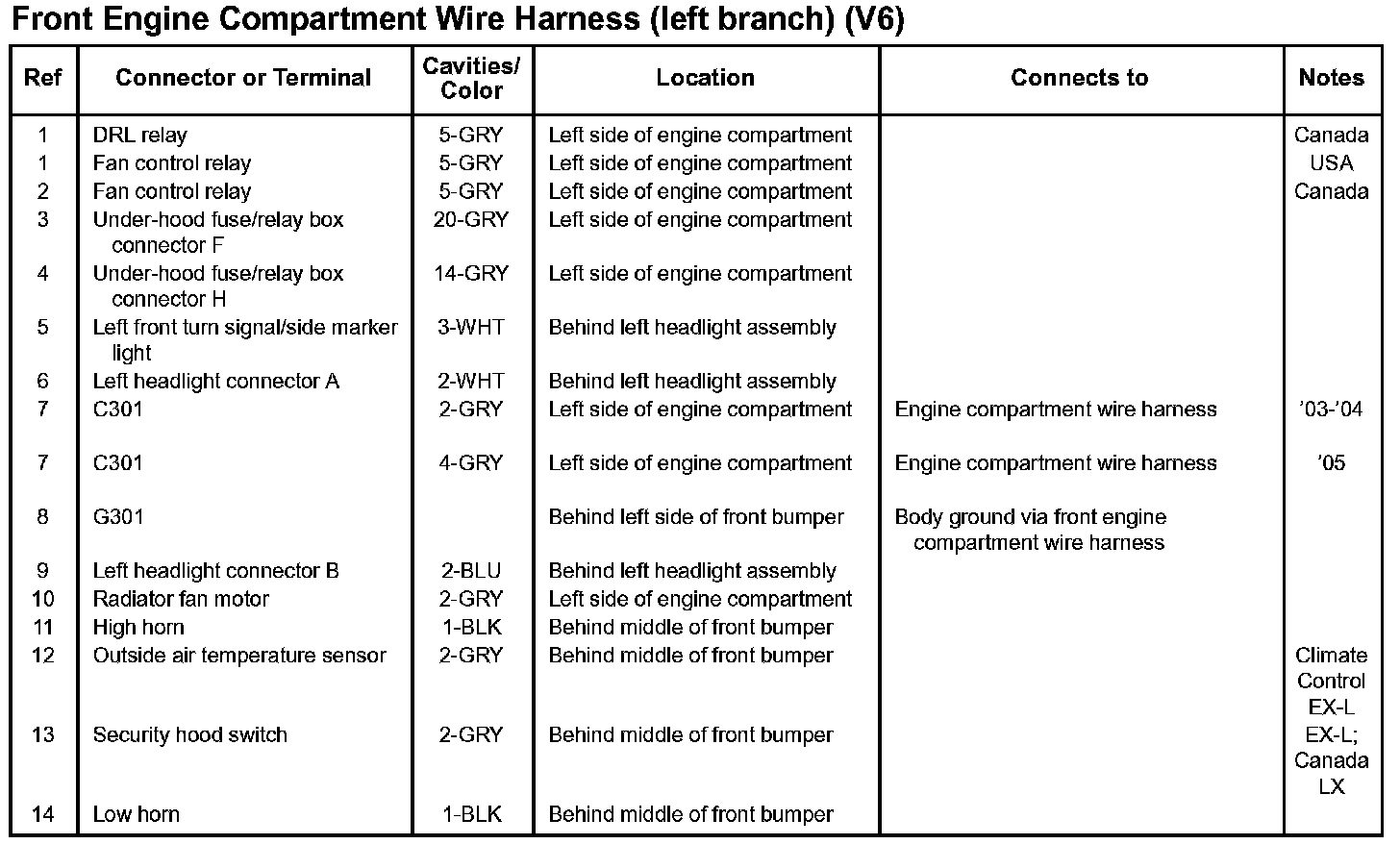

Front Engine Compartment Wire Harness (left Branch):
