Engine Control Module: Locations

Relay And Control Unit Locations - Dashboard:

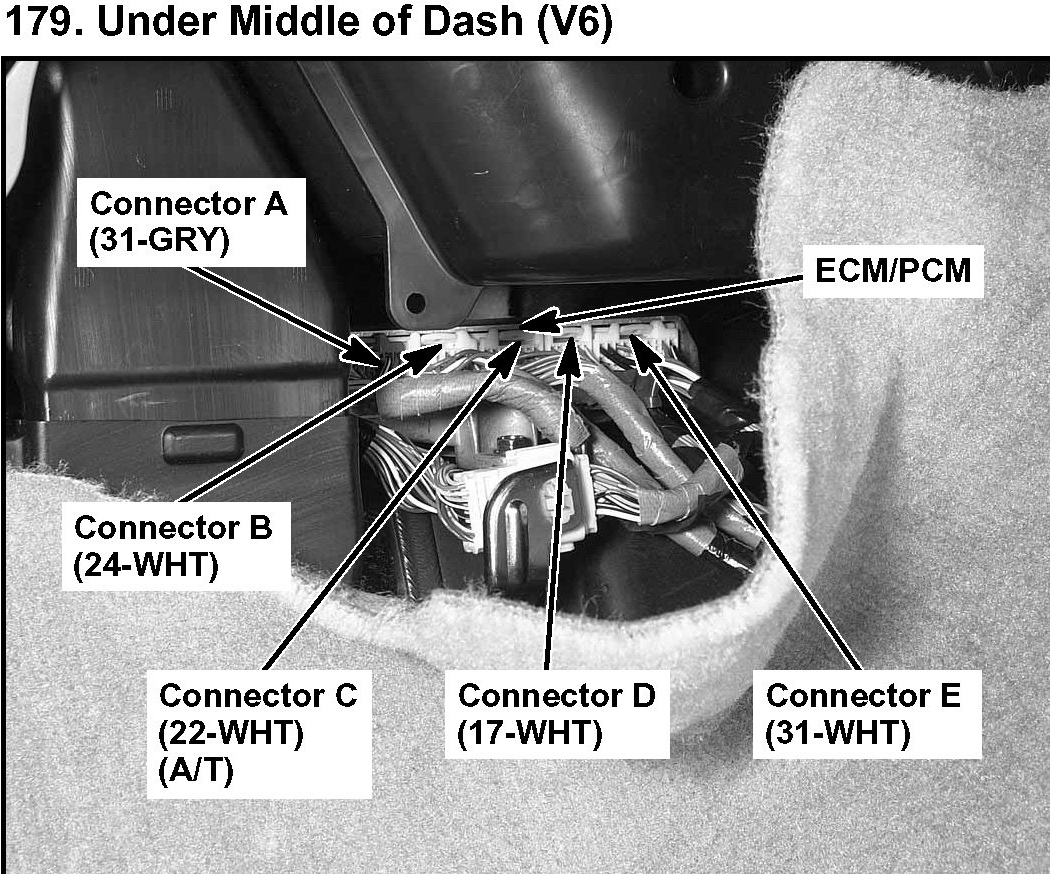

179. Under Middle Of Dash:
