Power Seat Switch: Diagrams

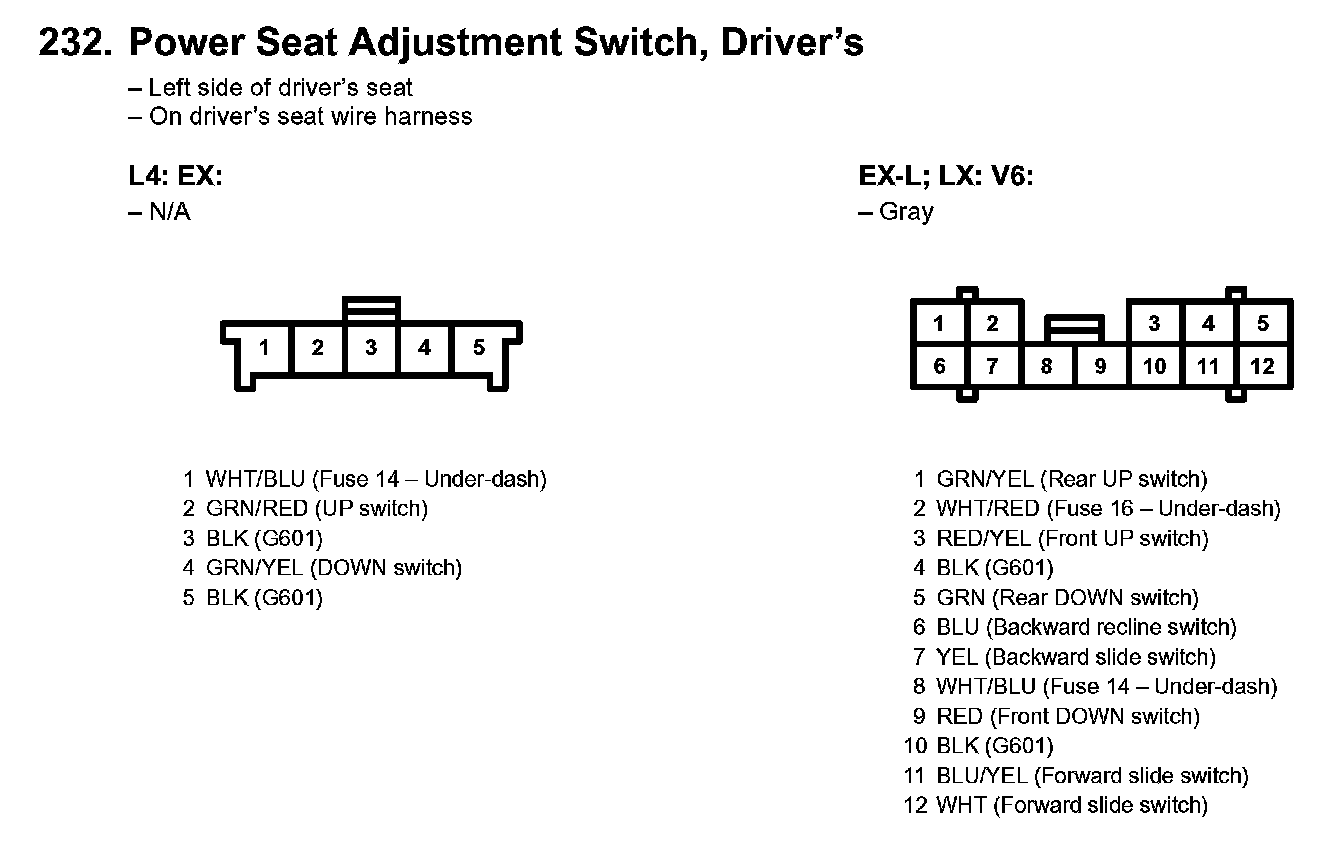

232. Power Seat Adjustment Switch, Driver's:

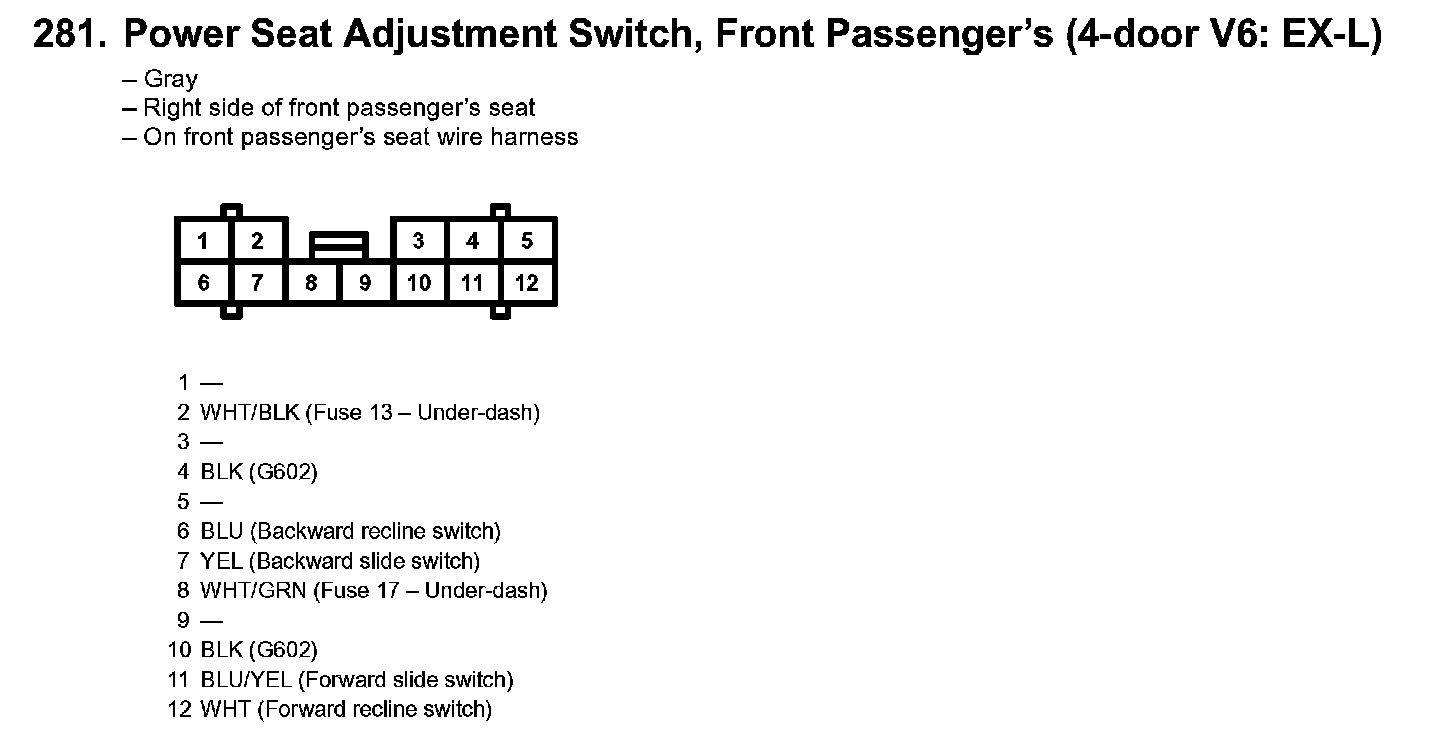

281. Power Seat Adjustment Switch, Front Passenger's (4-door V6: EX-L):
