Engine - Coolant Temperature Sensor/Switch: Locations

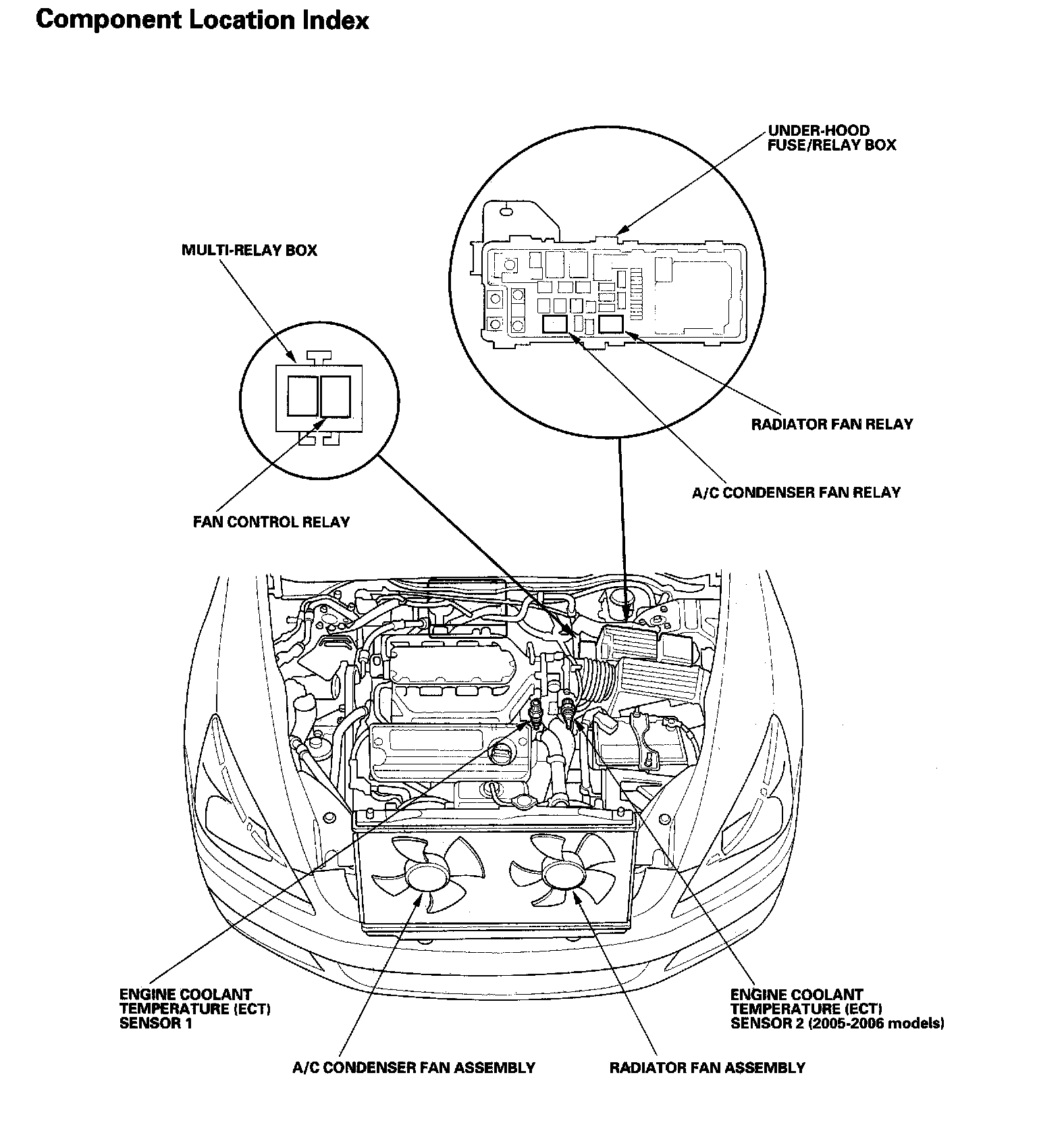

Fan Controls Component Location Index:

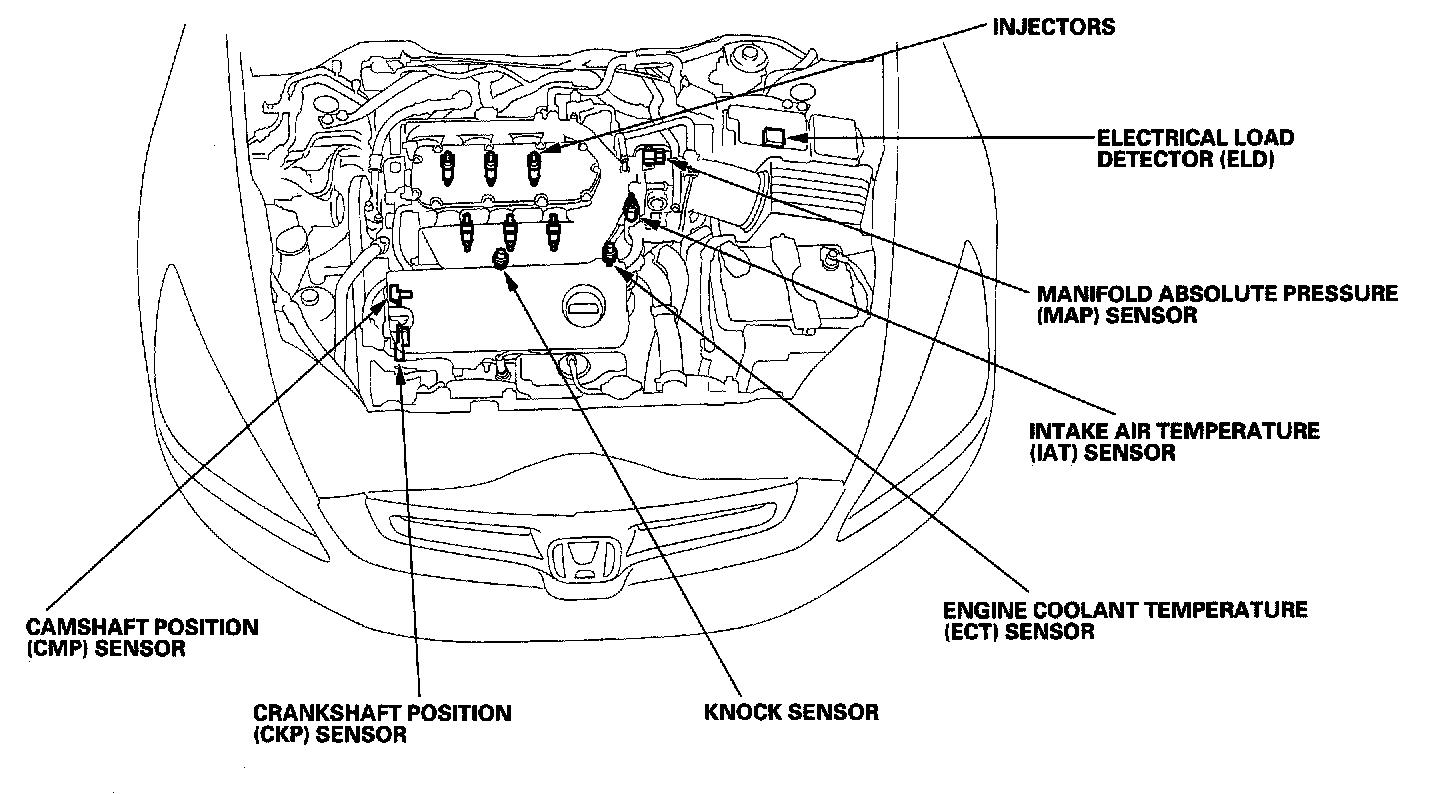

PGM-FI System - Component Location Index Part 1:

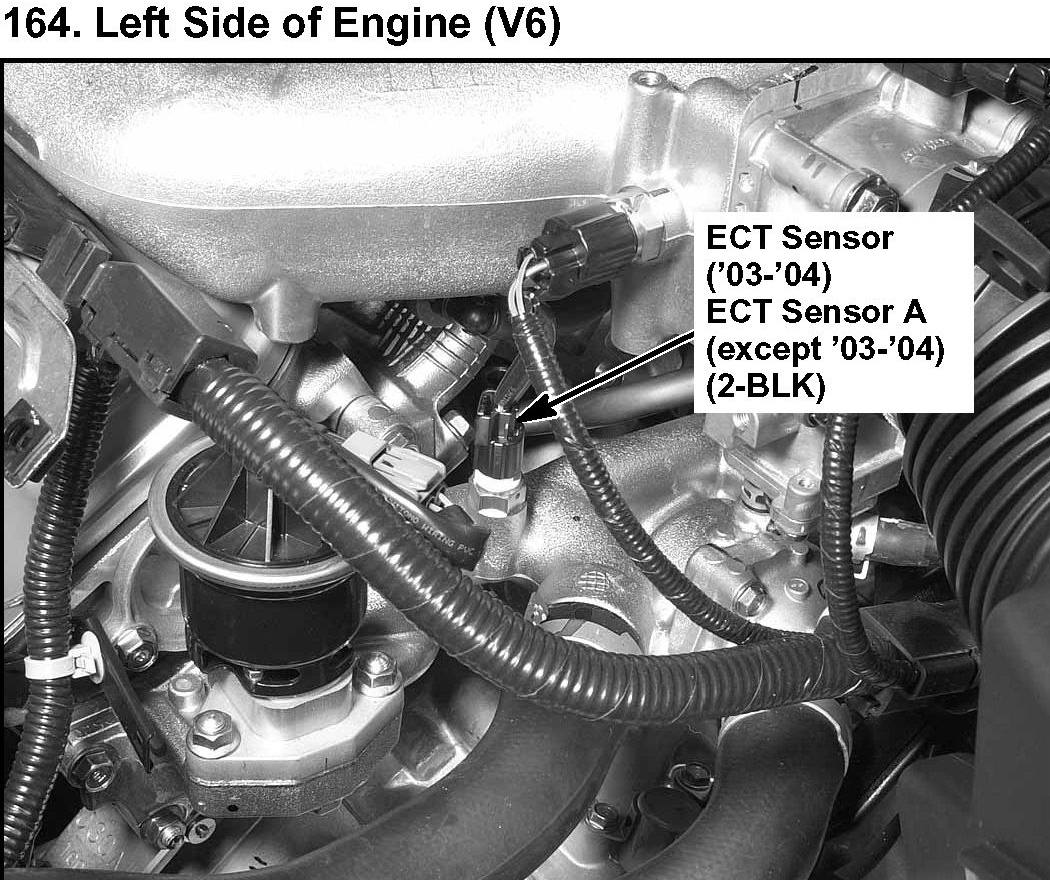

164. Left Side Of Engine:
