Window Glass: Service and Repair

Emblem/Sticker Replacement

2-door

NOTE: When removing the emblems/sticker, take care not to scratch the body.

1. Clean the body surface with a sponge dampened in alcohol After cleaning, keep oil, grease, and water from getting on the surface

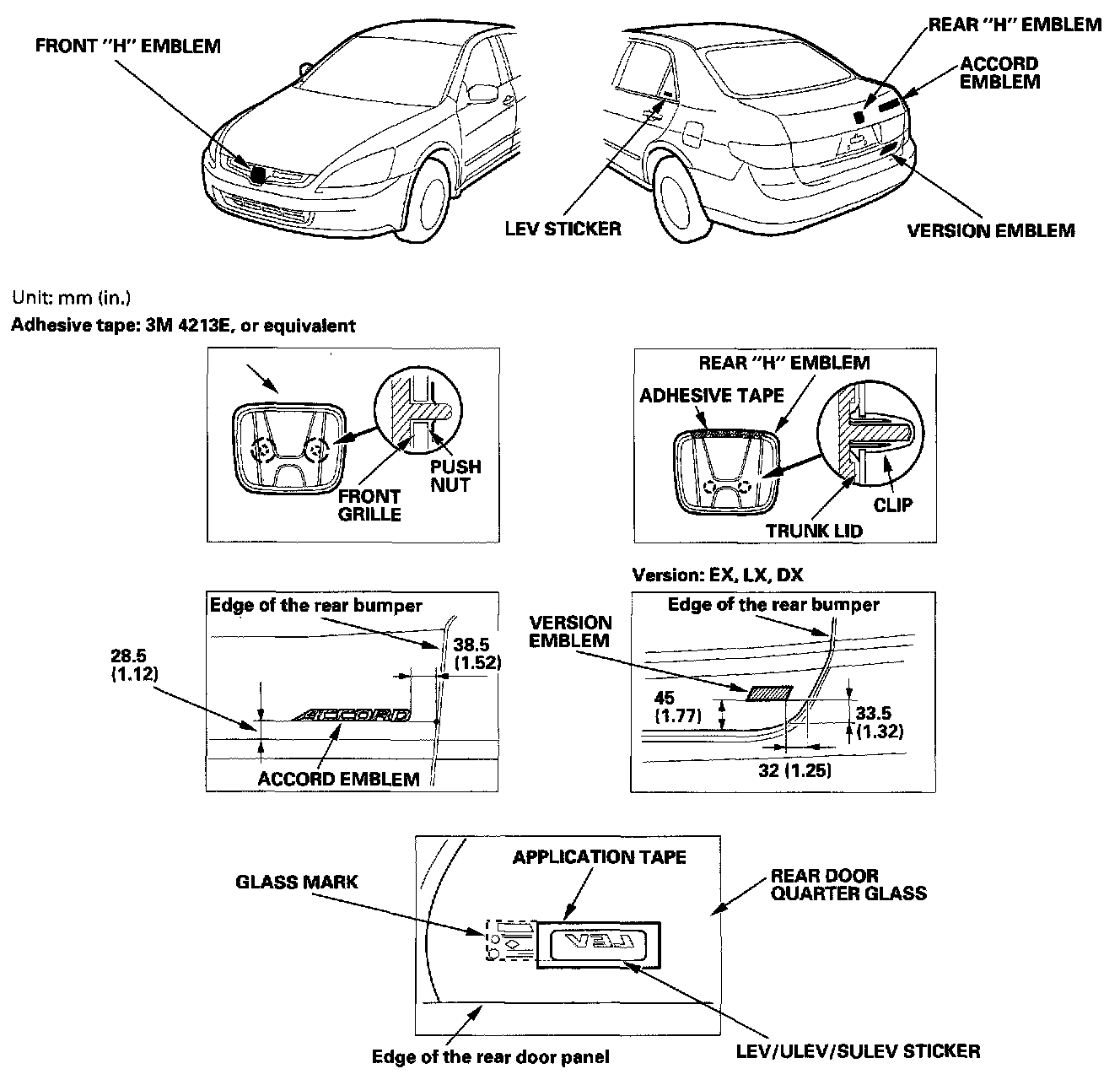

2. Apply the emblem/sticker where shown. When installing the LEV/ULEV sticker on the inside surface of the quarter glass, align the sticker application tape with the edge of the black ceramic and alignment mark on the quarter glass, then press the sticker into place, and remove the application tape.

4-door

NOTE: When removing the emblems/sticker, take care not to scratch the body.

1. Clean the body surface with a sponge dampened in alcohol. After cleaning, keep oil, grease, and water from getting on the surface.




2. Apply the emblem/sticker where shown. When installing the LEV/ULEV/SULEV sticker on the inside surface of the rear door quarter glass, align rear edge of the application tape and bottom of the sticker with the glass mark, then press the sticker into place, and remove the application tape.
