Steering Hanger Beam Replacement
Steering Hanger Beam ReplacementNOTE:
- Have an assistant help you when removing and installing the steering hanger beam.
- Take care not to scratch the dashboard.
- Put on gloves to protect your hands.
1. Remove the dashboard.
2. Remove these items from the dashboard:
- Instrument panel
- Gauge assembly
- Shift lever, A/T model
- Audio unit
- Passenger's airbag
3. Remove the bolts from the dashboard.
4. Detach the harness clips.
5. From the back of the dashboard, remove the screws.

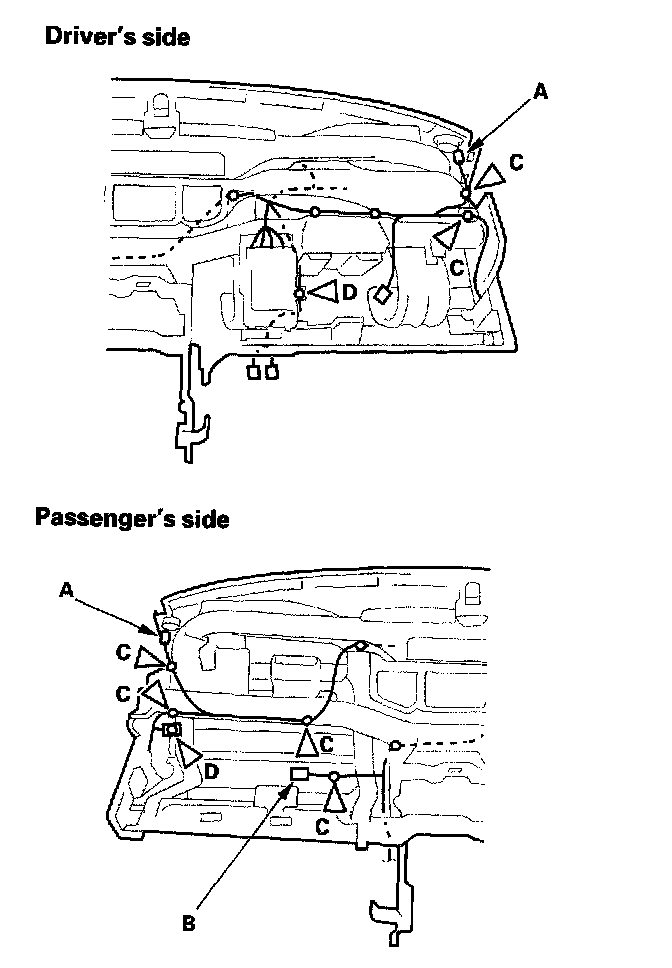

6. From the back of the dashboard, disconnect the tweeter connectors (A) (for some models) from both sides and the glove box light connector (B) (for some models), and detach the harness clips (C) and harness holders (D).

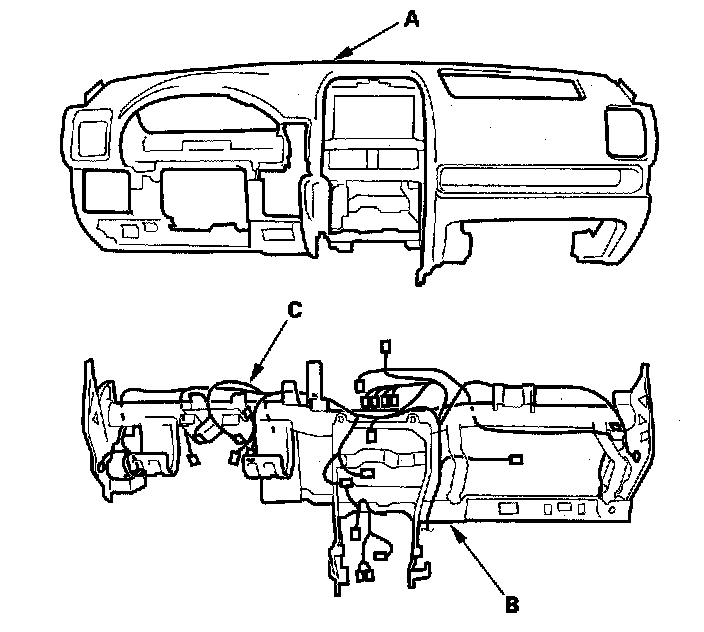

7. With the help of an assistant, separate the dashboard (A) and steering hanger beam (B).
8. Install the beam in the reverse order of removal, and note these items:
- Make sure the dashboard wire harness (C) is not pinched.
- Make sure the connectors are plugged in properly.
