Home >> Honda >> 2003 >> CR-V 2WD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> Views 226-245 >> 239

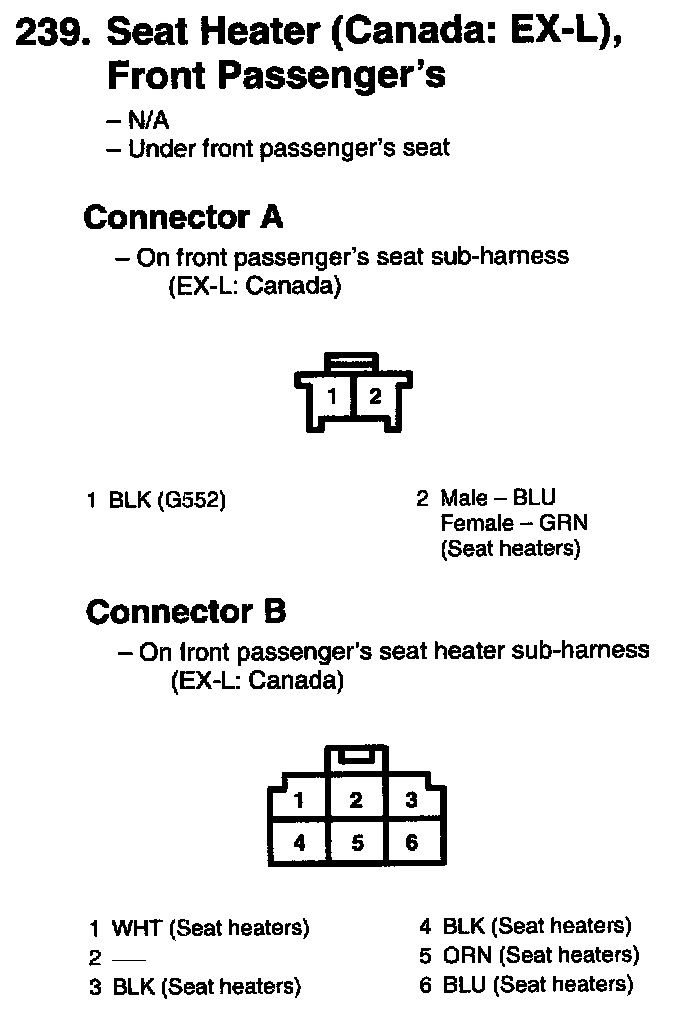

Views 226-245: 239

(Canada: EX-L):
