Power Transistor HVAC: Locations

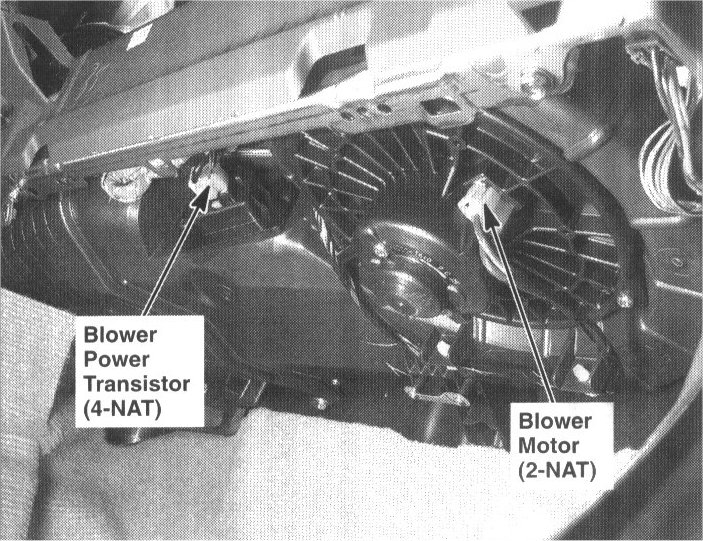

87. Under Right Side Of Dash:



Heating And Air Conditioning - Component Location Index 1:
