ECM/PCM Terminal Values

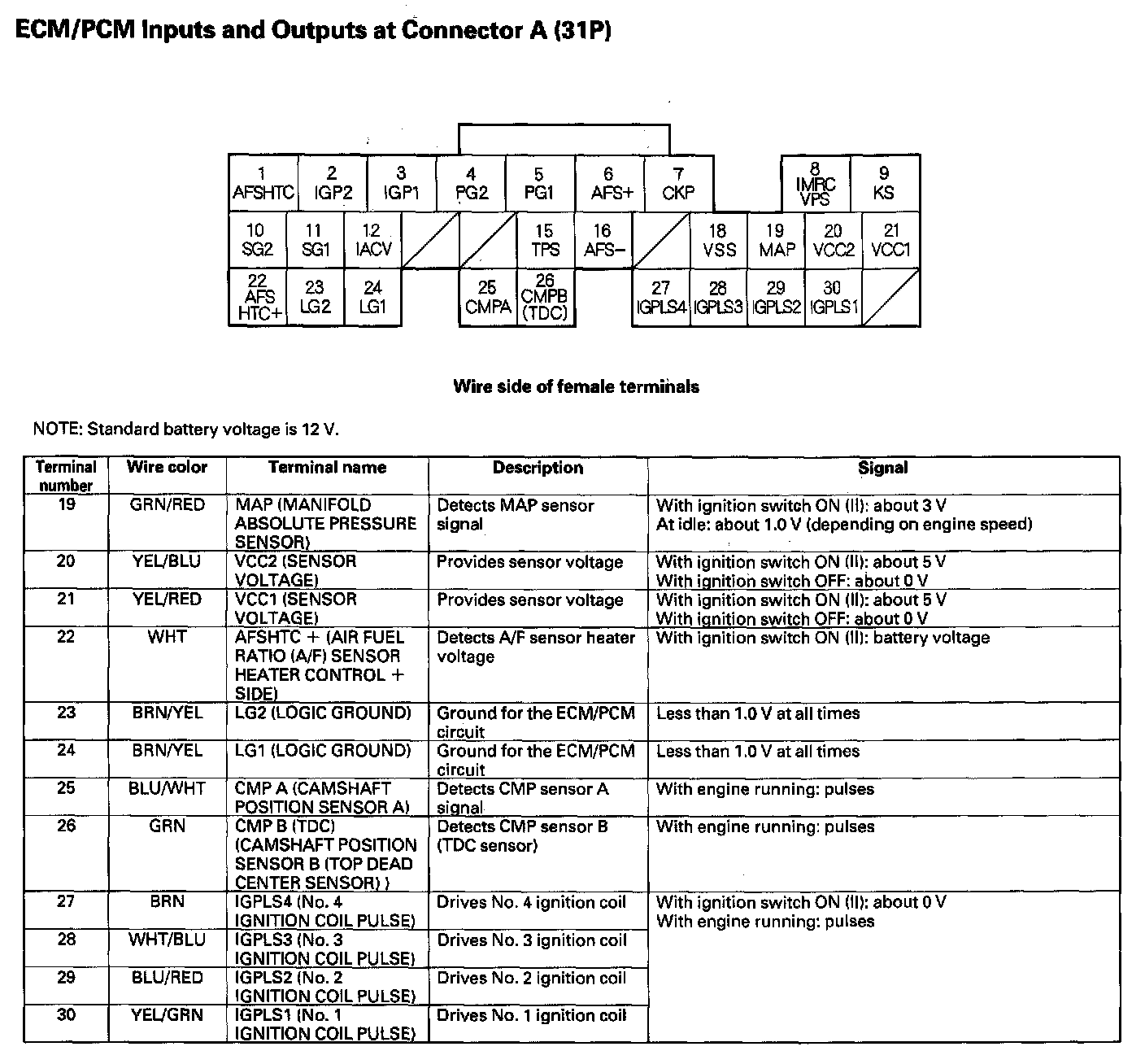

ECM/PCM Inputs and Outputs at Connector A (31P):

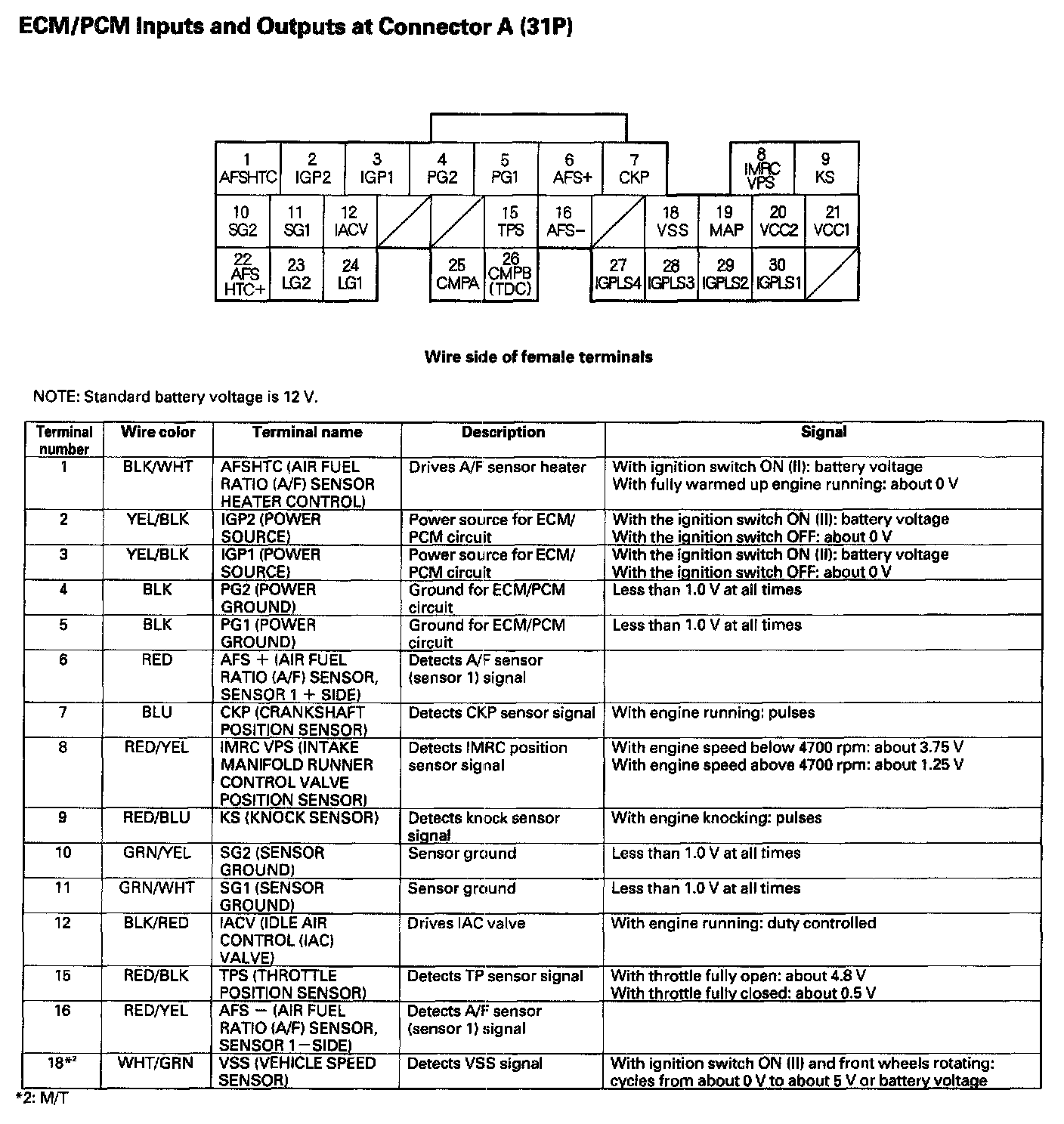

ECM/PCM Inputs and Outputs at Connector A (31P):

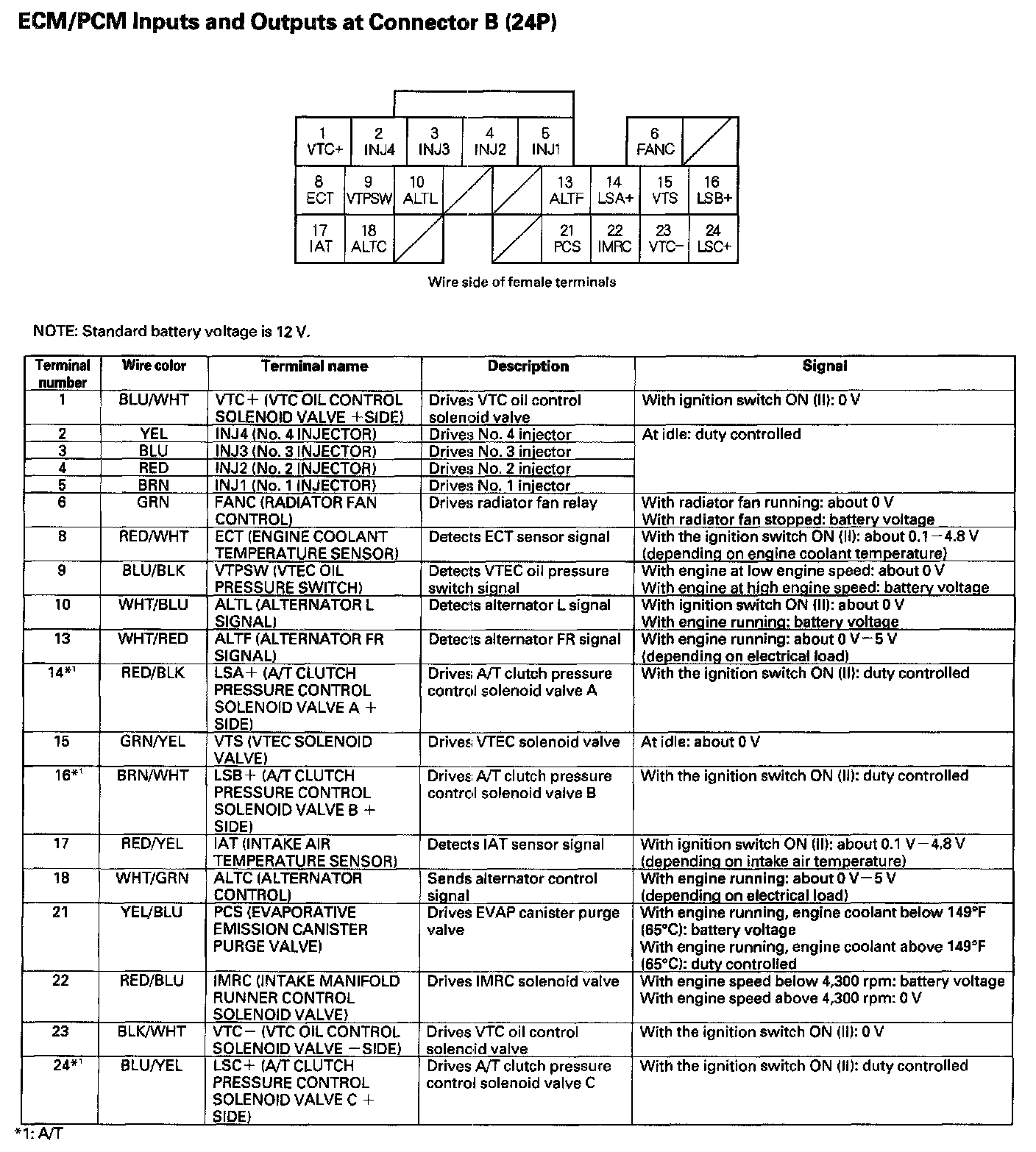

ECM/PCM Inputs and Outputs at Connector B (24P):

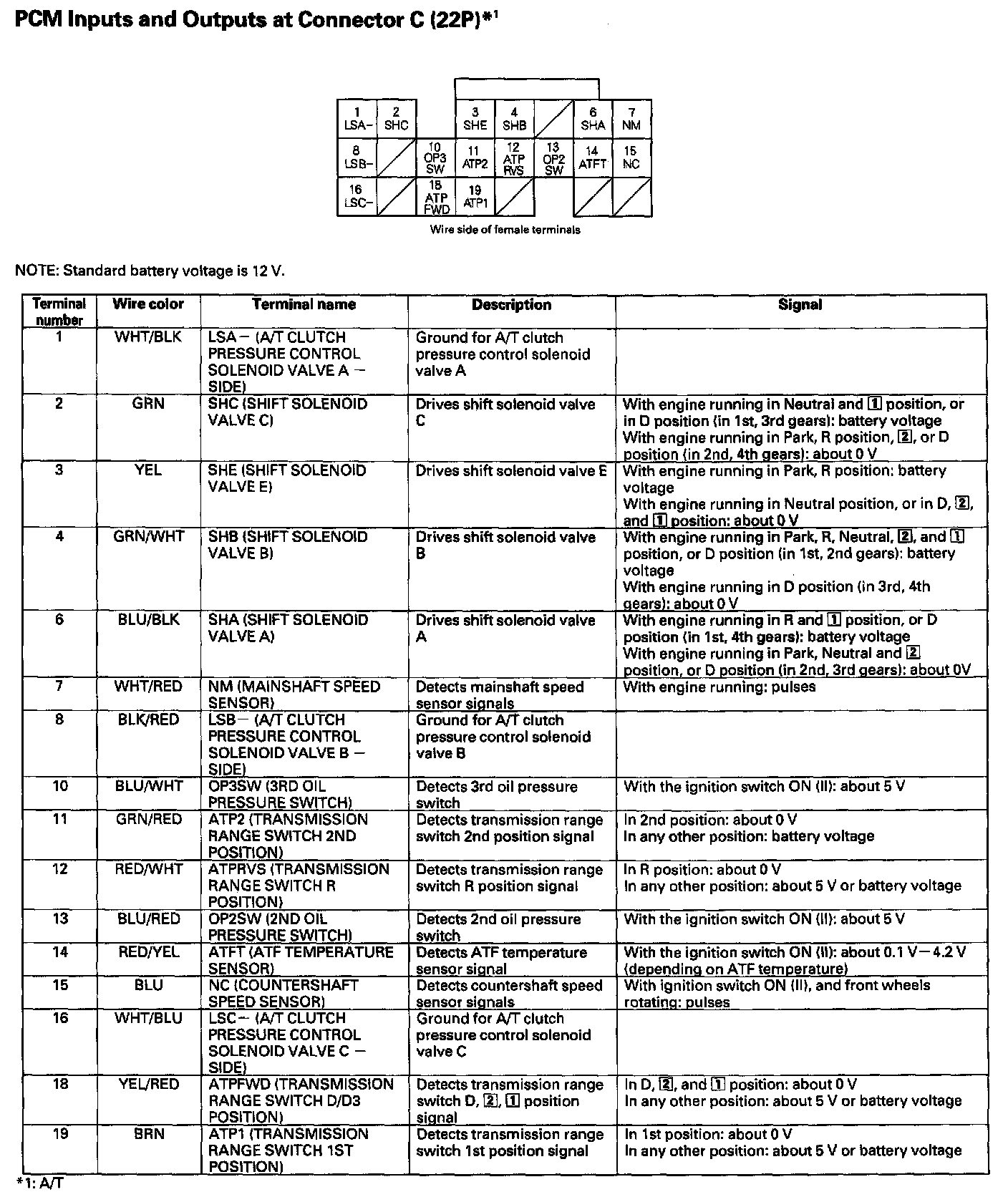

PCM Inputs and Outputs at Connector C (22P):

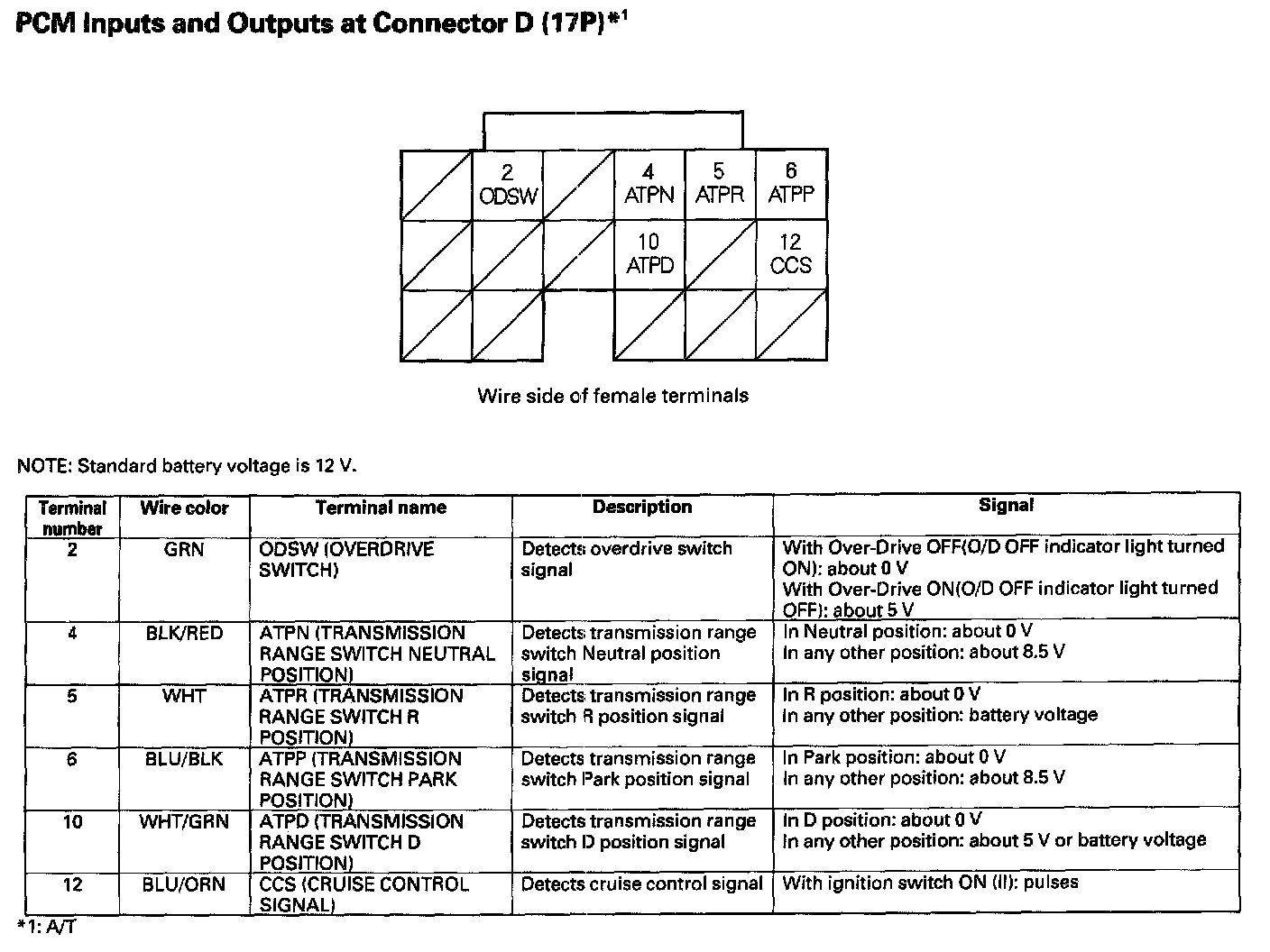

PCM Inputs and Outputs at Connector D (17P):

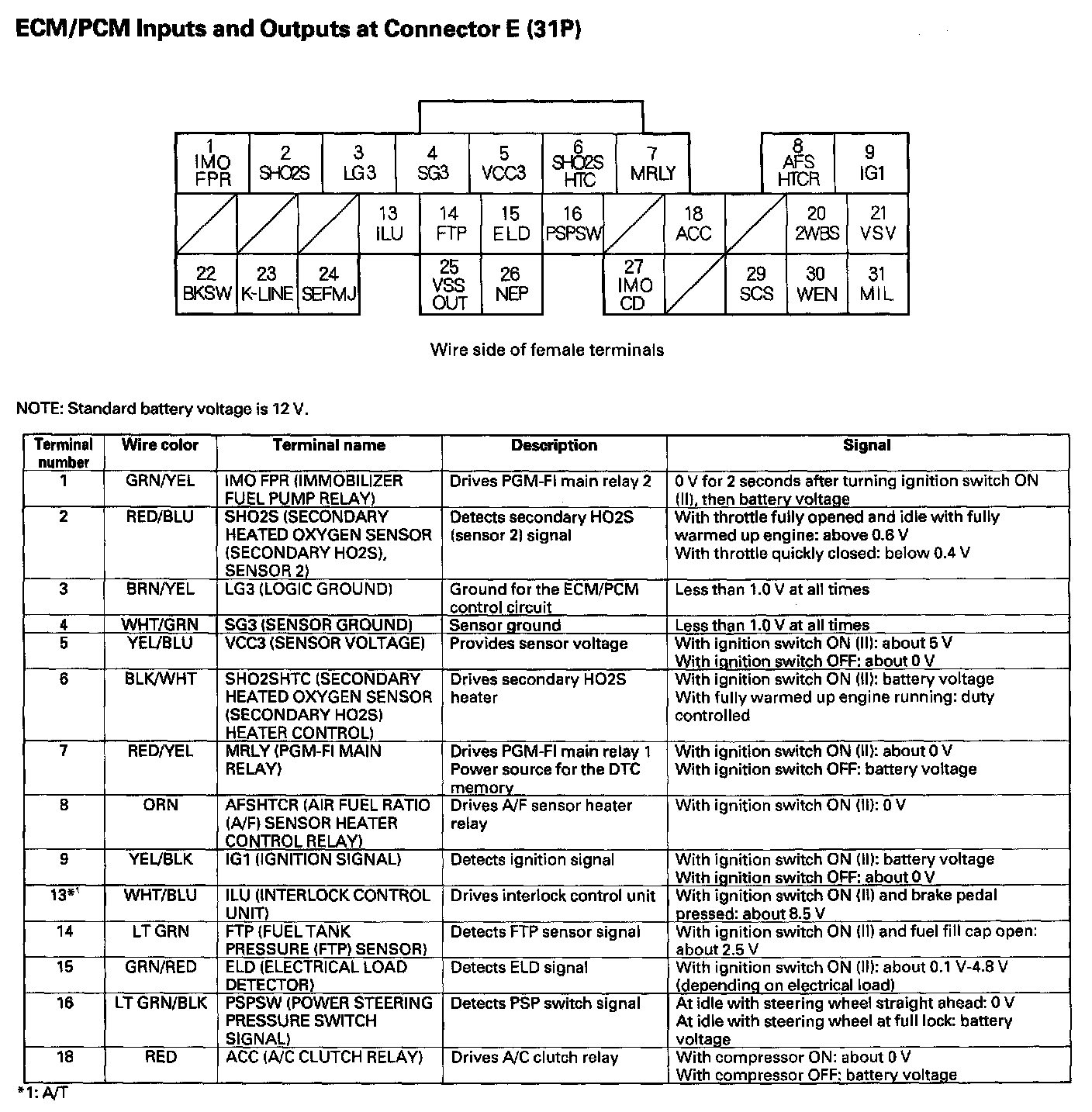

ECM/PCM Inputs and Outputs at Connector E (31P):

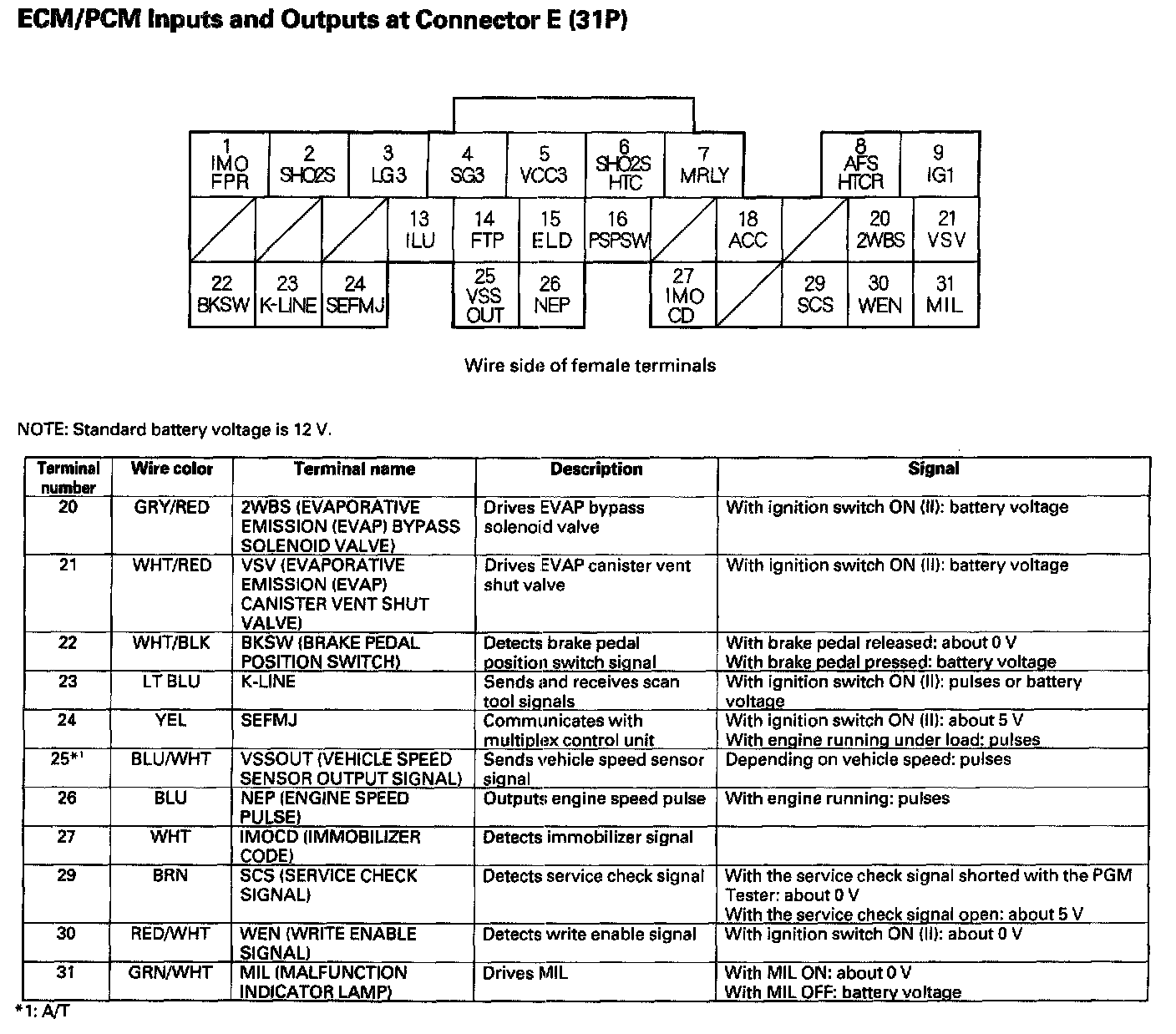

ECM/PCM Inputs and Outputs at Connector E (31P):
