Power Mirror Switch: Testing and Inspection

Power Mirror Switch Test/Replacement

1. Remove the driver's door panel.




2. Disconnect the 13P connector (A) from the power mirror switch (B).

Mirror/Defogger Switch(Canada):

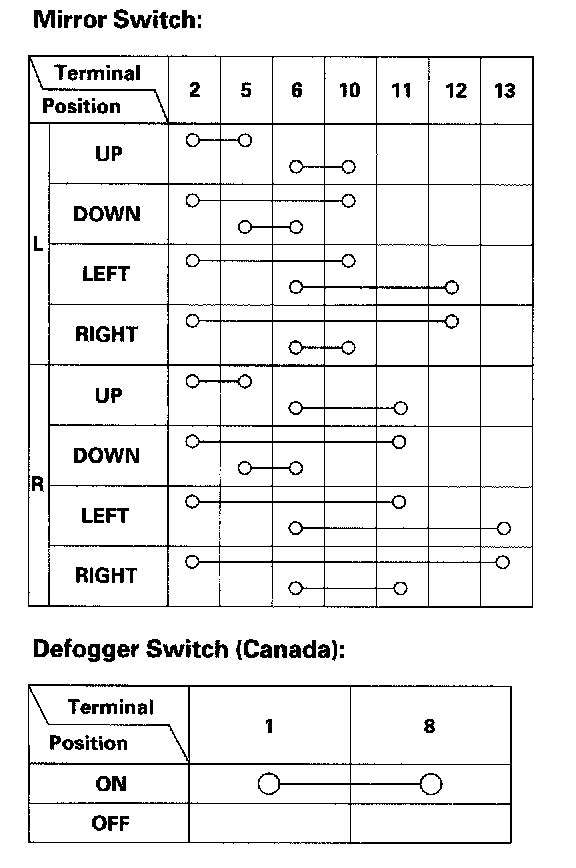

3. Check for continuity between the terminals in each switch position according to the table.
4. If the continuity is not as specified, replace the switch.
