Diagram Set 118
>>
118-0 to 118-3
118-0 to 118-3

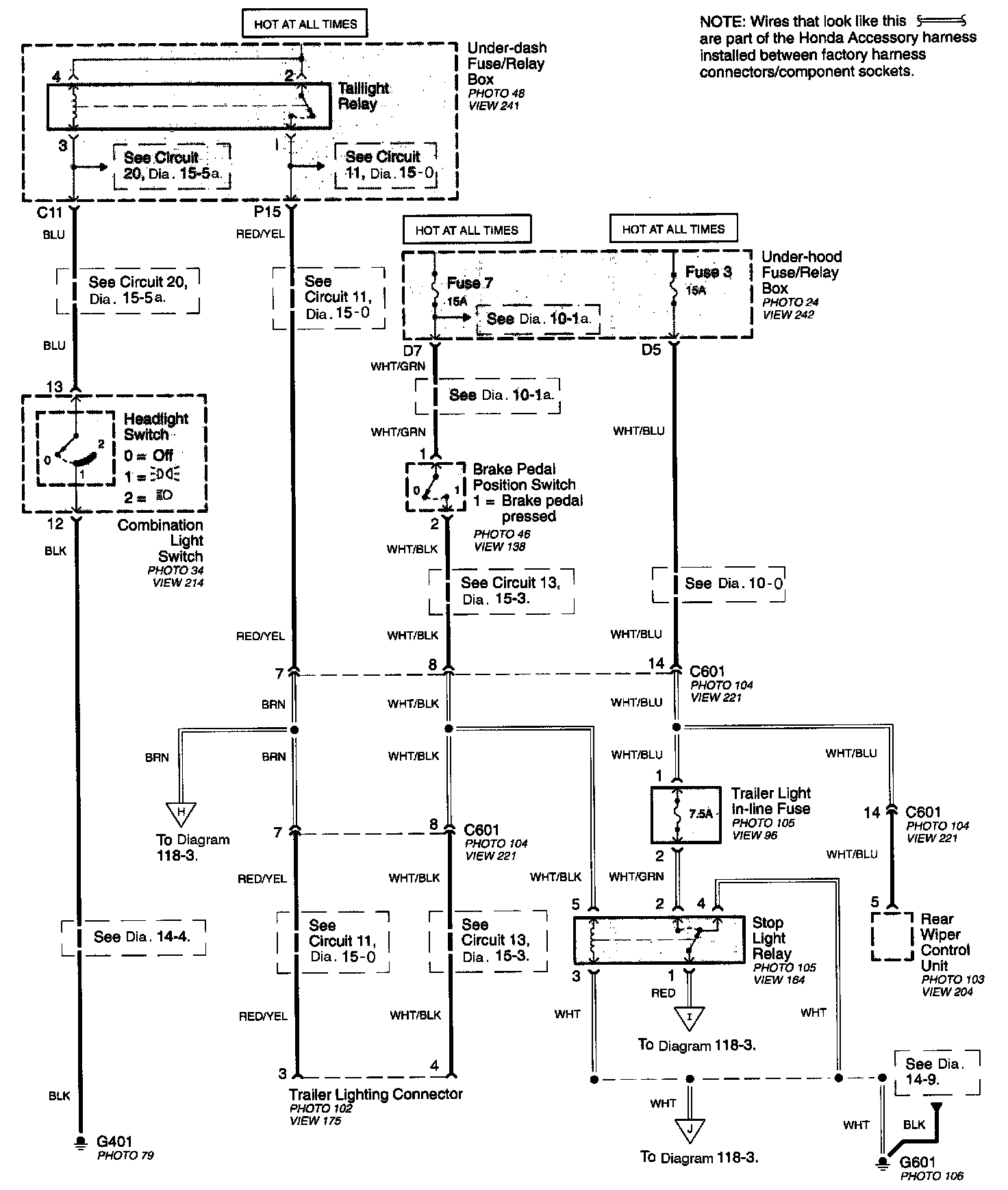

Diagram 118-0 (Honda Accessory):
Diagram 118-1 (Honda Accessory):
Diagram 118-2 (Honda Accessory):
Diagram 118-3 (Honda Accessory):
