150-3 to 150-6

Diagram 150-3 (LX):

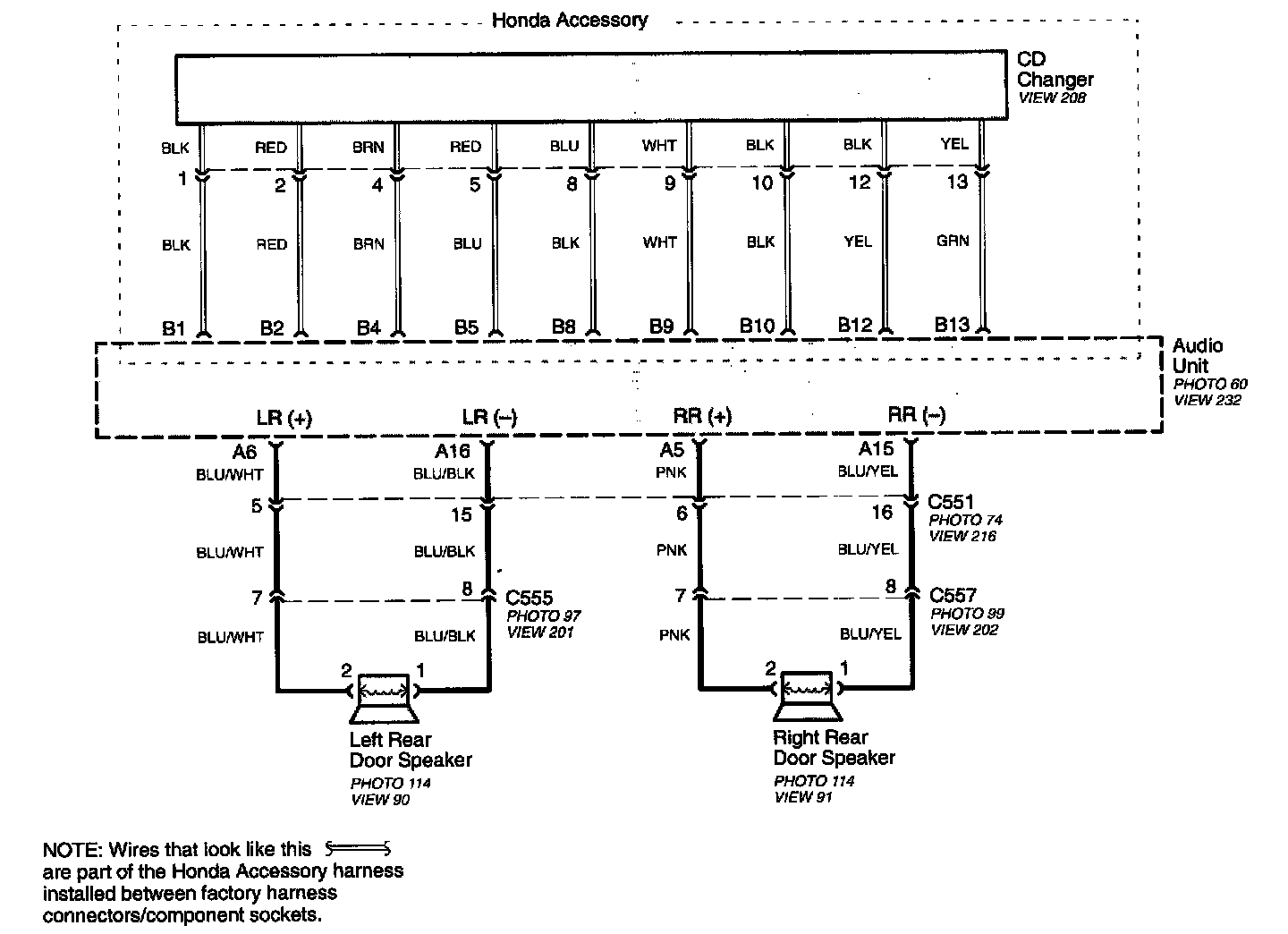

Diagram 150-4 (Honda Accessory):



Diagram 150-5 (Honda Accessory):
