Engine Compartment Wire Harness (Left branch)

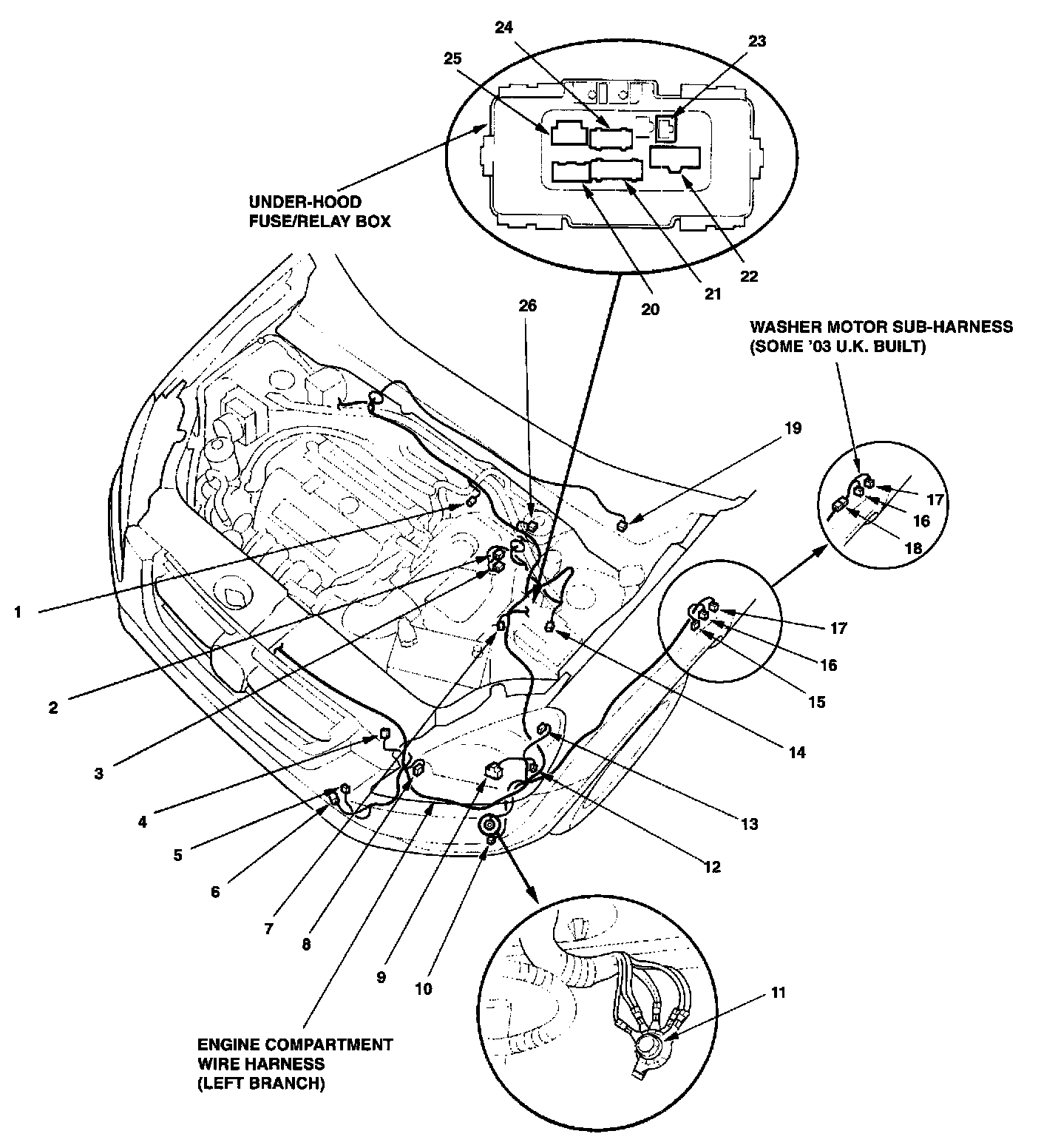

Harness Location View:

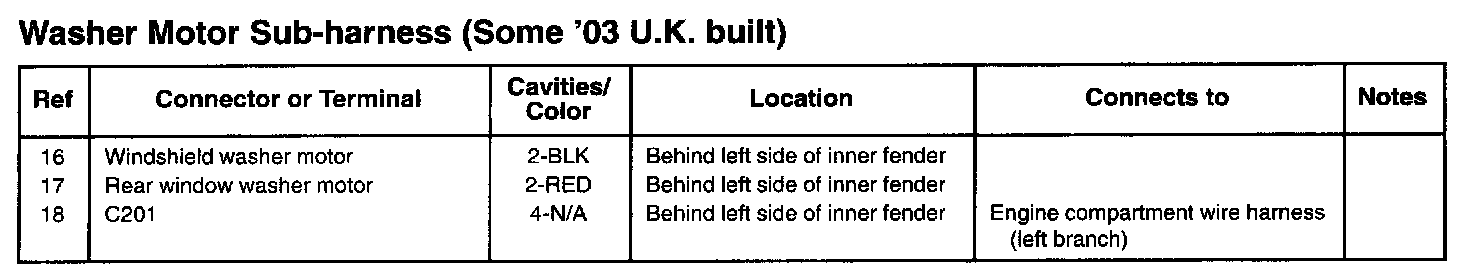

Washer Motor Sub-harness (Some 03 U.K. Built):
