Horn: Service and Repair

Horn Test/Replacement

1. Remove the front bumper.




2. Disconnect the 1P connector (A), and remove the horn (B).

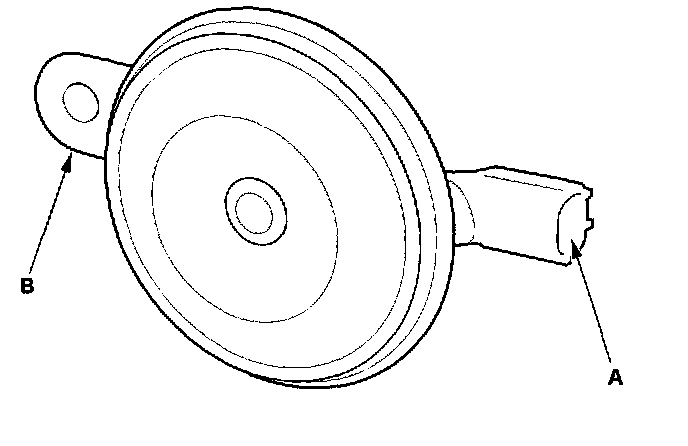

3. Test the horn by connecting battery power 10 the terminal (A) and ground to the bracket (B). The horn should sound.
