Home >> Honda >> 2003 >> CR-V 4WD L4-2.4L >> Repair and Diagnosis >> Transmission and Drivetrain >> Transmission Control Systems >> Diagrams >> Electrical Diagrams >> Circuit Diagrams

Circuit Diagrams

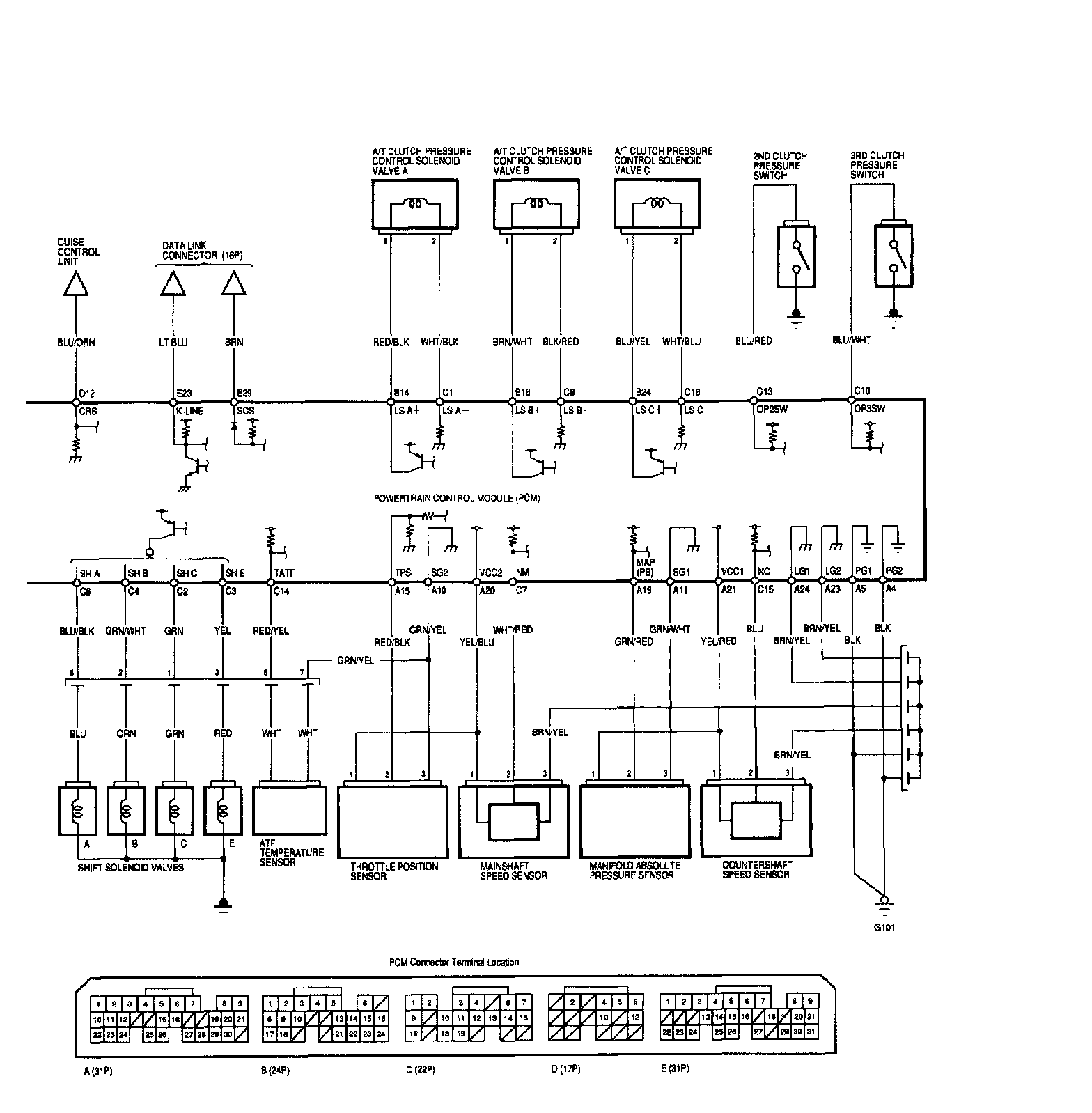

Circuit Diagram-PCM A/T Control System






PCM Electrical Connections
