Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
2003
>>
Civic L4-1668cc 1.7L SOHC (VTEC-E) MFI
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>
Flow of Diagnosis
Flow of Diagnosis

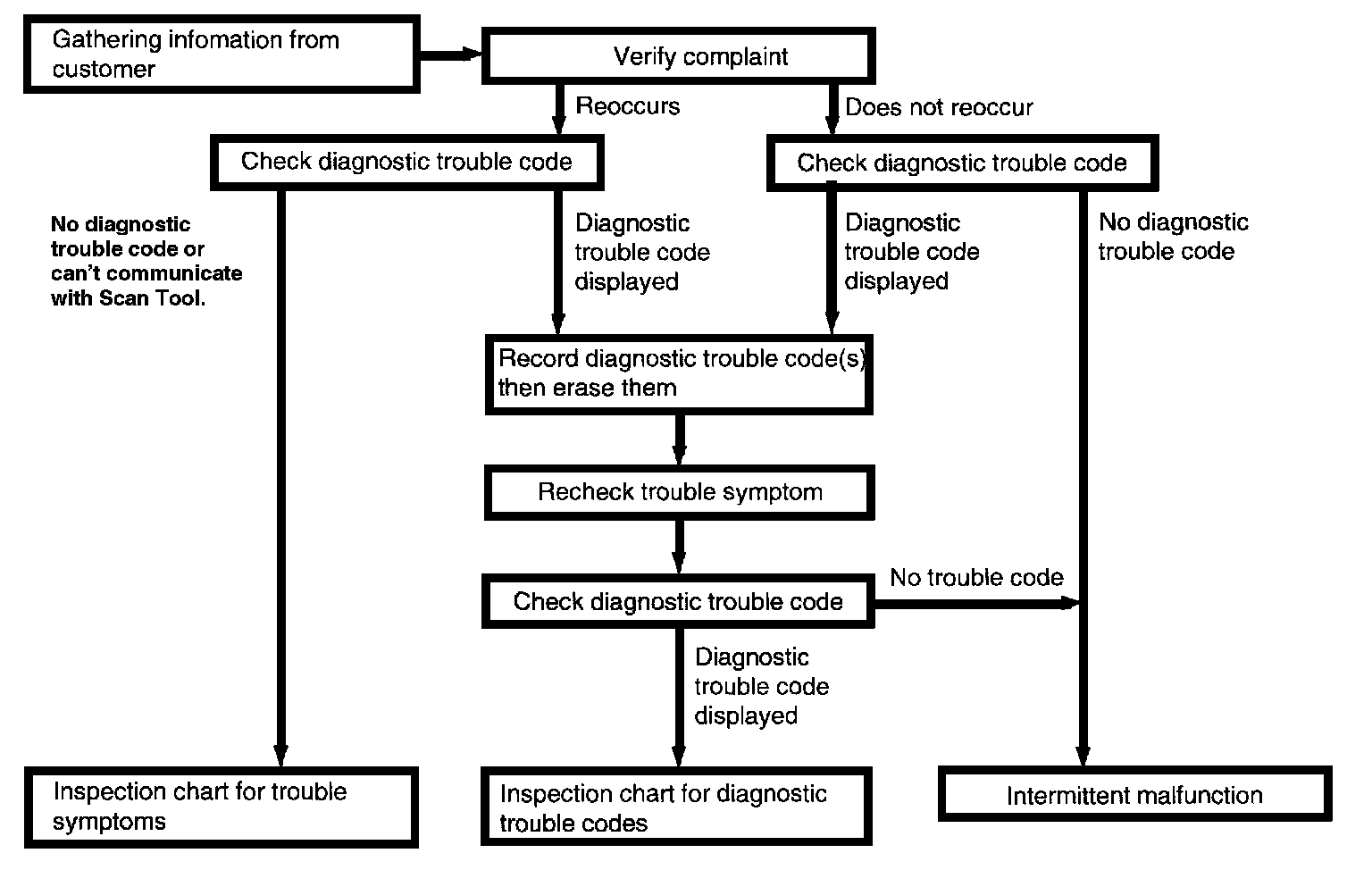

DIAGNOSIS FLOW CHART
