Campaign - ECM Update For DTC P1420/P2000 Detect

11-043

February 7, 2012

Applies To:
2003-05 Civic Hybrid ULEV (KA) - Check the iN VIN status for eligibility

Product Update: ECM Update to Improve DTC P1420 and P2000 Detection Threshold
(Supersedes 11-043, dated August 17, 2011, to revise the information marked by asterisks).

*REVISION SUMMARY

Under WARRANTY CLAIM INFORMATION, the flat rate time was changed.*

BACKGROUND

When the NOx adsorptive catalytic converter is hot, the PGM-FI software can misinterpret the signal from the secondary heated oxygen sensor, and may incorrectly indicate that the catalytic converter is deteriorated. The software update improves the accuracy of the catalyst deterioration detection.

NOTE:
American Honda is also extending the warranty on the secondary and third heated oxygen sensors. For more information, refer to Service Bulletin 11-044 Warranty Extension: Secondary and Third Heated Oxygen Sensors.

CUSTOMER NOTIFICATION





All owners of affected vehicles will be sent a notification of this product update. An example of the customer notification is at the end of this service bulletin.

Do an iN VIN status inquiry to make sure the vehicle is shown as eligible.

In addition, check for a punch mark below the fifth character of the engine compartment VIN. A punch mark in that location means this product update has already been completed.

Some vehicles affected by this campaign may be in your used vehicle inventory. Repair these vehicles before they are sold.

Should a dealership sell an unrepaired vehicle that subsequently causes an injury or damage because of the recalled item, the dealership will be solely responsible to the damaged party, and will be required to defend and indemnify American Honda for any resulting claims. To see if a vehicle in inventory is affected by this campaign, do a VIN status inquiry before selling it.

CORRECTIVE ACTION

Update the PGM-FI software.

SOFTWARE INFORMATION

HDS Software Version: 3.001.009 or later HDS Control Module (CM) Update:

Database Update 27-JUL-2011 or later

NOTE:
To avoid an incorrect repair that would not be covered under warranty, use the software version listed above or a later version.

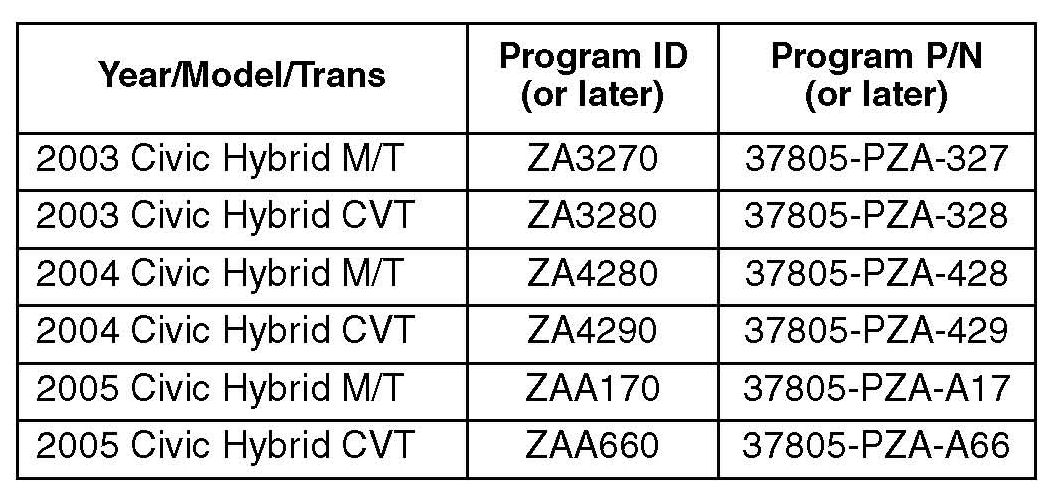

The updated PGM-FI software program IDs and P/Ns are listed. If the HDS or MVCI is loaded with the latest software, and it displays No Update Needed during the update, the software for this service bulletin is already installed.

WARRANTY CLAIM INFORMATION

NOTE:
Do not submit a warranty claim for 2003-05 Civic Hybrid PZEV (KL) vehicles. These models are not affected by this product update.

Operation Number: 1255A2

*Flat Rate Time: 0.3 hour*

Failed Part: P/N 37820-PZA-317

Defect Code: 5LN00

Symptom Code: R8300

Skill Level: Repair Technician

REPAIR PROCEDURE

1. Update the PGM-FI software. Refer to Service Bulletin 01-023, Updating Control Units/Modules.





2. Center-punch a completion mark below the fifth character of the engine compartment VIN:

3. For California Residents Only: Fill out a Vehicle Emissions Recall - Proof of Correction certificate, and use R83 as the recall number. Give the certificate to your customer, and advise him or her to keep it as proof that the product update was completed. Your customer will need to submit the certificate to the DMV only if the DMV requests it. If you need more certificates, use reorder number Y0657.
