ECM/PCM Electrical Connections

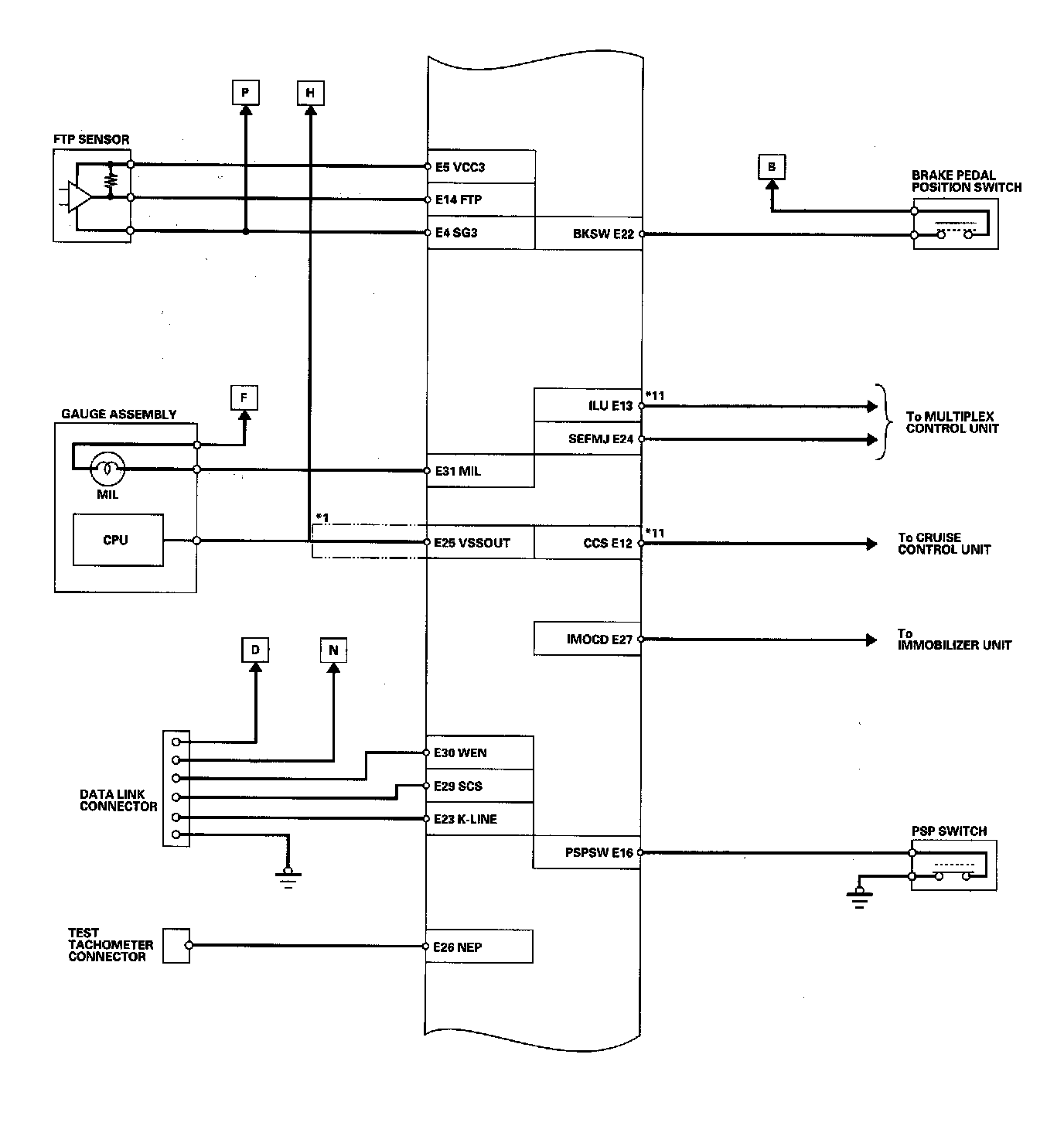

Diagram 11-16:
Diagram 11-17:
Diagram 11-18:
Diagram 11-19:
Diagram 11-20 (with CVT):
Diagram 11-21 (with A/T):
