Continuously Variable Transmission

Park Pin Switch Test
1. Remove the center console panel and center console.

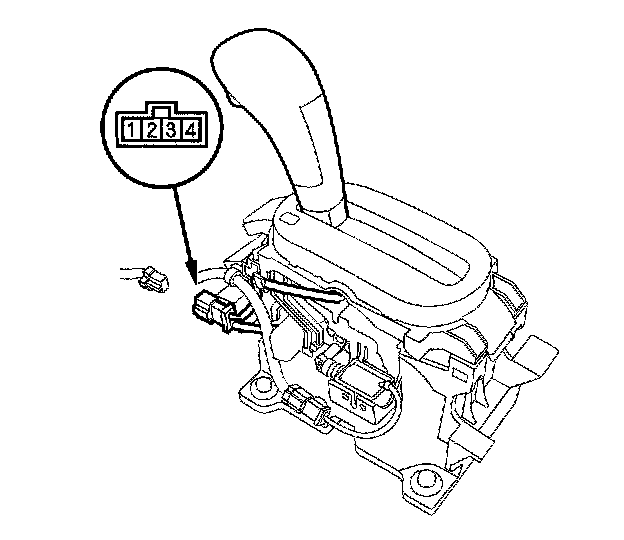

2. Disconnect the park pin switch connector (4P).
3. Shift to the P position, then check for continuity between the No. 3 and No. 4 terminals. There should be no continuity.
4. Shift out of the P position, and check for continuity between terminals No. 3 and No. 4. There should be no continuity.
5. If the park pin switch is faulty, replace it.
