Vehicles Without Navigation

NOTE





1. In the HFL update tool, highlight "PartNumberFix.update" and then click OK.





2. The PartNumberFix update begins. Allow several minutes for the programming to complete. The blue bars indicate the programming status and progression.





3. In the HFL update tool, a pop-up window alerts you when the PartNumberFix update is finalizing, and then another pop-up informs you that the update has completed.





4. In the HFL update tool, click OK when the pop-up window indicates the update is complete.





5. The HFL update tool will indicate the update is complete, and automatically disconnects the Bluetooth connection from the HFL control unit. Close the HFL update tool by clicking on the "X" in the upper right-hand corner.





6. The vehicle's display screen indicates the status of the PartNumberFix update.

7. Do steps 8 through 19 to verify the PartNumberFix update was successful.

8. Turn the ignition switch OFF, then turn the ignition back ON.

NOTE:
The i-MID must be on the audio screen.





9. Press and hold the audio preset No. 1 button, then press and hold the audio preset No. 6 button. Finally, press and hold the audio power button. Release the buttons once the audio unit enters the self-diagnosis mode and the "A-Diag DIAG" screen appears.

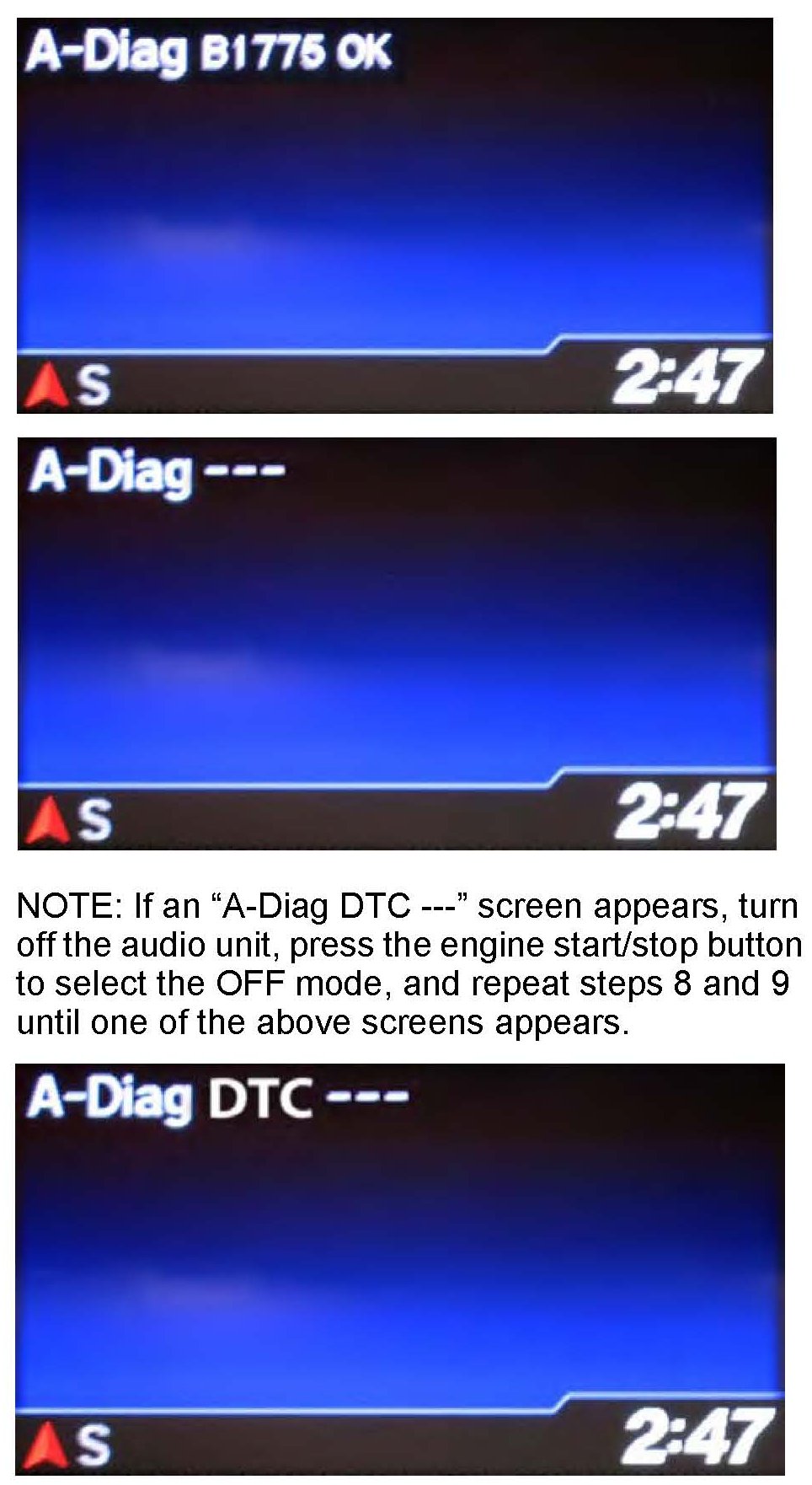

10. Press and hold the PHONE button for at least 5 seconds to enter the HFL diagnostic mode. One of the following screens appears: "A-Diag XXXXX OK" or "A-Diag ---."





11. Press the audio preset No. 2 button several times until the A-Diag UPDATE" screen appears on the i-MID.





12. On the HDS laptop, double-click the HFL Control Unit Update icon to launch the Honda HFL (HFT) Control Unit Update Tool (HFL update tool).

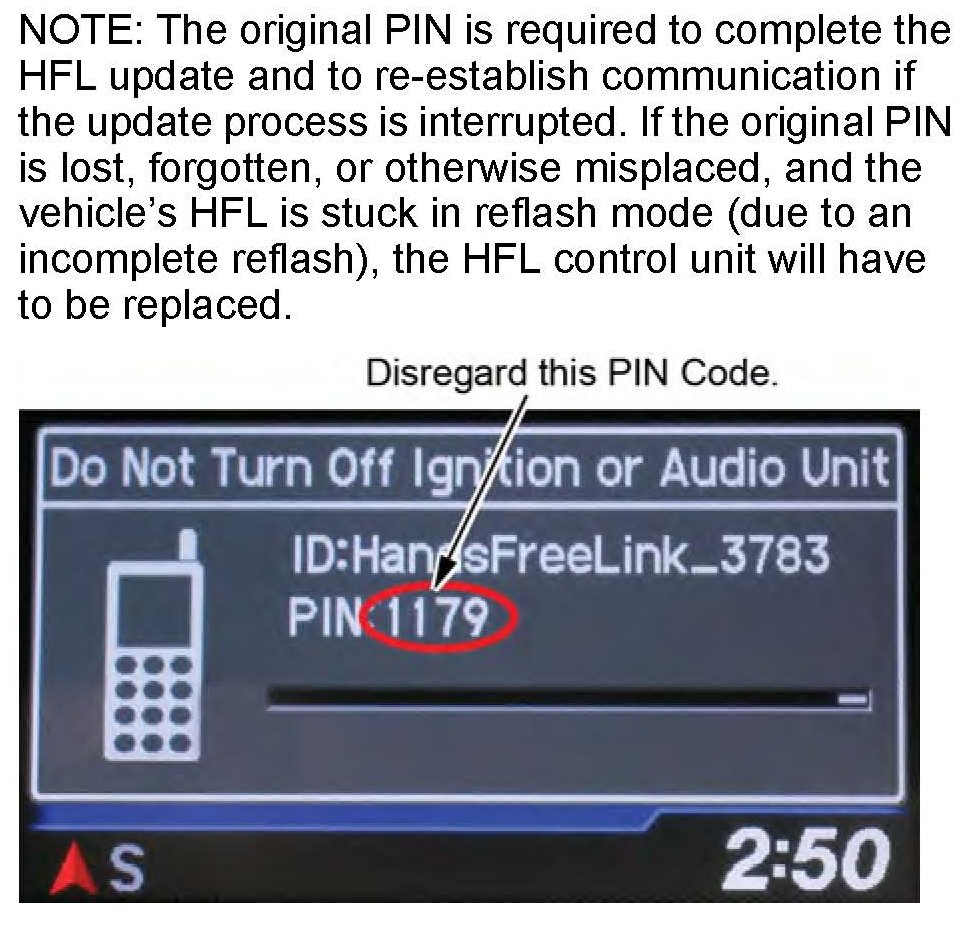

13. Press the selector knob on the audio unit to change the HFL update screen. A different PIN code is displayed; ignore it. You will use the PIN you wrote down in step 7, HFL CONTROL UNIT UPDATE PROCEDURE - CR-V, Vehicles without Navigation.





14. In the HFL update tool, click on the Bluetooth icon in the upper left-hand corner to prepare the HFL update tool for the pairing process with the vehicle's HFL control unit.





15. In the HFL update tool, the "Pair with HFL" window pops up. Wait a few seconds for the display to show All Detected Bluetooth Devices." If no devices are found after 30 seconds, click on Refresh.

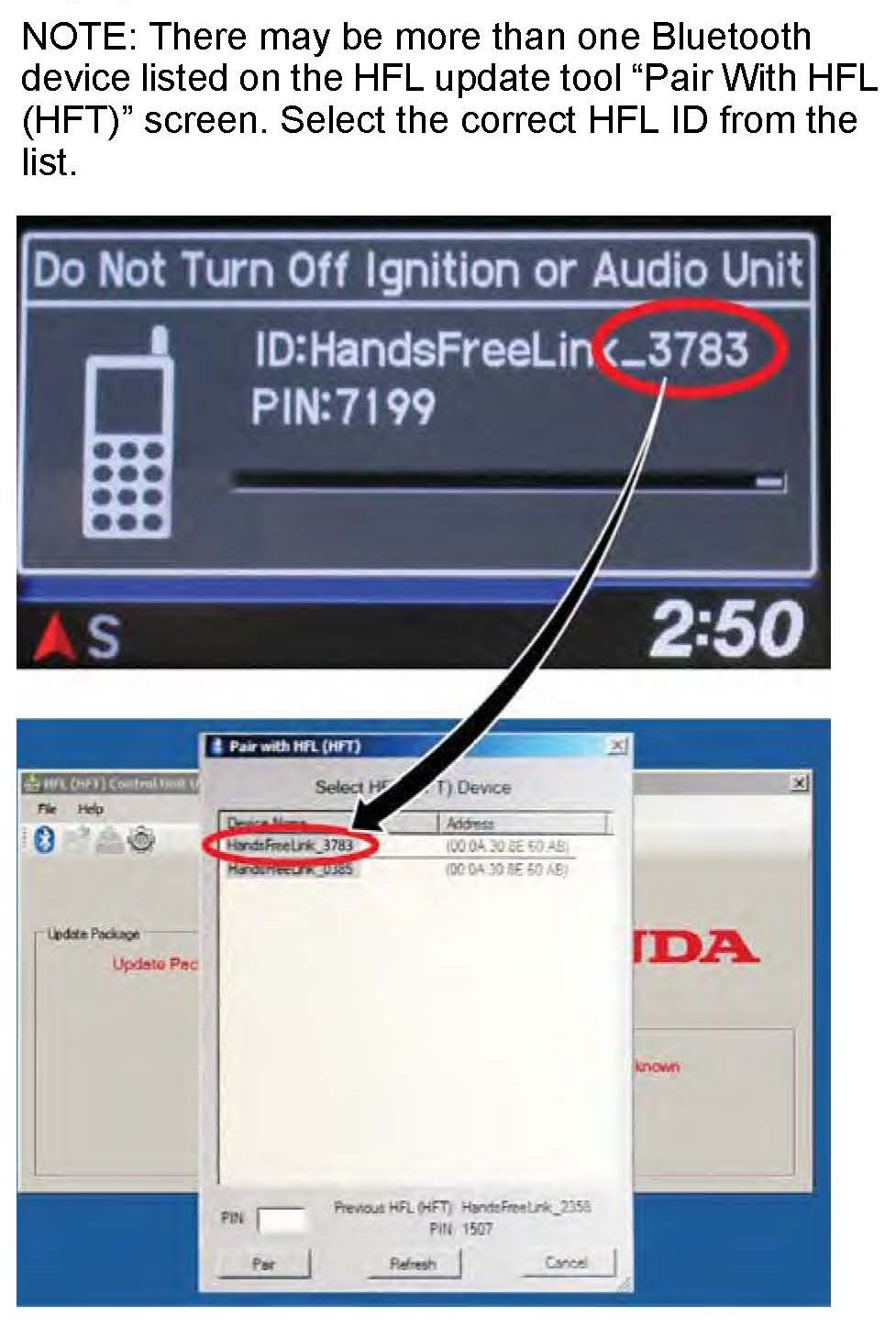

16. In the HFL update tool, select the correct Bluetooth device (if more than one appears) that matches the HandsFreeLink ID code shown in the vehicle's display screen.





17. In the HFL update tool, enter the original 4-digit PIN you wrote down in HFL CONTROL UNIT UPDATE PROCEDURE, Vehicles without Navigation, step 7, into the lower left corner of the popup window. Click Pair to start the pairing process.





18. Wait for the HFL update tool to complete the Bluetooth pairing process.





19. In the HFL update tool, the "Open Update Package" window pops up when the Bluetooth pairing process is complete. The HFL update tool automatically determines which version of the HFL software is present. The compatible updates will be displayed in the HFL update tool.

^ If you see: "01.XX.XXX_(TO)_01.XX.XXX update," the PartNumberFix update is complete. You must now update the HFL control unit software. Go to HFL CONTROL UNIT UPDATE PROCEDURE - CR-V, Vehicles without Navigation.

^ If you see: "PartNumberFix update," the PartNumberFix update is not complete, go to step 1 to repeat the part number fix update procedure.
