Sunroof / Moonroof: Adjustments

Glass Height Adjustment




The roof panel (A) should be even with the glass weatherstrip (B), to within 2+0.5/-1 mm (0.08+0.02/-0.04 in) at the center of the glass opening. If not, make the following adjustment:

1. Remove the skylight.

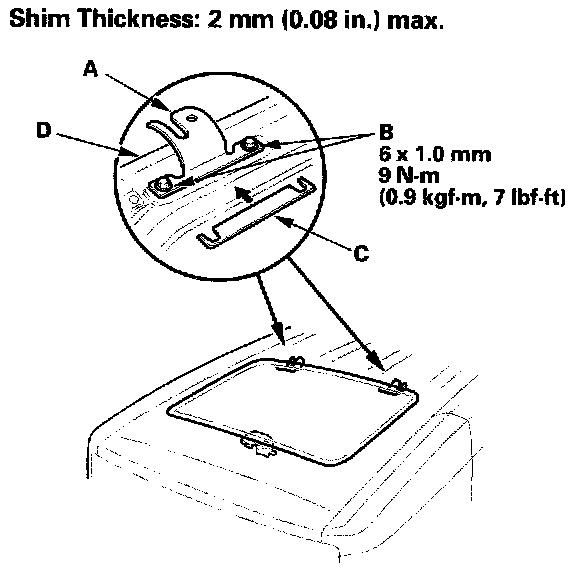

2. For front height: On both glass brackets (A), using a T30 Torx bit, loosen the bolts (B), and install a shim (C) between the glass frame (D) and glass bracket.




3. For rear height: On the glass latch (A), loosen the nuts (B), and instal a shim (C) between the glass frame (D) and glass latch.
4. Install the skylight.
5. Check that the latch handle works smoothly.
6. Lock the skylight securely, and recheck the glass height alignment.
