Brake Pedal Assy: Service and Repair

Replacement

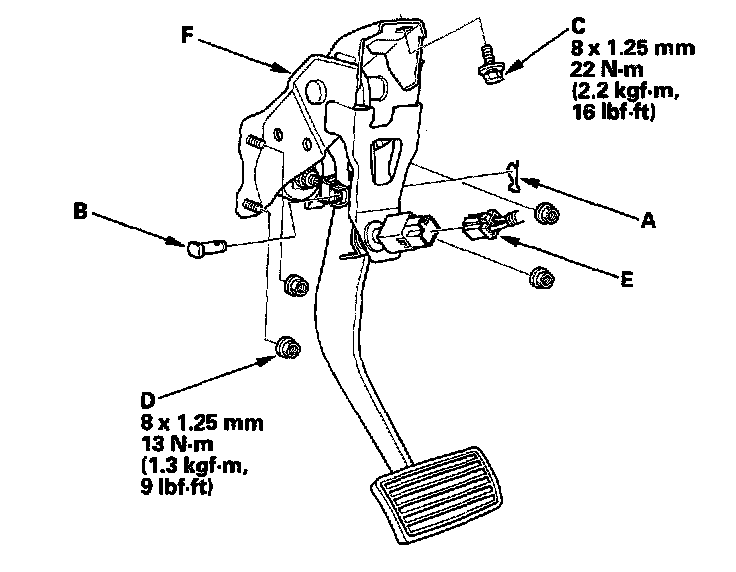

1. Remove the clip (A) and sin (B).
2. Remove the brake pedal brakes mounting bolt (C) and brake booster mounting nuts (D).
3. Disconnect the brake pedal position switch connector (E).
4. Remove the brake pedal with bracket (F).
5. Install in the reverse order of removal.
6. Perform the brake pedal and brake pedal position switch adjustment.
