Center Panel

Center Panel Removal/Installation

Special Tools Required
KTC trim tool set SOJATP2014

NOTE:
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
- Take care not to scratch the dashboard and related parts.

1. Remove these items:
- Center lower cover
- Shift lever trim

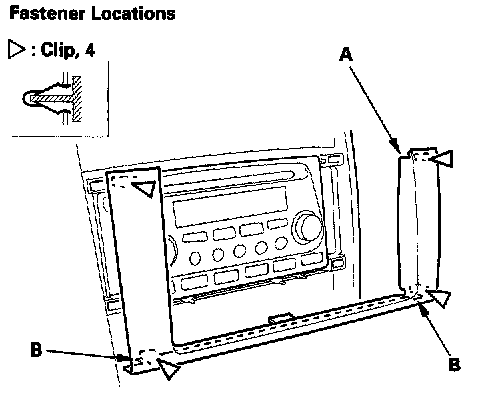

2. Release the lower clips in the radio panel (A) by putting a hook-snapped tool into the notches (B) and pulling out carefully. Pull out on the radio panel to release the upper clips.




3. Pull on the center panel (A) to release the clips, then disconnect the heater control unit connector (B).
4. Install the panel in the reverse order of removal, and note these items:
- Make sure the heater control unit connector is plugged in properly.
- Push the clips into place securely.
